TURNSIGNAL LAMP (E2, E15, E17, E18, E22)

TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

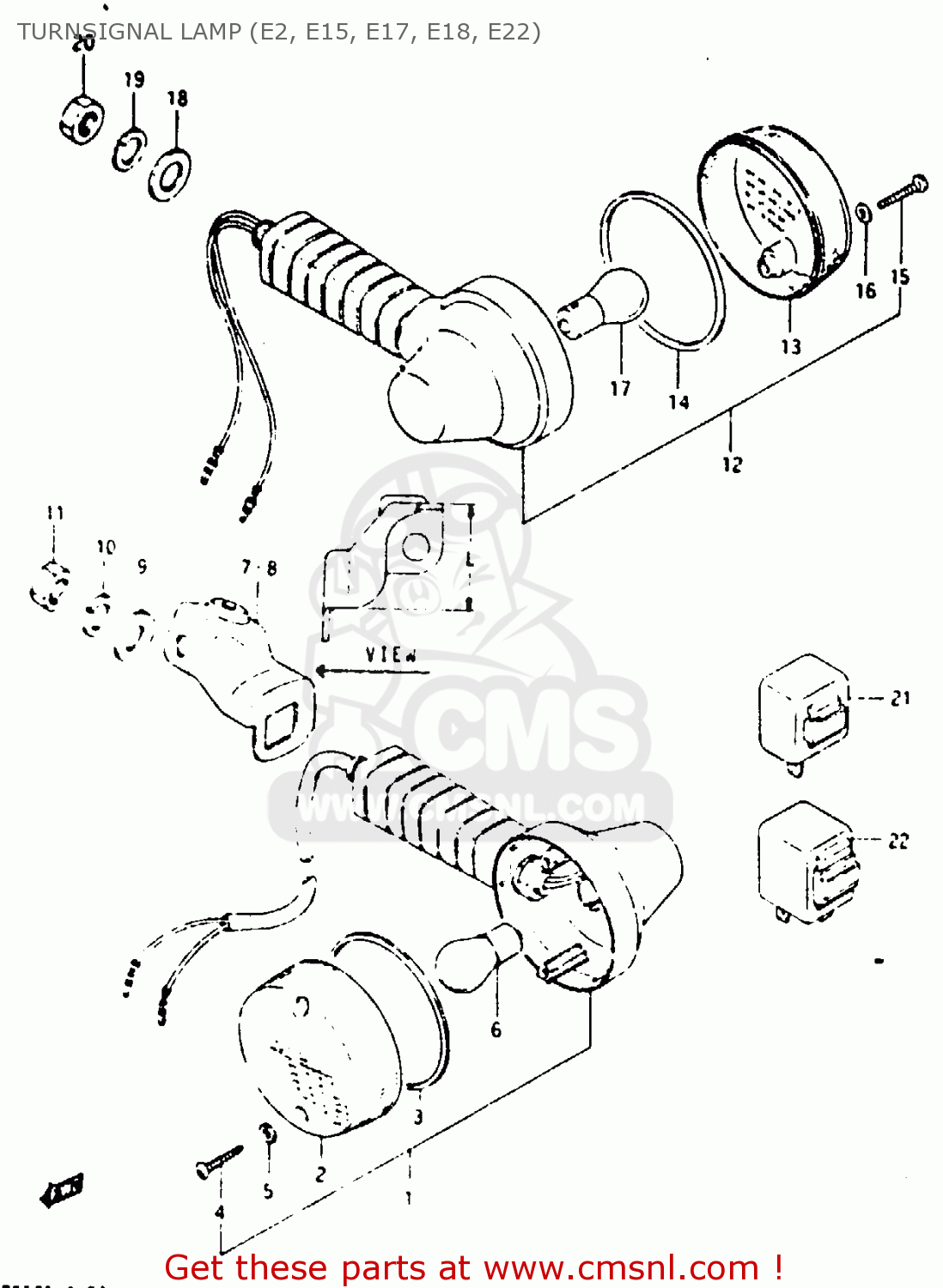

Turnsignal lamp (e2, e15, e17, e18, e22) diagram TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

TURNSIGNAL LAMP (E2, E15, E17, E18, E22) TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
TURNSIGNAL LAMP (E2, E15, E17, E18, E22) TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
TURNSIGNAL LAMP (E2, E15, E17, E18, E22) TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3560148780999
ref: 1-1
E2, E15, E17, E18
LAMP ASSY, FRONT TURNSIGNAL
3560148780999
€ 54.50
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
3561248530
ref: 2-1
E2, E15, E17, E18
LENS
3561248530
€ 7.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4-1
0321104258
ref: 4-1
E2, E15, E17, E18
SCREW TAPP.
0321104258
€ 2.00
4-2
NOTUSED
ref: 4-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112045
ref: 6
BULB(12V21W)
0947112045
€ 5.00
7-1
3567101A01
ref: 7-1
L:32.5
BRACKET, FRONT RH
3567101A01
€ 7.00
7-2
3567101A02
ref: 7-2
L:42
BRACKET, FRONT RH
3567101A02
€ 7.00
8-1
3568101A01
ref: 8-1
L:32.5
BRACKET, FRONT LH
3568101A01
€ 9.00
8-2
3568101A02
ref: 8-2
L:42
BRACKET, FRONT LH
3568101A02
€ 9.00
9
0916012048
ref: 9
WASHER (12.5X26X1.6)
0916012048
€ 2.00
10
0832121125
ref: 10
WASHER
€ 2.50
11
0831012125
ref: 11
NUT 12MM
€ 2.50
12-1
3560348781999
ref: 12-1
E2, E15, E17, E18
LAMP ASSY, REAR TURNSIGNAL
3560348781999
€ 53.50
12-2
NOTUSED
ref: 12-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13-1
3561248510
ref: 13-1
E2, E15, E17, E18
LENS
3561248510
€ 10.50
13-2
NOTUSED
ref: 13-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
3561328620
ref: 14
GASKET (NAS)
3561328620
€ 7.00
15-1
0321104258
ref: 15-1
E2, E15, E17, E18
SCREW TAPP.
0321104258
€ 2.00
15-2
NOTUSED
ref: 15-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
3562743010
ref: 16
GASKET (NAS)
3562743010
€ 2.00
17
0947112045
ref: 17
BULB(12V21W)
0947112045
€ 5.00
18
0916012048
ref: 18
WASHER (12.5X26X1.6)
0916012048
€ 2.00
19
0832121125
ref: 19
WASHER
€ 2.50
20-1
0831012125
ref: 20-1
NUT 12MM
€ 2.50
20-2
NOTUSED
ref: 20-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
3861031310
ref: 21
E2, E4, E17, E18
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22
NOTUSED
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
