REAR COMBINATION LAMP (E2, E15, E17, E18, E22)

TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

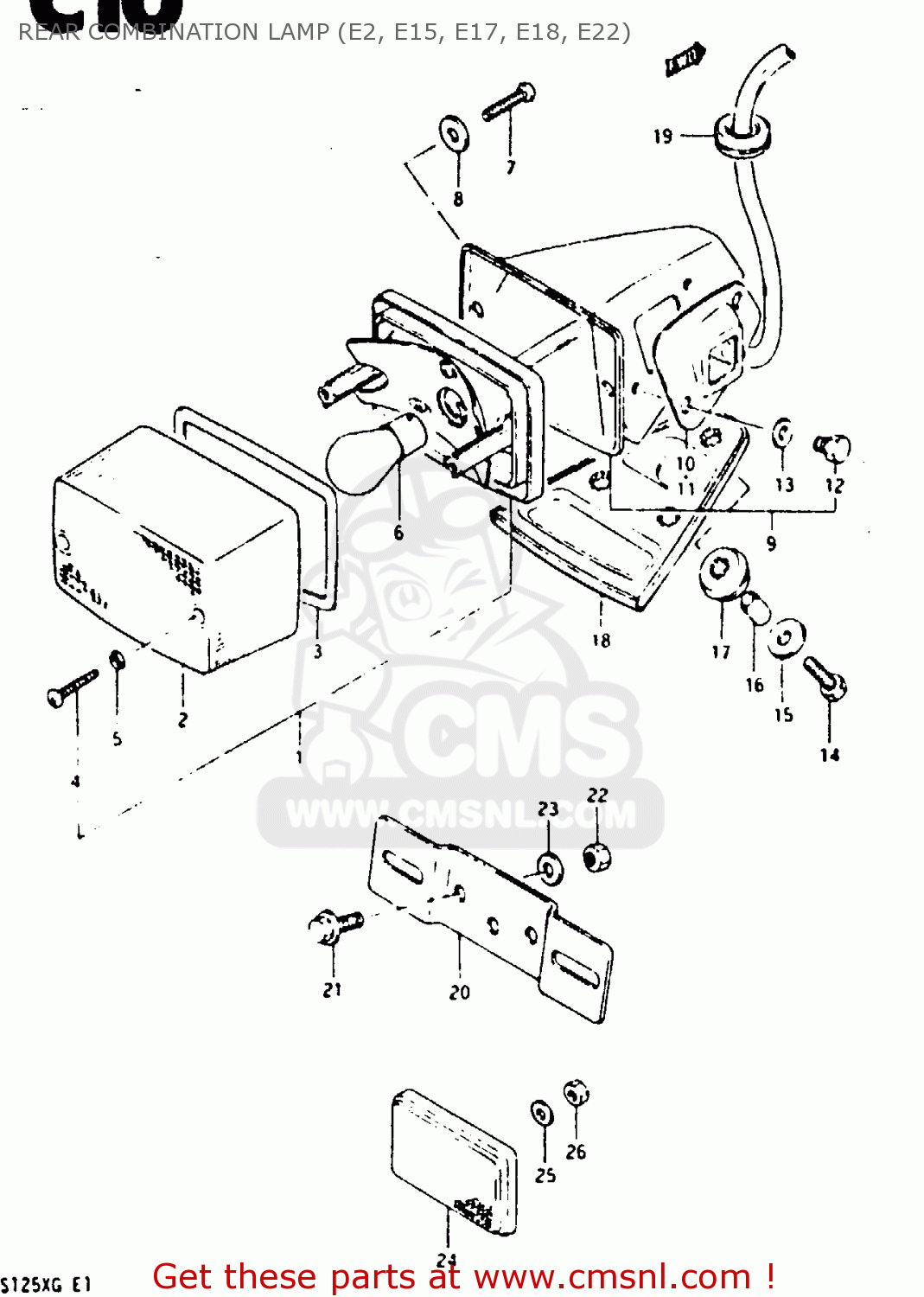

Rear combination lamp (e2, e15, e17, e18, e22) diagram TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

REAR COMBINATION LAMP (E2, E15, E17, E18, E22) TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
REAR COMBINATION LAMP (E2, E15, E17, E18, E22) TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
REAR COMBINATION LAMP (E2, E15, E17, E18, E22) TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3572001A20
ref: 1-1
E2, E15, E17, E18
LAMP UNIT, REAR COMBINATION
3572001A20
€ 58.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
3571213600
ref: 2
LENS,LAMP RR
3571213600
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
3571313600
€ 3.50
4
0321104208
ref: 4
SCREW
0321104208
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112046
ref: 6
BULB(12V21/5W)
0947112046
€ 1.50
7
0321105165
ref: 7
SCREW
€ 7.50
8
0832211055
ref: 8
WASHER
€ 2.00
9-1
3573001A20
ref: 9-1
E2, E17, E18, E22
BRACKET UNIT
3573001A20
€ 64.50
9-2
NOTUSED
ref: 9-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10-1
3571601A20
ref: 10-1
E2, E17, E18, E22
PLATE, RH
3571601A20
€ 6.50
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11-1
3573601A20
ref: 11-1
E2, E17, E18, E22
PLATE, LH
3573601A20
€ 6.50
11-2
NOTUSED
ref: 11-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12-1
0110706125
ref: 12-1
BOLT
€ 2.00
12-2
NOTUSED
ref: 12-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
0832221064
ref: 13
WASHER
0832221064
€ 2.00
14
0110706258
ref: 14
BOLT
€ 2.00
15
0916006027
ref: 15
WASHER (6.5X20X1.2)
0916006027
€ 2.00
16
0918006087
ref: 16
SPACER (6.4X9X15.5)
0918006087
€ 4.00
17
0932009018
ref: 17
CUSHION
0932009018
€ 2.00
18
3576501A00
ref: 18
CUSHION
3576501A00
€ 17.00
19
0930807011
ref: 19
GROMMET
0930807011
€ 3.50
20
3592736510
ref: 20
BRACKET,PLATE LICENSE
3592736510
€ 8.50
21
0151706205
ref: 21
BOLT
€ 2.50
22
0831011066
ref: 22
NUT
€ 2.00
23
0916006027
ref: 23
WASHER (6.5X20X1.2)
0916006027
€ 2.00
24-1
3597017300
ref: 24-1
RR35990
REFLEX REFLECTOR,RR
3597017300
€ 16.50
24-2
3597001A10
ref: 24-2
RR016
REFLEX REFLECTOR,RR
3597001A10
€ 85.00
25
0832221058
ref: 25
WASHER
€ 2.50
26
0831011058
ref: 26
NUT
0831011058
€ 2.50
