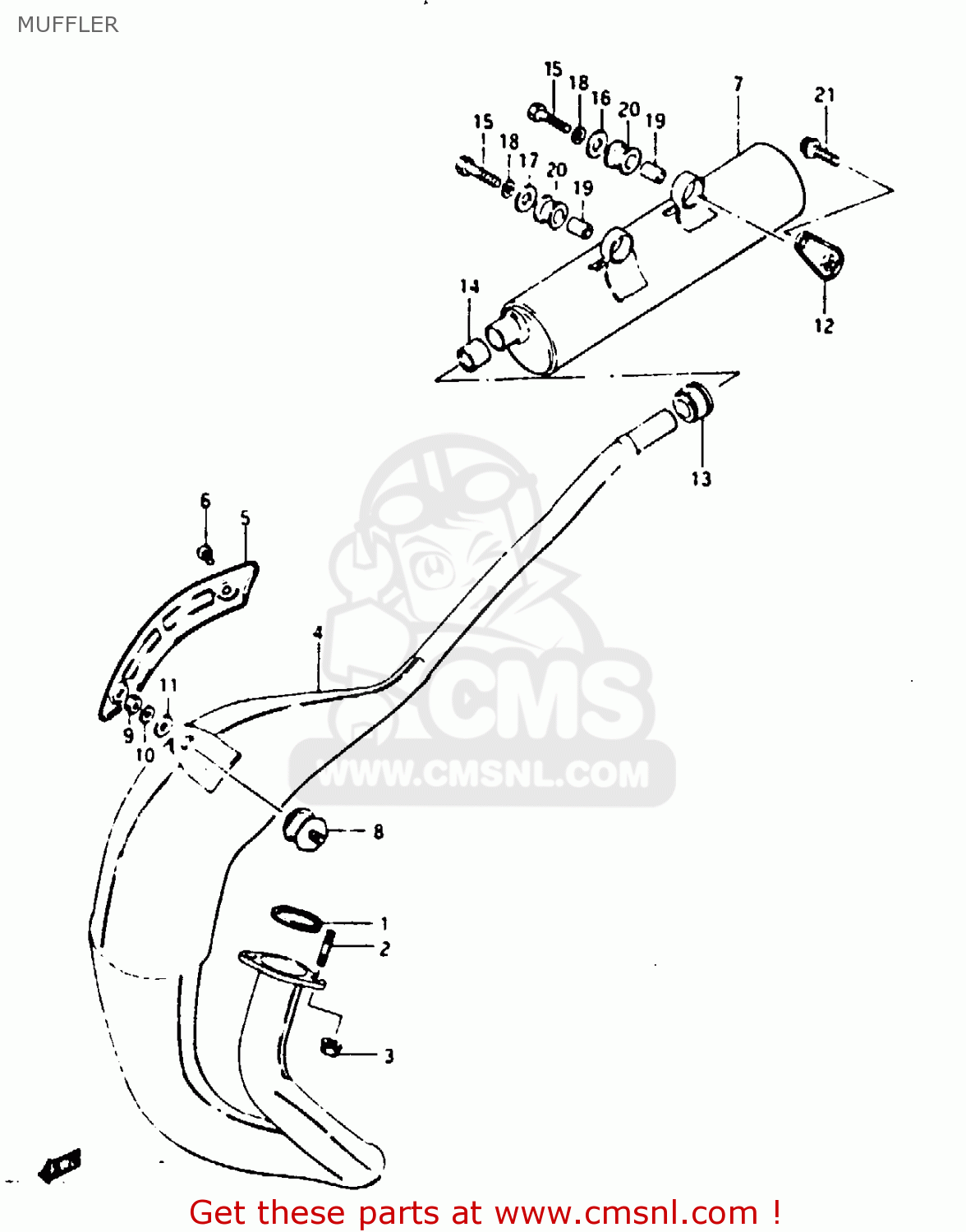

MUFFLER

ref

part #

description

quantity

1

1418111020
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0142108205
ref: 2

STUD BOLT

€ 2.00

3

0836135085
ref: 3

NUT

€ 1.50

4-1

NOTUSED
ref: 4-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4-2

1431001A02
ref: 4-2
E2, E15, E17, E18, E

MUFFLER, 1ST

€ 250.50

4-3

NOTUSED
ref: 4-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4-4

NOTUSED
ref: 4-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4-5

1431001A12
ref: 4-5
E21, TS125XUE/XUF/XU

MUFFLER, 1ST

€ 283.00

5

1478101A00
ref: 5

COVER,MUFFLER

€ 10.00

6

0214206085
ref: 6

SCREW

€ 1.50

7-1

1433001A01
ref: 7-1

MUFFLER, 2ND

€ 183.50

7-2

NOTUSED
ref: 7-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

1477001A00
ref: 8

DAMPER,MUFFLER SUPPORT

€ 16.00

9

0831012088
ref: 9

NUT

€ 2.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

0832211088
ref: 11

WASHER

€ 2.00

12

1447001A01
ref: 12

BRACKET, 2ND MUFFLER

€ 5.00

13

1477101A00
ref: 13

CONNECTOR,MUFFLER

€ 16.00

14

1477301A00
ref: 14

CONNECTOR

€ 17.50

15

0110708355
ref: 15

BOLT

€ 3.50

16

0916008057
ref: 16

WASHER (8.5X20X1.6)

€ 2.00

17

0832211084
ref: 17

WASHER

€ 1.50

18

0832121084
ref: 18

WASHER,LOCK,8.

€ 2.50

19

0918008102
ref: 19

SPACER (8.6X12X17.5)

€ 3.00

20

0932012026
ref: 20

CUSHION

€ 8.00

21

0712008165
ref: 21

BOLT

€ 3.00
