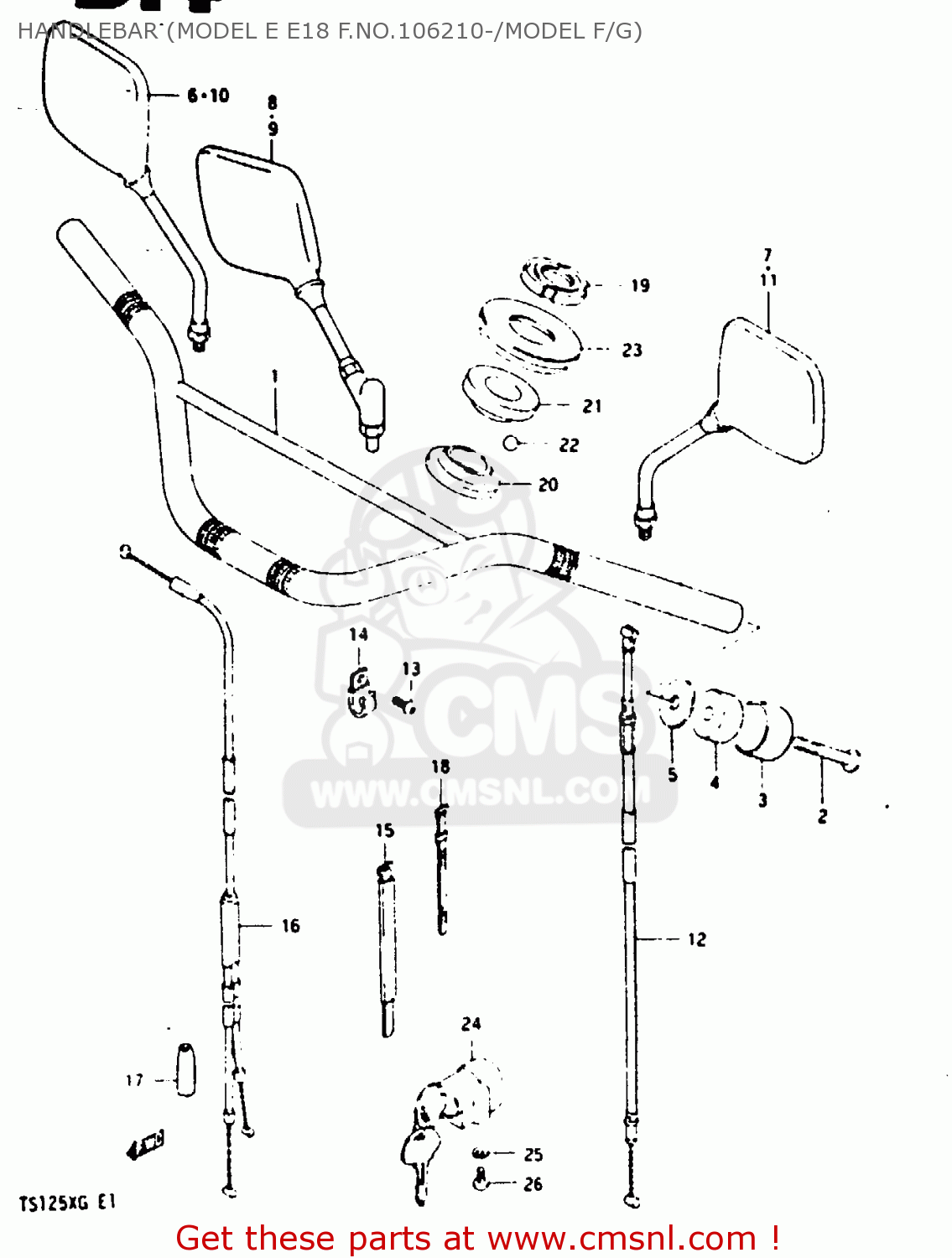

HANDLEBAR (MODEL E E18 F.NO.106210-/MODEL F/G)

ref

part #

description

quantity

1

5611001A0019T
ref: 1

HANDLEBAR (GOLD)

€ 55.00

2

0213206405
ref: 2

SCREW

€ 2.50

3

5627433400
ref: 3

CAP,HANDLE BALANCER

€ 43.00

4

5627133400
ref: 4

BALANCER,HANDLEBAR

€ 18.50

5

5627534400
ref: 5

SPACER,BALANCER

€ 2.50

6

NOTUSED
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5650010020
ref: 8
E2, E4, E21

MIRROR ASSEMBLY,REAR VIEW

€ 90.00

9

5660010020
ref: 9
E2, E4, E21

MIRROR ASSEMBLY,REAR VIEW

€ 92.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12-1

5821001A01
ref: 12-1
MODEL E

CABLE, CLUTCH

€ 27.00

12-2

5821001A03
ref: 12-2
MODEL F/G

CABLE ASSY,CLUTCH

€ 27.00

13

0211206108
ref: 13

SCREW

€ 1.50

14

0940309301
ref: 14

CLAMP

€ 8.50

15

0940725301
ref: 15

CLAMP(L:250)

€ 4.50

16-1

5830001A00
ref: 16-1
MODEL E

CABLE ASSY, THROTTLE

€ 31.00

16-2

5830001A01
ref: 16-2
MODEL F/G

CABLE ASSY, THROTTLE

€ 31.00

17

0928707002
ref: 17

SEAL,DUST(7X18X30)

€ 2.50

18

0940718301
ref: 18

CLAMP

€ 6.00

19

5163140200
ref: 19

NUT,STEERING STEM

€ 12.00

20

5161140200
ref: 20

RACE,STEERING,INNER,UPPER

€ 8.50

21

5162140200
ref: 21

RACE,STEERING,OUTER,UPPER

€ 17.00

22

0611108003
ref: 22

BALL

€ 1.50

23

5164340200
ref: 23

SEAL,STEERING UPR DUST

€ 7.50

24

5190030831
ref: 24

LOCK ASSY,STEERING

€ 30.00

25

0832121057
ref: 25

LOCK WASHER

€ 2.00

26

0211205128
ref: 26

SCREW

€ 2.50

all assemblies
