REAR BRAKE

TS125XU 1984 (E) UNITED KINGDOM (E02)

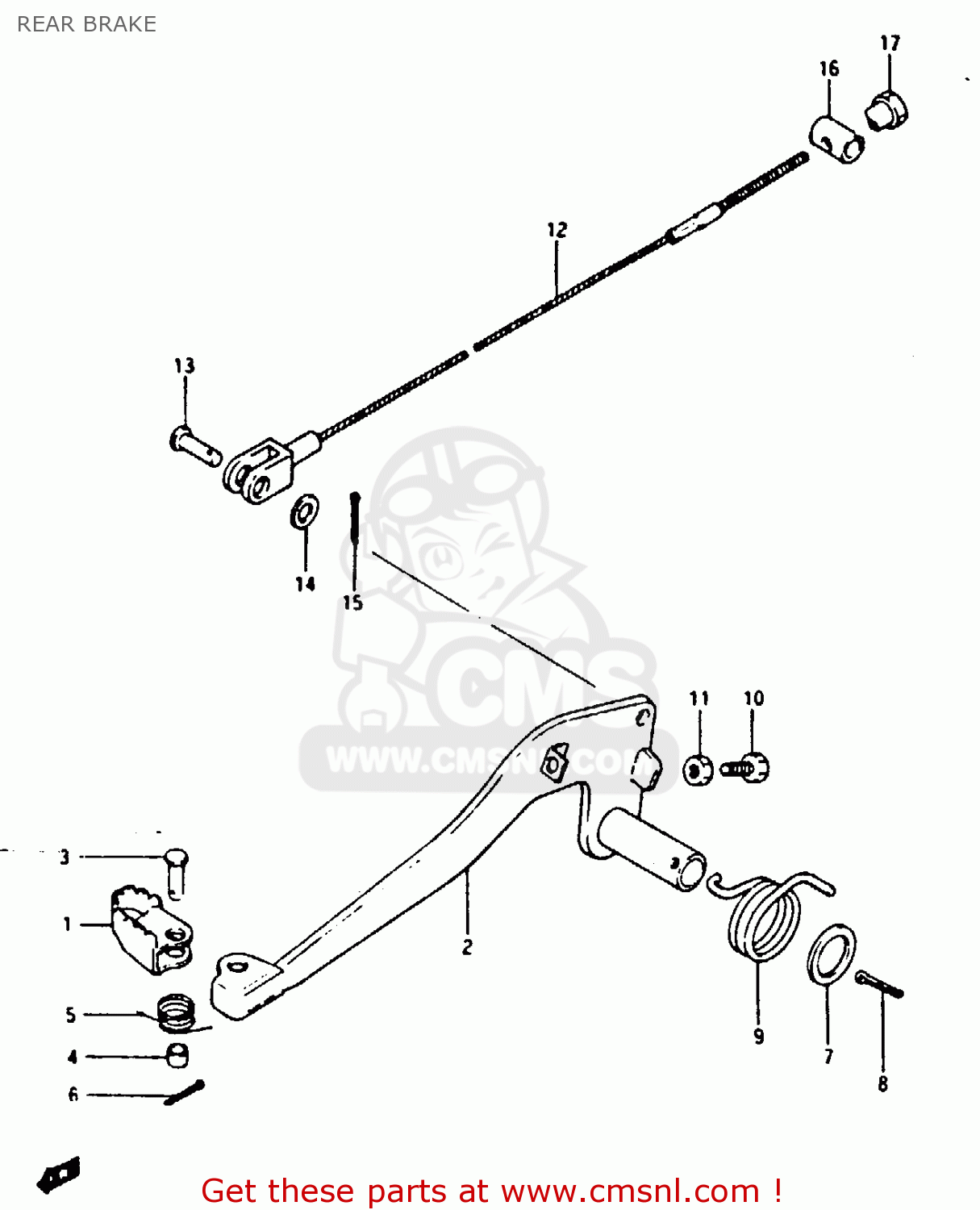

Rear brake diagram TS125XU 1984 (E) UNITED KINGDOM (E02)

REAR BRAKE TS125XU 1984 (E) UNITED KINGDOM (E02)

REAR BRAKE TS125XU 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

4311014130
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312001A00
ref: 2

ARM, BRAKE PEDAL

€ 41.00

3

0920006038
ref: 3

PIN

€ 2.00

4

0913006137
ref: 4

SPACER

€ 0.00

5

0944411004
ref: 5

SPRING

€ 3.00

6

0411120158
ref: 6

PIN

€ 1.50

7

0916015002
ref: 7

WASHER(15.5X26X2.3)

€ 2.00

8

0411130308
ref: 8

COTTER PIN

€ 1.50

9

0944831028
ref: 9

SPRING

€ 6.50

10

0912806028
ref: 10

SCREW(6X23)

€ 2.00

11

0831011068
ref: 11

NUT

€ 2.50

12

5851001A00
ref: 12

CABLE,RR BRAKE

€ 16.50

13

0920005001
ref: 13

PIN(L:17.5)

€ 1.50

14

0832221068
ref: 14

WASHER

€ 2.00

15

0411120208
ref: 15

PIN 20X20

€ 1.50

16

0920913004
ref: 16

PIN

€ 7.50

17

0915006009
ref: 17

NUT (6MM)

€ 3.50
