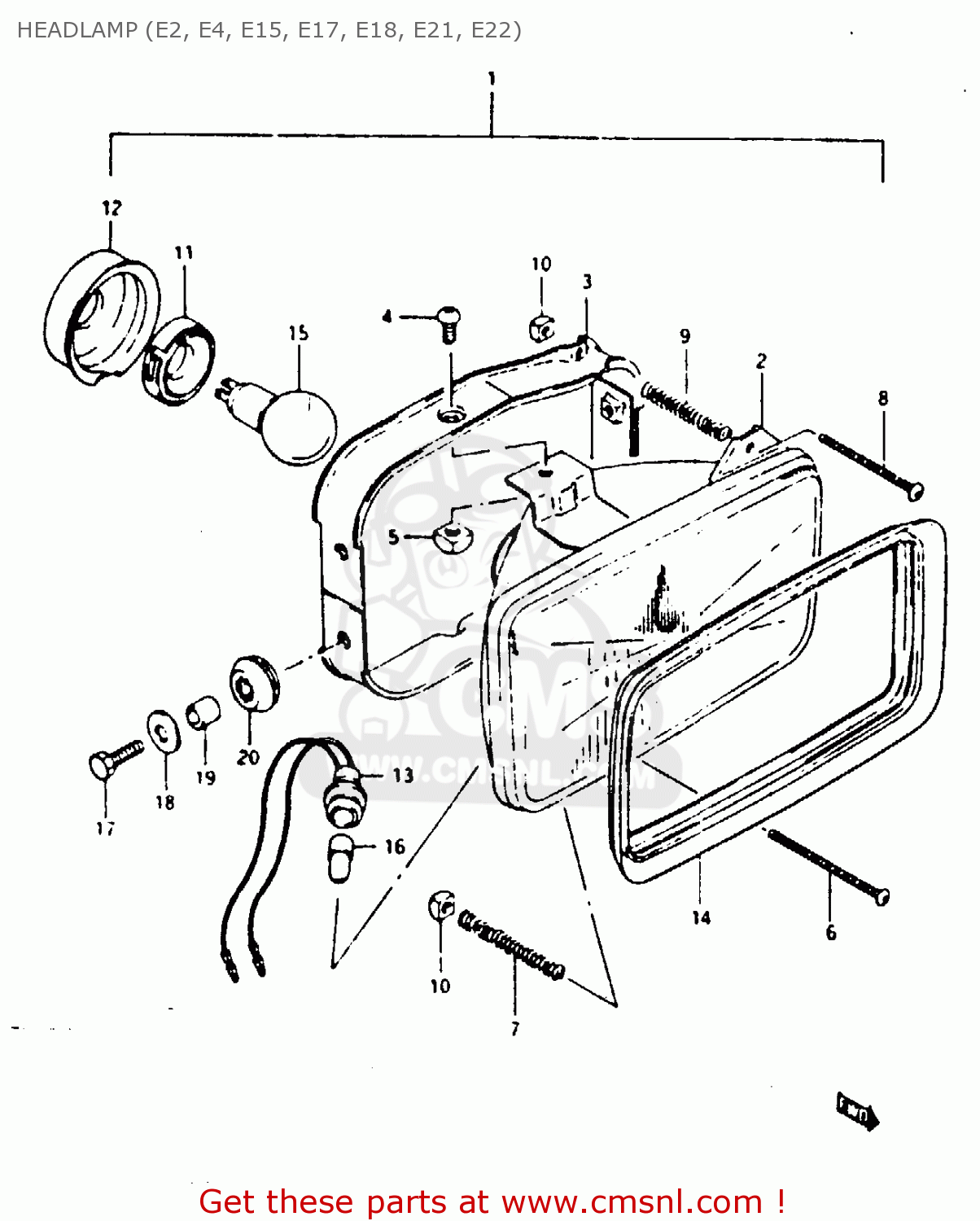

HEADLAMP (E2, E4, E15, E17, E18, E21, E22)

ref

part #

description

quantity

1-1

3510001A21999
ref: 1-1
E2

HEADLAMP ASSY

€ 159.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

3512101A20
ref: 2-1
E2

UNIT

€ 94.50

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

3514101A00
ref: 3

HOUSING

€ 24.50

4

0211205126
ref: 4

SCREW 5X12

€ 1.50

5

3513545900
ref: 5

NUT

€ 2.50

6

3515149200
ref: 6

SCREW,HEADLAMP ADJUST

€ 4.00

7

3515449200
ref: 7

SPRING

€ 3.50

8

3515131300
ref: 8

SCREW,HEADLAMP ADJUST

€ 3.00

9

3515431300
ref: 9

SPRING

€ 2.00

10

3513545600
ref: 10

NUT

€ 3.00

11

3513605300
ref: 11

HOLDER,BULB

€ 9.50

12

3517305300
ref: 12

COVER,SOCKET

€ 9.00

13

3611845900
ref: 13

SOCKET,PARKING

€ 13.00

14

3512901A01
ref: 14

SHADE

€ 20.00

15-1

0947112048
ref: 15-1
EXECUTED LOCALLY

BULB(12V45/40W)

€ 7.50

15-2

NOTUSED
ref: 15-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

0947112063
ref: 16

BULB(12V4W)

€ 6.00

17

0110706208
ref: 17

BOLT

€ 2.00

18

0916006027
ref: 18

WASHER (6.5X20X1.2)

€ 2.00

19

0918006030
ref: 19

SPACER (6.8X10X10)

€ 2.00

20

0932009018
ref: 20

CUSHION

€ 2.00

all assemblies
