STAND - FOOTREST
TS125XU 1984 (E) UNITED KINGDOM (E02)

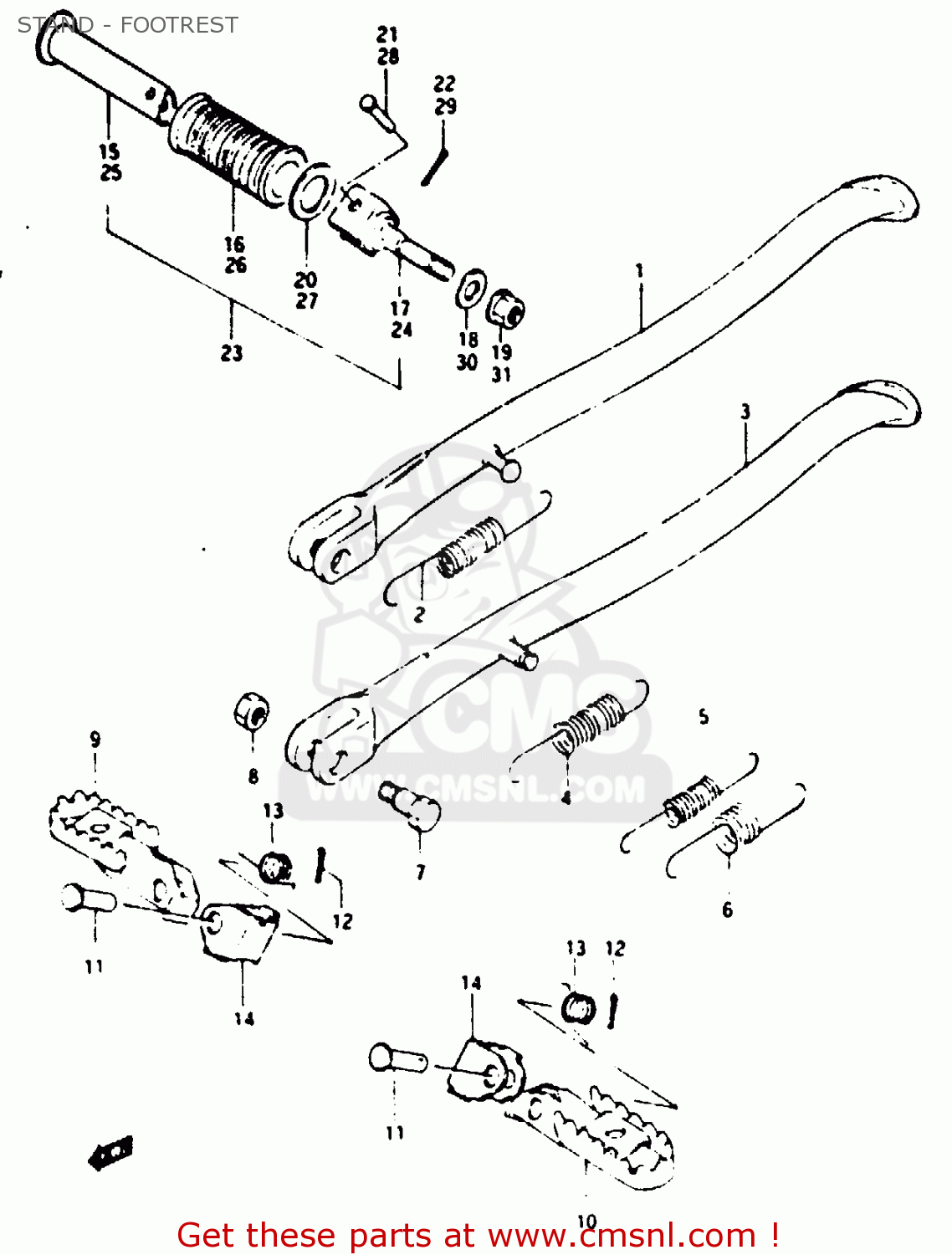

Stand - footrest diagram TS125XU 1984 (E) UNITED KINGDOM (E02)
STAND - FOOTREST TS125XU 1984 (E) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231001A0019F
ref: 1-1
FOR 14L, 21C, 163
STAND, PROP (BLUE)
€ 20.50
1-2
4231001A00019
ref: 1-2
FOR 08Y, 14C
STAND, PROP (BLACK)
€ 20.50
2
0944318009
ref: 2
SPRING
€ 21.00
3-1
4231001A1019F
ref: 3-1
E15, E18, E22, MODEL
STAND, PROP (BLUE)
€ 47.50
3-2
4231001A10019
ref: 3-2
E15, E18, E22, MODEL
STAND, PROP (BLACK)
€ 47.50
4
0944318015
ref: 4
E15, E18, MODEL G E2
SPRING
€ 5.50
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
NOTUSED
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
0911110019
ref: 7
BOLT L:30
€ 4.50
8
0831022108
ref: 8
NUT
€ 2.50
9-1
4355001A0119F
ref: 9-1
FOR 14L, 21C, 163
FOOTREST, RH (BLUE)
€ 25.00
9-2
4355001A01019
ref: 9-2
FOR 08Y, 14C
FOOTREST,FR,R
€ 25.00
10-1
4356001A0119F
ref: 10-1
MODEL E/F, FOR 14L,
FOOTREST, LH (BLUE)
€ 20.50
10-2
4356001A0219F
ref: 10-2
MODEL G, FOR 14L, 21
FOOTREST, LH (BLUE)
€ 20.50
10-3
4356001A01019
ref: 10-3
MODEL E/F, FOR 08Y,
FOOTREST, LH (BLACK)
€ 20.50
10-4
4356001A02019
ref: 10-4
MODEL G, FOR 08Y, 14
FOOTREST, LH (BLACK)
€ 20.50
11
0920010013
ref: 11
PIN
€ 2.50
12
0411125208
ref: 12
PIN 25X20
€ 2.00
13
0944815007
ref: 13
SPRING
€ 2.50
14
4357001A00
ref: 14
CUSHION,FR FOOTREST
€ 12.00
15
4361044000
ref: 15
MODEL E/F
BAR,PILLION FOOTREST
€ 14.50
16
4361233200
ref: 16
MODEL E/F
RUBBER,PILLION FOOTREST
€ 4.50
17
4362001A00
ref: 17
MODEL E/F
HOLDER, PILLION FOOTREST
€ 15.00
18
0832221108
ref: 18
MODEL E/F
WASHER
€ 2.50
19
0831616108
ref: 19
MODEL E/F
NUT
€ 2.00
20
0916019006
ref: 20
MODEL E/F
WASHER (19.5X32X2)
€ 2.00
21
0920006010
ref: 21
MODEL E/F
PIN
€ 2.50
22
0411125208
ref: 22
MODEL E/F
PIN 25X20
€ 2.00
23-1
4360001A10
ref: 23-1
MODEL G
FOOTREST ASSY,PILLION,R
€ 23.50
23-2
4370001A10
ref: 23-2
MODEL G
FOOTREST ASSY, PILLION LH
€ 17.00
24
4362001A00
ref: 24
MODEL G
HOLDER, PILLION FOOTREST
€ 15.00
25
4361003001
ref: 25
MODEL G
BAR,FOOTREST RUBBER
€ 5.50
26
4361233200
ref: 26
MODEL G
RUBBER,PILLION FOOTREST
€ 4.50
27
0916019006
ref: 27
MODEL G
WASHER (19.5X32X2)
€ 2.00
28
0920006010
ref: 28
MODEL G
PIN
€ 2.50
29
0411120208
ref: 29
MODEL G
PIN 20X20
€ 1.50
30
0832221108
ref: 30
MODEL G
WASHER
€ 2.50
31
0831616108
ref: 31
MODEL G
NUT
€ 2.00
