WATER PUMP
TS125XU 1984 (E) UNITED KINGDOM (E02)

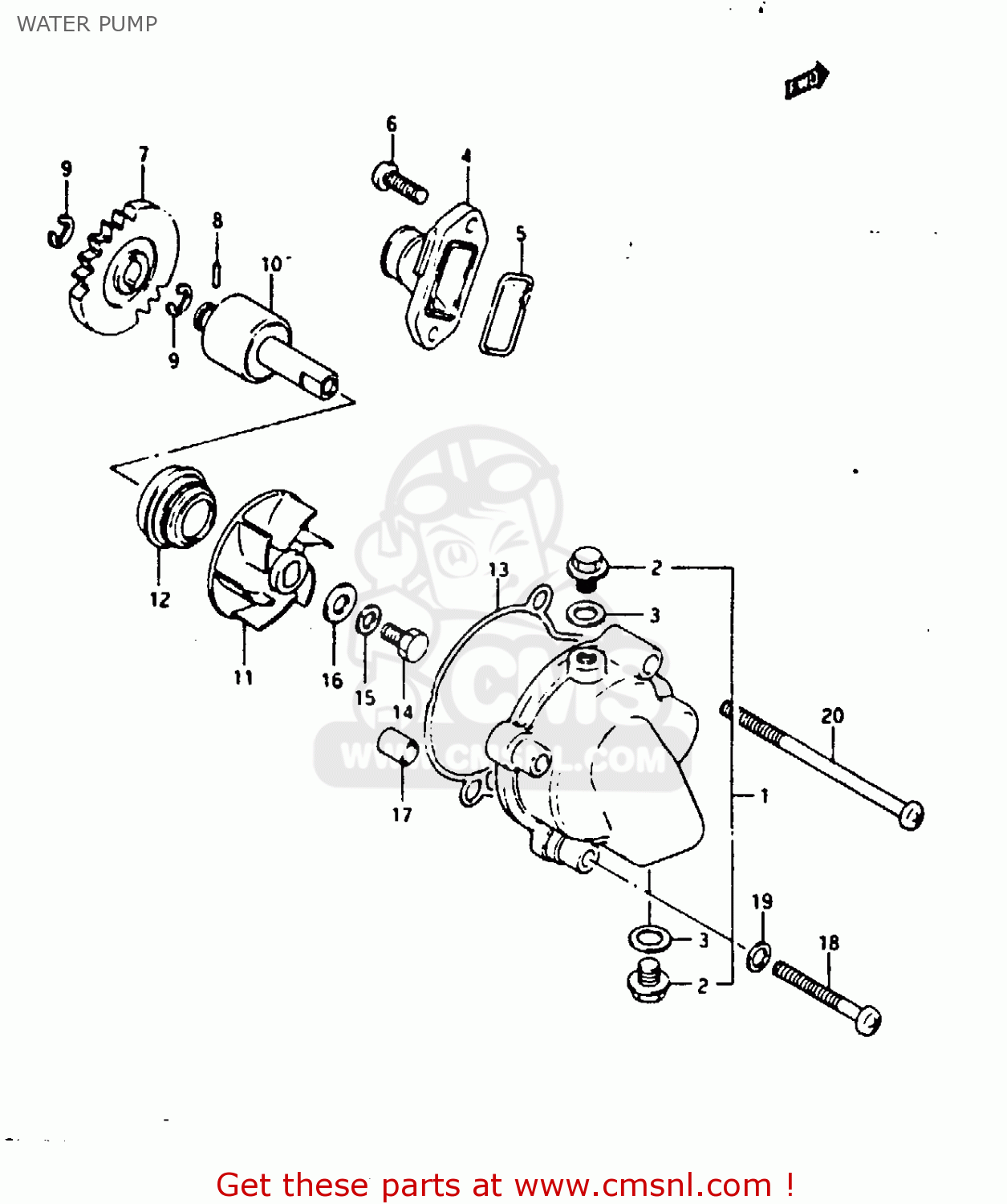

Water pump diagram TS125XU 1984 (E) UNITED KINGDOM (E02)
WATER PUMP TS125XU 1984 (E) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
1741001A01
ref: 1-1
MODEL E/F
CASE, WATER PUMP
€ 72.50
1-2
1741001A10
ref: 1-2
MODEL G
CASE, WATER PUMP
€ 72.50
2
1741514300
ref: 2
BOLT,DRAIN
€ 2.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
€ 1.00
4-1
1742101A00
ref: 4-1
MODEL E/F
CONNECTOR, INLET
€ 24.00
4-2
1742101A10
ref: 4-2
MODEL G
CONNECTOR, INLET
€ 24.00
5
1741414300
ref: 5
O RING,WATER PUMP CONNECTOR
€ 3.00
6
0211206205
ref: 6
SCREW
€ 2.00
7
1746101A10
ref: 7
GEAR, DRIVEN (NT:25)
€ 26.50
8
0926105007
ref: 8
PIN(5.1X18.8)
€ 1.00
9
0833211106
ref: 9
E RING
€ 1.50
10
1751001A01
ref: 10
SHAFT, WATER PUMP
€ 85.50
11
1749114110
ref: 11
IMPELLER,WATER PUMP
€ 17.00
12-1
1747014100
ref: 12-1
MODEL E/F
SEAL,WATER PUMP SHAFT
€ 21.50
12-2
1747046A00
ref: 12-2
MODEL G
SEAL,MECHANICAL
€ 21.50
13
1743501A01
ref: 13
O RING,WATER PUMP CASE
€ 7.50
14
0910006099
ref: 14
BOLT(6X13)
€ 2.00
15
0916406006
ref: 15
WASHER
€ 2.50
16
0916806016
ref: 16
GASKET (NAS)
€ 3.00
17
0421109129
ref: 17
PIN
€ 2.00
18
0211206405
ref: 18
SCREW
€ 2.00
19
0916806015
ref: 19
WASHER
€ 2.00
20
0211206905
ref: 20
SCREW
€ 3.00
