LEFT HANDLE SWITCH

TS125XU 1984 (E) UNITED KINGDOM (E02)

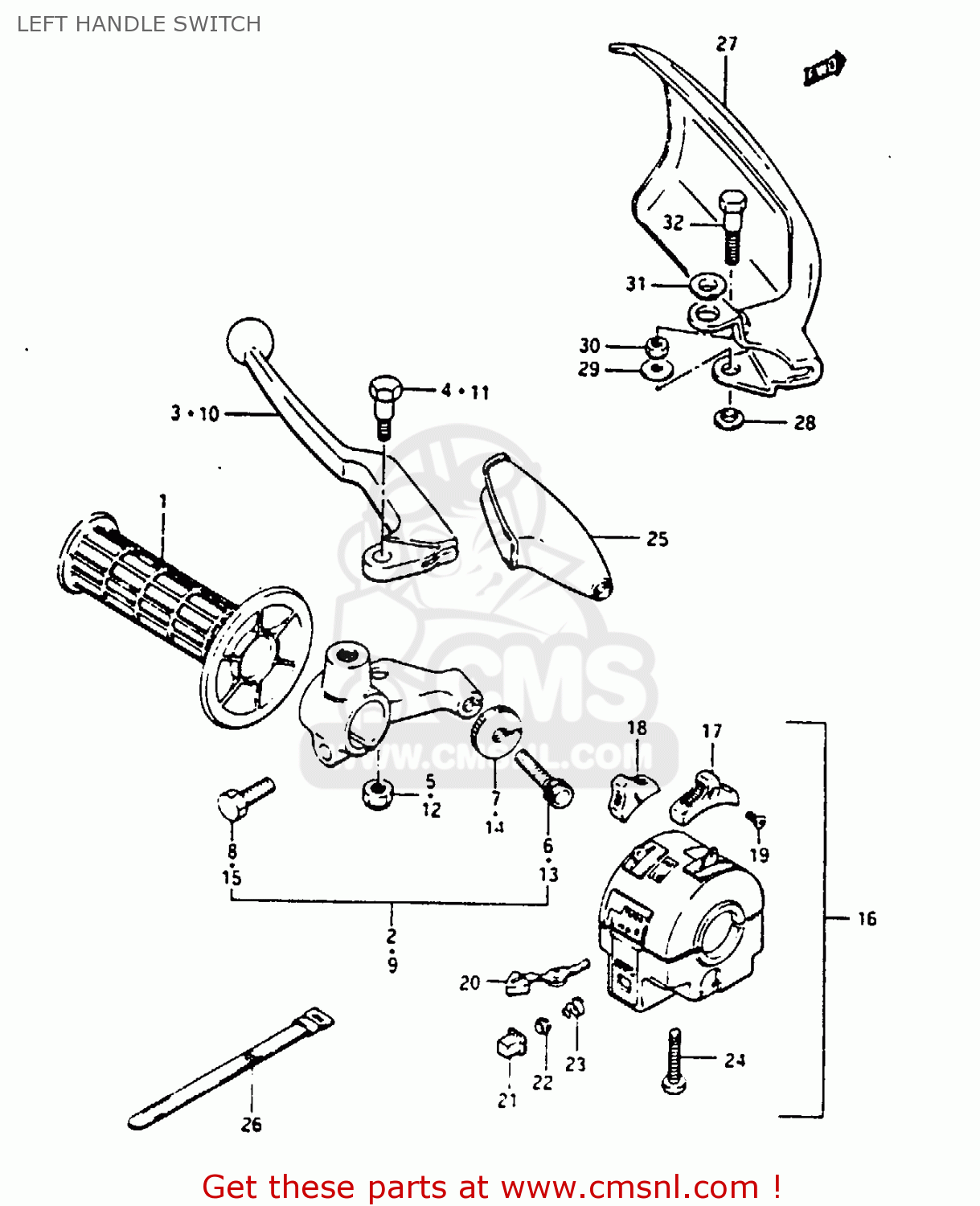

Left handle switch diagram TS125XU 1984 (E) UNITED KINGDOM (E02)

LEFT HANDLE SWITCH TS125XU 1984 (E) UNITED KINGDOM (E02)
LEFT HANDLE SWITCH TS125XU 1984 (E) UNITED KINGDOM (E02)
LEFT HANDLE SWITCH TS125XU 1984 (E) UNITED KINGDOM (E02)
prices are in EUR
ref
part #
description
quantity
1
5721101A00
ref: 1
GRIP, LH
5721101A00
€ 12.00
2
5750013A00
ref: 2
MODEL E/F
LEVER ASSY, CLUTCH
5750013A00
€ 52.00
3
5762026500
ref: 3
MODEL E/F
LEVER,CLUTCH
5762026500
€ 28.50
4
5743133450
ref: 4
MODEL E/F
BOLT,LEVER
5743133450
€ 8.50
5
0831921065
ref: 5
MODEL E/F
NUT
0831921065
€ 2.50
6
5744113A00
ref: 6
MODEL E/F
ADJUSTER,CABLE
5744113A00
€ 4.00
7
5744244400
ref: 7
MODEL E/F
NUT,CABLE ADJUSTER LOCK
5744244400
€ 4.00
8
0110706205
ref: 8
MODEL E/F
BOLT
0110706205
€ 2.00
9
5750037200
ref: 9
MODEL G
LEVER ASSY,CLUTCH
5750037200
€ 49.50
10
5762049101
ref: 10
MODEL G
LEVER,CLUTCH
5762049101
€ 28.50
11
5743149110
ref: 11
MODEL G
BOLT,LEVER PIVOT
5743149110
€ 5.00
12
0831921065
ref: 12
MODEL G
NUT
0831921065
€ 2.50
13
5744111010
ref: 13
MODEL G
ADJUSTER,CABLE
5744111010
€ 8.00
14
5744211010
ref: 14
MODEL G
NUT,CABLE ADJUSTER
5744211010
€ 4.00
15
5745149100
ref: 15
MODEL G
BOLT,CLUTCH LEVER HOLDER
5745149100
€ 3.00
16-1
NOTUSED
ref: 16-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-2
3740001A00
ref: 16-2
E2, E4, E15, E17 E18
SWITCH ASSY,HANDLE LH
3740001A00
€ 108.00
17
3741145012
ref: 17
KNOB,LIGHTING SWITCH
3741145012
€ 4.50
18
3742145012
ref: 18
KNOB,DIMMER SWITCH
3742145012
€ 5.50
19
0211203068
ref: 19
SCREW
0211203068
€ 2.00
20
3751345011
ref: 20
KNOB,TURNSIGNAL
3751345011
€ 6.50
21
5737145000
ref: 21
BUTTON,HORN
5737145000
€ 3.00
22
5737245000
ref: 22
CONTACT
5737245000
€ 3.00
23
5738245000
ref: 23
SPRING
5738245000
€ 2.50
24
0211205257
ref: 24
SCREW
0211205257
€ 2.00
25
5734140001
ref: 25
COVER,CLUTCH LEVER
5734140001
€ 7.50
26
0940712402
ref: 26
CLAMP(L:120)
0940712402
€ 3.00
27-1
5754114A0008Y
ref: 27-1
OPT MODEL F/G
GUARD, KNUCKLE LH (BLUE)
€ 19.50
27-2
5754114A0014C
ref: 27-2
OPT MODEL F/G
COVER,KNUCKLE,LEFT
€ 9.50
27-3
5754114A0014L
ref: 27-3
OPT MODEL F/G
COVER,KNUCKLE,L
5754114A0014L
€ 13.50
27-4
5754114A00163
ref: 27-4
OPT MODEL F/G
COVER,KNUCKLE,LEFT
5754114A00163
€ 19.50
27-5
5754114A0021C
ref: 27-5
OPT MODEL F/G
COVER,KNUCKLE,L
5754114A0021C
€ 15.50
28
0916906033
ref: 28
OPT MODEL F/G
WASHER
0916906033
€ 1.50
29
0916006019
ref: 29
OPT MODEL F/G
WASHER(6.5X16X1.2)
0916006019
€ 1.50
30
0831921068
ref: 30
OPT MODEL F/G
NUT 6MM
0831921068
€ 2.00
31
0916910010
ref: 31
OPT MODEL F/G
WASHER
0916910010
€ 3.00
32
5743114A00
ref: 32
OPT MODEL F/G
BOLT,LEVER PIVOT
5743114A00
€ 6.50
