REAR SWINGING ARM

TS125XU 1984 (E) UNITED KINGDOM (E02)

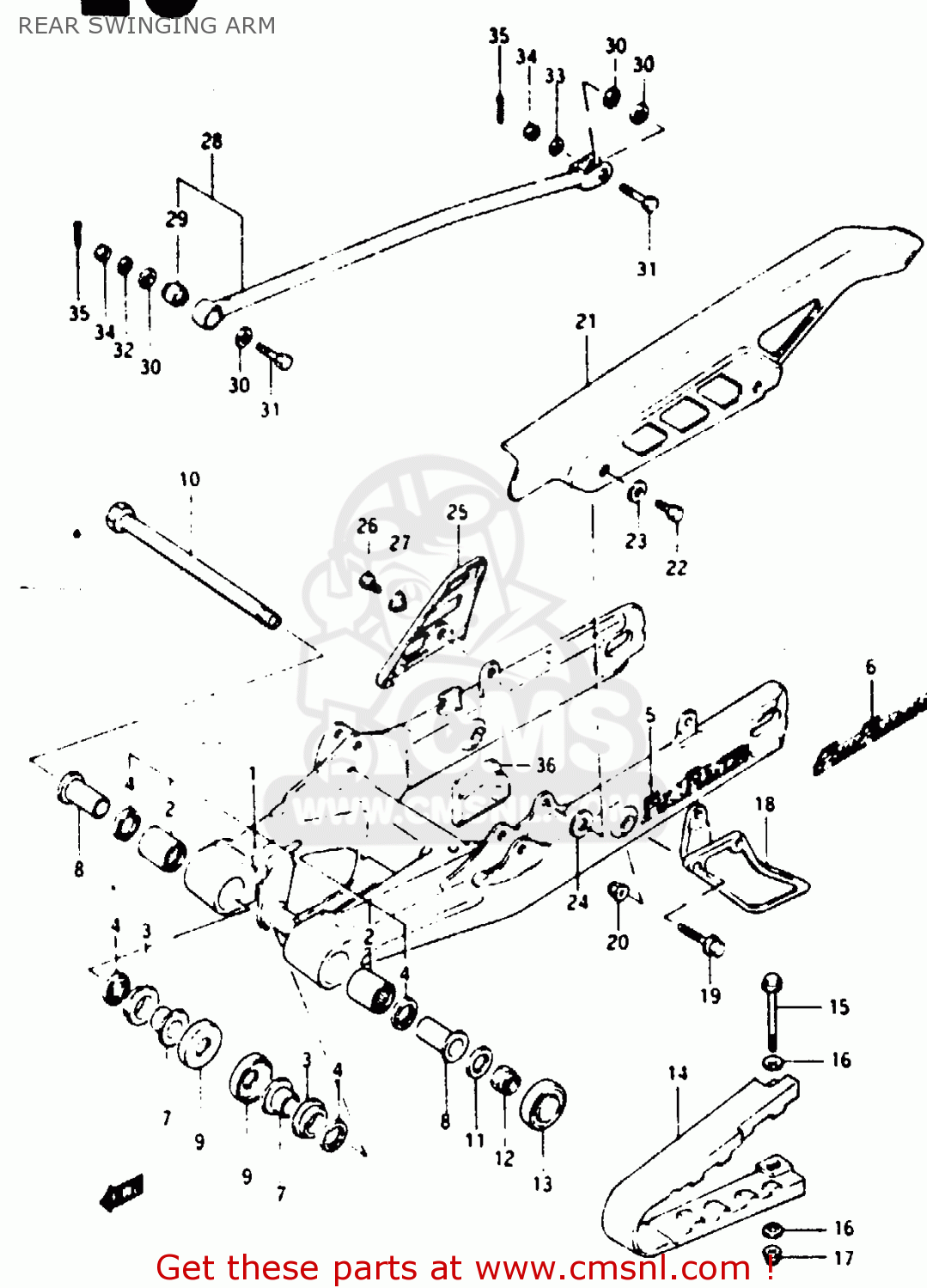

Rear swinging arm diagram TS125XU 1984 (E) UNITED KINGDOM (E02)

REAR SWINGING ARM TS125XU 1984 (E) UNITED KINGDOM (E02)
REAR SWINGING ARM TS125XU 1984 (E) UNITED KINGDOM (E02)
REAR SWINGING ARM TS125XU 1984 (E) UNITED KINGDOM (E02)
prices are in EUR
ref
part #
description
quantity
1-1
6100001A00
ref: 1-1
MODEL E/F
SWINGING ARM ASSY, REAR
€ 650.00
1-2
6100001A10
ref: 1-2
MODEL G
SWINGING ARM ASSY, REAR
€ 650.00
2
0926320041
ref: 2
BEARING(20X27X20)
0926320041
€ 15.00
3
6126114101
ref: 3
BUSH,RR SWINGINGARM PIVOT
6126114101
€ 10.00
4
0928520005
ref: 4
OIL SEAL
0928520005
€ 5.00
5
6838101A0097J
ref: 5
MODEL E/F
EMBLEM
€ 4.00
6
683810341097J
ref: 6
MODEL G
EMBLEM,SWING ARM
683810341097J
€ 7.00
7
6125214100
ref: 7
SPACER,RR SWGARM PIVOT INNER
6125214100
€ 12.50
8
6125114100
ref: 8
SPACER,RR SWGARM PIVOT
6125114100
€ 16.00
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
10
6121101A00
ref: 10
SHAFT, SWINGING ARM PIVOT
6121101A00
€ 25.50
11
0832211148
ref: 11
WASHER
0832211148
€ 2.00
12
0915914013
ref: 12
NUT
0915914013
€ 8.50
13-1
6122214500019
ref: 13-1
CAP, SWINGING ARM PIVOT (BLACK)
€ 3.00
13-2
612221450019F
ref: 13-2
CAP
612221450019F
€ 3.00
14
6127301A00
ref: 14
BUFFER, CHAIN TOUCH DEFENSE
6127301A00
€ 17.50
15
0151706708
ref: 15
BOLT (6X70)
€ 3.00
16
0916906040
ref: 16
WASHER
0916906040
€ 2.00
17
0831931068
ref: 17
NUT
0831931068
€ 2.50
18
6134101A00
ref: 18
GUIDE, CHAIN
6134101A00
€ 19.50
19
0151706208
ref: 19
BOLT,REAR
€ 2.50
20
0831931068
ref: 20
NUT
0831931068
€ 2.50
21
6131101A02
ref: 21
CASE,CHAIN
€ 33.50
22
0110706104
ref: 22
BOLT
€ 2.00
23
0916906026
ref: 23
WASHER
0916906026
€ 2.00
24
0916006027
ref: 24
MODEL E/F
WASHER (6.5X20X1.2)
0916006027
€ 2.00
25
6139113610291
ref: 25
GUARD, FOOT (BLACK)
6139113610291
€ 12.00
26
0110706104
ref: 26
BOLT
€ 2.00
27
0916906026
ref: 27
WASHER
0916906026
€ 2.00
28
643000181013L
ref: 28
TORQUELINK SET
€ 68.00
29
6435240411
ref: 29
SPHERICAL BEARING,TORQUE
€ 69.50
30
6433940410
ref: 30
6433940410
31
0910108018
ref: 31
BOLT 8X30
0910108018
€ 4.50
32
0916008013
ref: 32
WASHER (8.5X18X2)
€ 2.50
33
0832211088
ref: 33
WASHER
0832211088
€ 2.00
34
0831441088
ref: 34
NUT 8MM
0831441088
€ 2.50
35
0411120208
ref: 35
PIN 20X20
0411120208
€ 1.50
36
6139101A00
ref: 36
GUIDE, CHAIN CASE
6139101A00
€ 8.50
