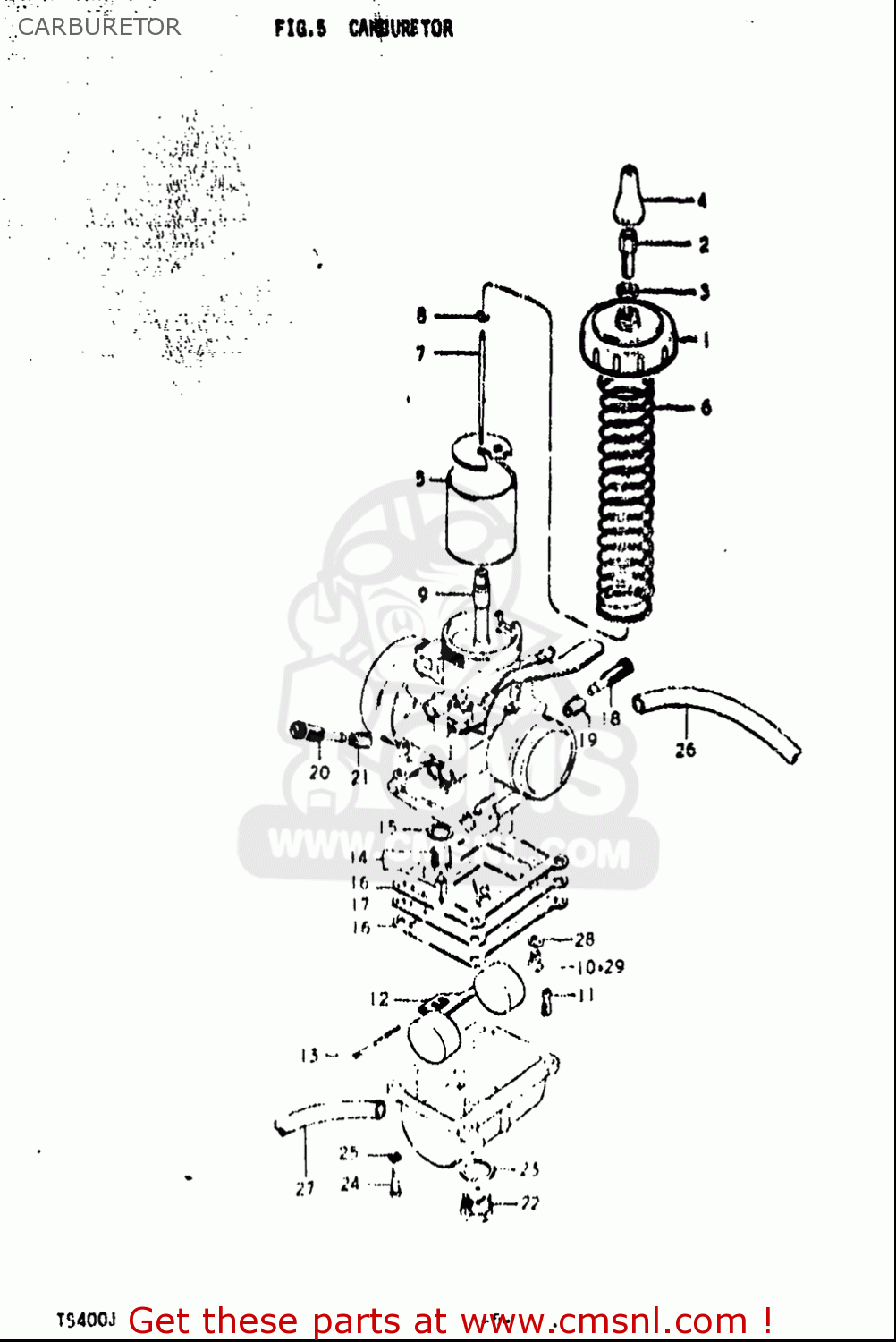

CARBURETOR

ref

part #

description

quantity

2

1357748110
ref: 2

ADJUSTER,CABLE

€ 8.00

3

1366116600
ref: 3

NUT

€ 5.00

4

1368116600
ref: 4

CAP,RUBBER

€ 7.00

8

1339410010
ref: 8

CLIP

€ 4.50

10

0949142005
ref: 10

JET,MAIN(210)

€ 11.00

11

0949240004
ref: 11

JET,PILOT(40)

€ 17.50

12

1325232010
ref: 12

FLOAT

€ 25.50

14

1337016600
ref: 14

VALVE ASSY,NEEDLE

€ 45.00

15

1339216600
ref: 15

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

19

1326803110
ref: 19

SPRING,THROTTLE SCREW

€ 3.50

20

1326915010
ref: 20

SCREW,PILOT AIR

€ 10.50

21

1326801010
ref: 21

SPRING

€ 3.50

23

1324916600
ref: 23

GASKET,DRAIN PLUG

€ 0.00

25

0832101057
ref: 25

WASHER,LOCK

€ 2.00

26

0935135653600
ref: 26

HOSE(3.5X6.5X600)

€ 5.50

27

0935135653600
ref: 27

HOSE(3.5X6.5X600)

€ 5.50

28

1338203110
ref: 28

WASHER

€ 2.50

29-1

0949136006
ref: 29-1

JET,MAIN(180)

€ 15.00

29-2

0949138009
ref: 29-2

JET,MAIN(190)

€ 10.00

29-3

0949140006
ref: 29-3

JET,MAIN(200)

€ 11.50

29-4

0949144007
ref: 29-4

JET,MAIN(220)

€ 9.50

29-5

0949146001
ref: 29-5

JET,MAIN(230)

€ 6.50

all assemblies
