REAR BRAKE

TS400 1972 (J) USA (E03)

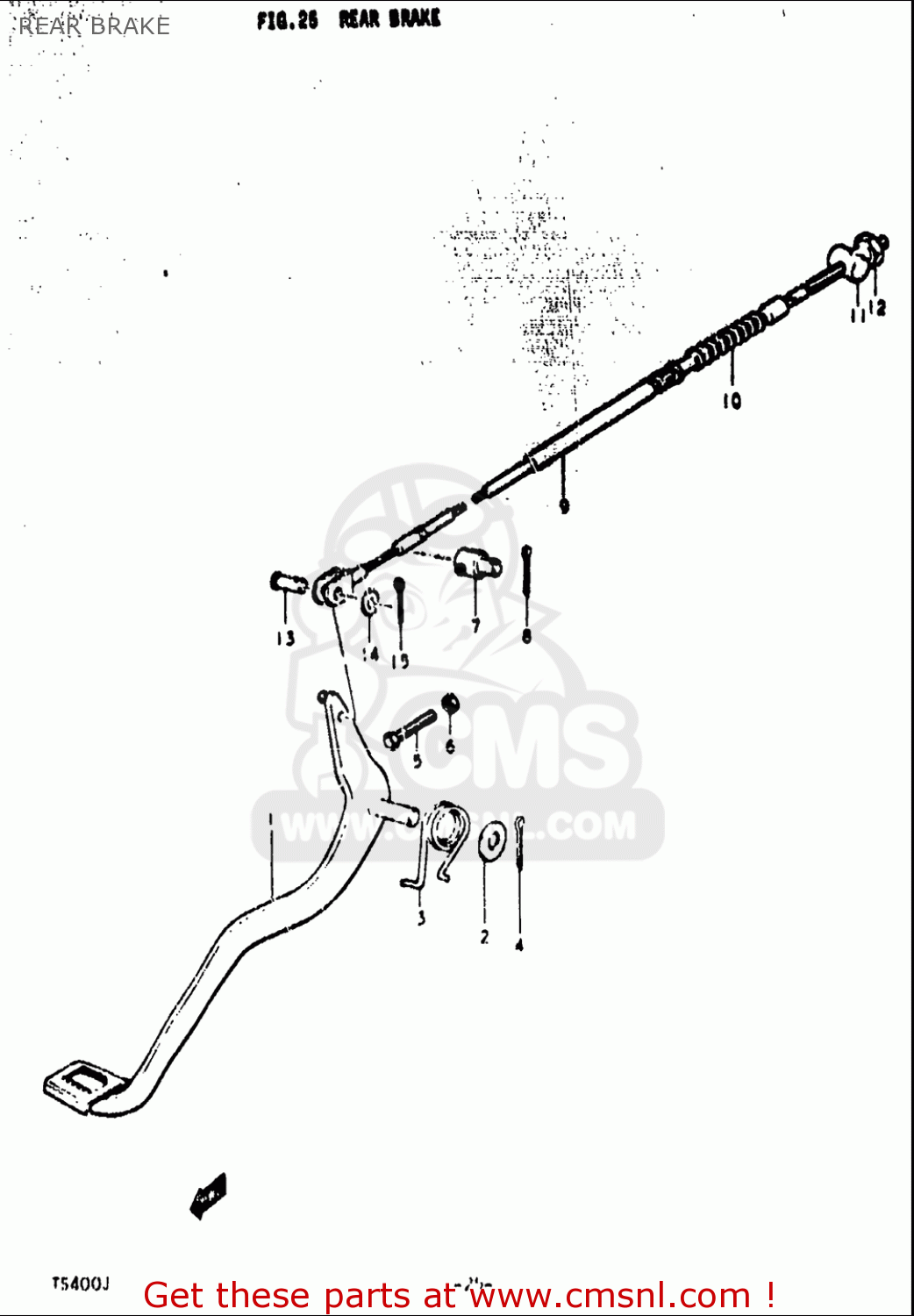

Rear brake diagram TS400 1972 (J) USA (E03)

REAR BRAKE TS400 1972 (J) USA (E03)

REAR BRAKE TS400 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0832201127
ref: 2

WASHER

€ 2.00

3

0944826002
ref: 3

SPRING

€ 2.50

4

041113030A
ref: 4

PIN

€ 1.50

6

0831000067
ref: 6

NUT

€ 2.50

8

041112520A
ref: 8

PIN

€ 2.00

9

5851016501
ref: 9

CABLE,RR BRAKE

€ 31.50

10

0928705001
ref: 10

SEAL,DUST

€ 11.00

11

0920913018
ref: 11

PIN(13X18)

€ 3.50

12

0915006014
ref: 12

NUT

€ 3.50

13

0920006013
ref: 13

PIN(L:13.5)

€ 2.00

14

0832201067
ref: 14

WASHER

€ 2.00

15

0411120158
ref: 15

PIN

€ 1.50
