CRANKSHAFT

TS400 1972 (J) USA (E03)

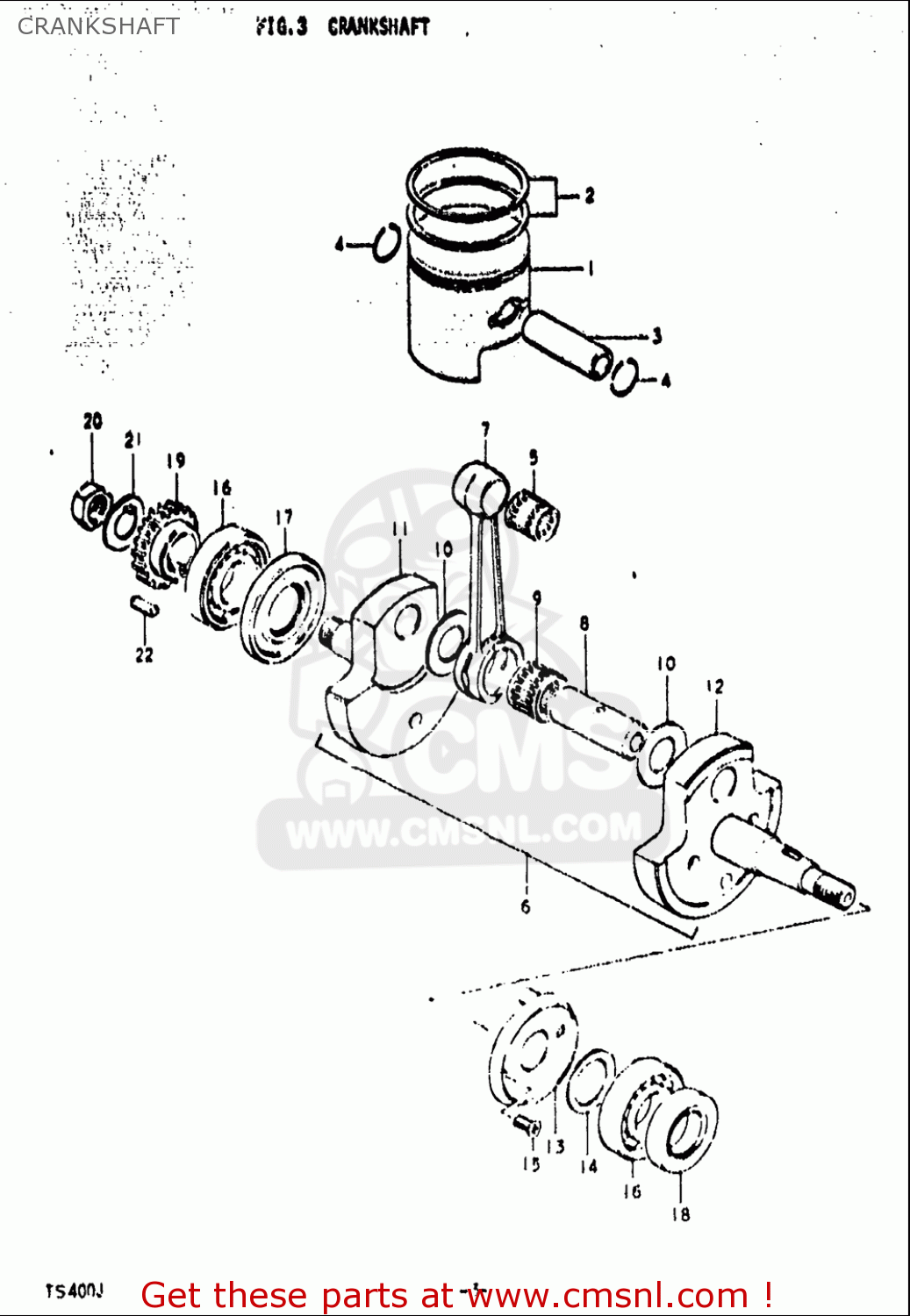

Crankshaft diagram TS400 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1211016501
ref: 1-1

PISTON (82.00MM)

€ 196.00

1215132400
ref: 3

PIN,PISTON

€ 41.50

0938120004
ref: 4

CIRCLIP,PISTON PIN

€ 2.00

0926320034
ref: 5

BEARING(20X25X27.9)

€ 15.50

1221116500
ref: 8

PIN,CRANK

€ 58.50

0926326002
ref: 9

BEARING

€ 11.50

0821230403
ref: 14

WASHER

€ 0.00

0212205107
ref: 15

SCREW

€ 1.00

0926230077
ref: 16

BEARING(30X72X19)

€ 47.50

0928940004
ref: 17

SEAL,OIL(40X72X9)

€ 15.50

0928330064
ref: 18

OIL SEAL (30X55X10)

€ 32.50

0914020007
ref: 20

NUT (20MM)

€ 6.00

0942107001
ref: 22

KEY

€ 2.50
