ELECTORICAL

TS400 1972 (J) USA (E03)

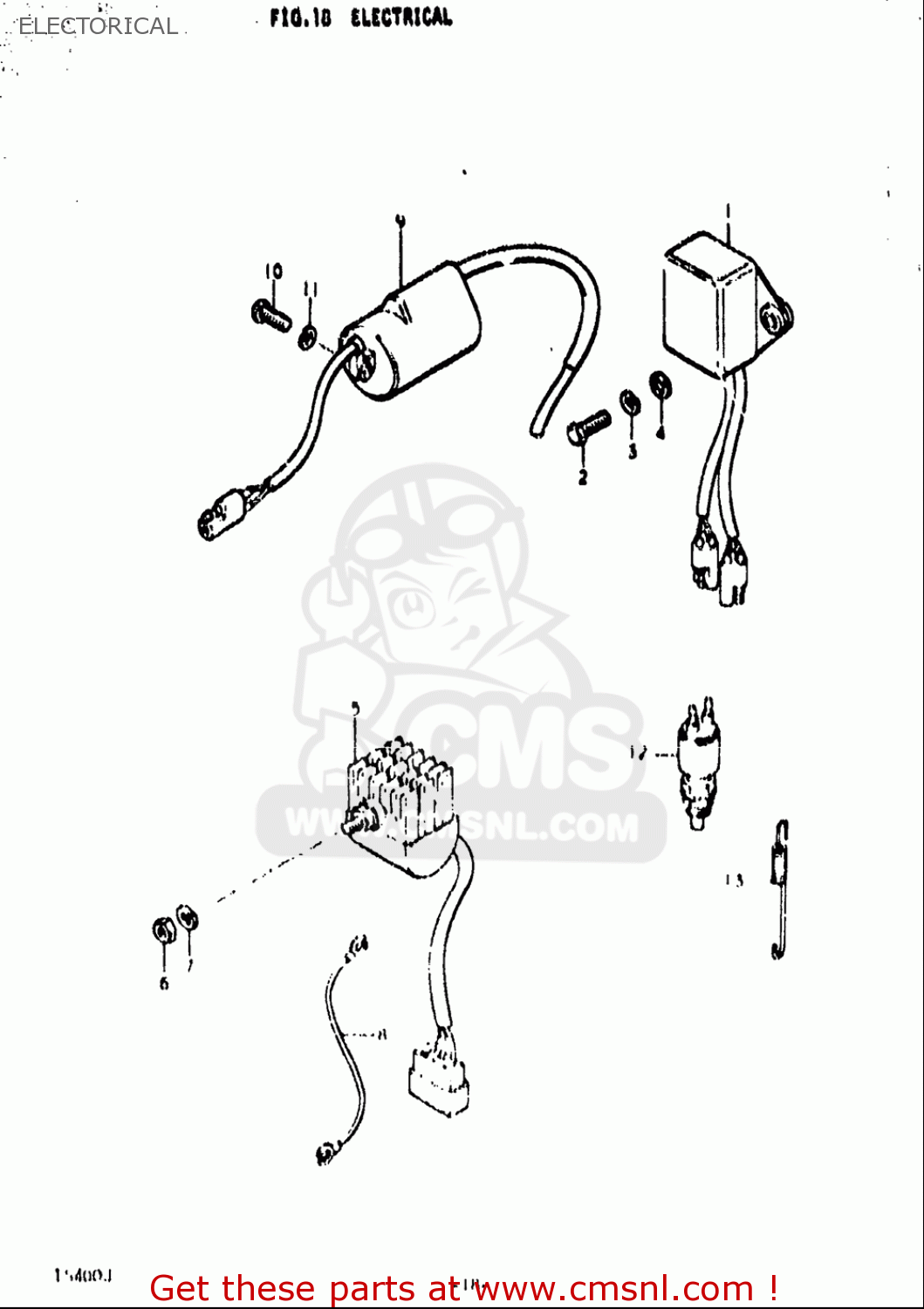

Electorical diagram TS400 1972 (J) USA (E03)

ELECTORICAL TS400 1972 (J) USA (E03)

ELECTORICAL TS400 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0832101067
ref: 3

WASHER,LOCK

€ 2.50

4

0832201067
ref: 4

WASHER

€ 2.00

5

3280031021
ref: 5

RECTIFIER ASSY

€ 259.00

6

0831000067
ref: 6

NUT

€ 2.50

7

0832101067
ref: 7

WASHER,LOCK

€ 2.50

8

3685102331
ref: 8

LEAD WIRE,EARTH

€ 6.00

9

3341014120
ref: 9

COIL ASSY,IGNITION

€ 100.00

10

0211205207
ref: 10

SCREW

€ 3.00

11

0832101057
ref: 11

WASHER,LOCK

€ 2.00

12

3761053011
ref: 12

SWITCH ASSY,BRAKE LAMP

€ 34.50

13

0944306031
ref: 13

SPRING

€ 21.00
