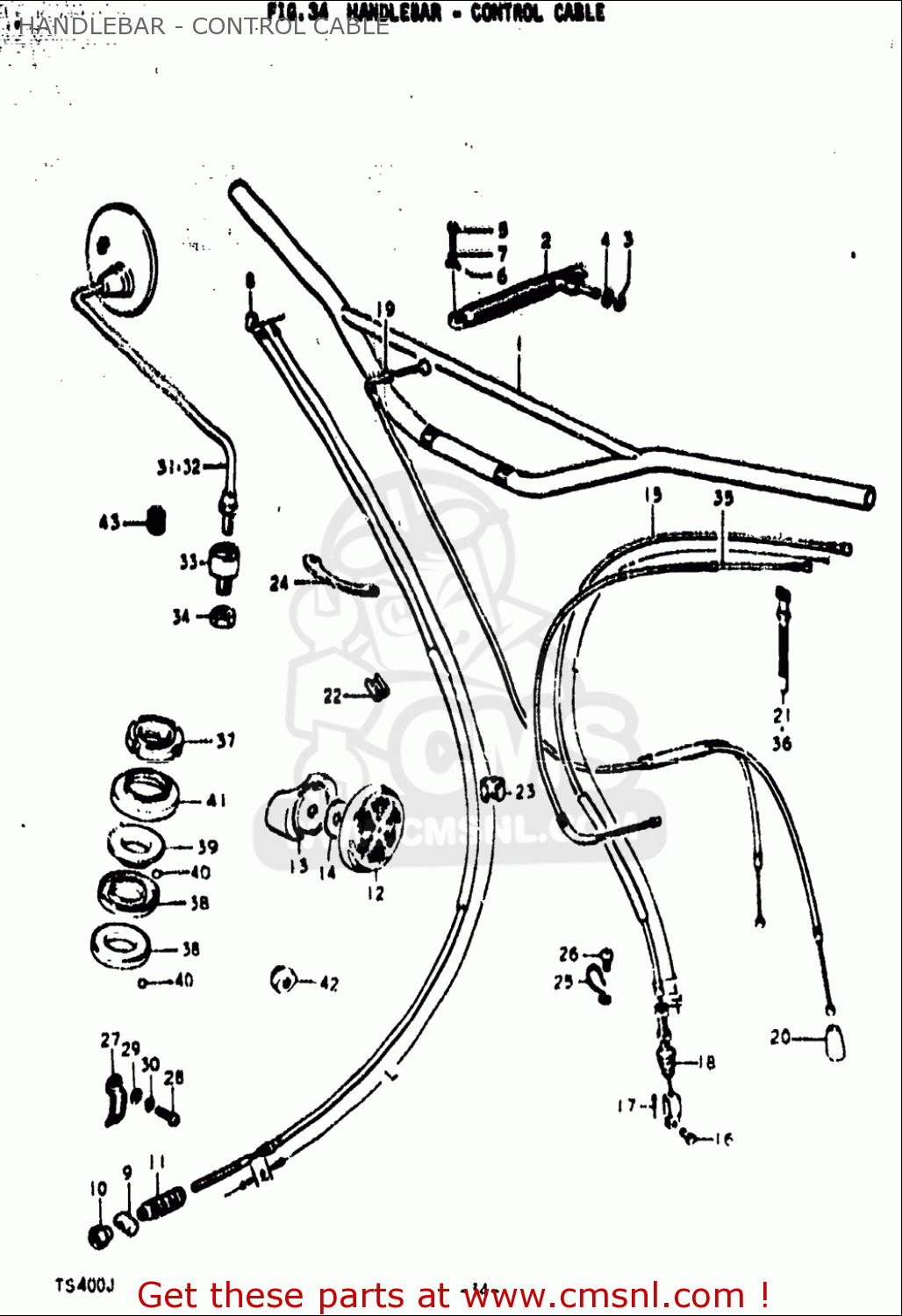

HANDLEBAR - CONTROL CABLE - TS400 1972 (J) USA (E03)

ref

part #

description

quantity

3

083321106A
ref: 3

E RING

€ 2.00

4

0832201087
ref: 4

WASHER

€ 2.00

5

0150008307
ref: 5

BOLT

€ 2.50

6

0832201087
ref: 6

WASHER

€ 2.00

7

0832101087
ref: 7

WASHER,LOCK

€ 2.00

8

5811030002
ref: 8

CABLE,FR BRAKE

€ 30.00

9

0920913018
ref: 9

PIN(13X18)

€ 3.50

10

0915006014
ref: 10

NUT

€ 3.50

11

0928705001
ref: 11

SEAL,DUST

€ 11.00

12

3595049080
ref: 12

REFLEX REFLECTOR,RR

€ 17.50

13

3599529000
ref: 13

SPACER

€ 14.00

14

0916006077
ref: 14

WASHER(6.5X20X1.2)

€ 2.00

15

5820032102
ref: 15

WIRE,CLUTCH

€ 35.00

16

0920006011
ref: 16

PIN(L:15)

€ 2.50

17

0411120158
ref: 17

PIN

€ 1.50

19

5830032004
ref: 19

CABLE ASSY,THROTTLE

€ 55.00

20

0928707002
ref: 20

SEAL,DUST(7X18X30)

€ 2.50

21

0940714301
ref: 21

CLAMP

€ 6.00

22

0940800001
ref: 22

CLIP

€ 2.50

23

0940800002
ref: 23

CLIP

€ 2.00

26

0211206127
ref: 26

SCREW

€ 2.00

27

0940306301
ref: 27

CLAMP

€ 2.00

28

0211206127
ref: 28

SCREW

€ 2.00

29

0832201067
ref: 29

WASHER

€ 2.00

30

0832101067
ref: 30

WASHER,LOCK

€ 2.50

31

5650023410
ref: 31

MIRROR ASSY,RE

€ 100.50

32

5660023410
ref: 32

MIRROR ASSY,LEFT

€ 51.50

34

0831000087
ref: 34

NUT

€ 2.00

36

0940712402
ref: 36

CLAMP(L:120)

€ 3.00

37

5163128000
ref: 37

NUT,STEERING STEM(25X44X10)

€ 12.50

38

5161133002
ref: 38

LACE,STEERING INNER LWR

€ 7.00

39

5162130001
ref: 39

LACE,STEERING OUTER UPR

€ 14.00

40

0611108003
ref: 40

BALL

€ 1.50

41

5164330000
ref: 41

DUST SEAL,STEERING UPR

€ 15.50

HANDLEBAR - CONTROL CABLE

all assemblies
