REAR SWINGING ARM
TS400 1972 (J) USA (E03)

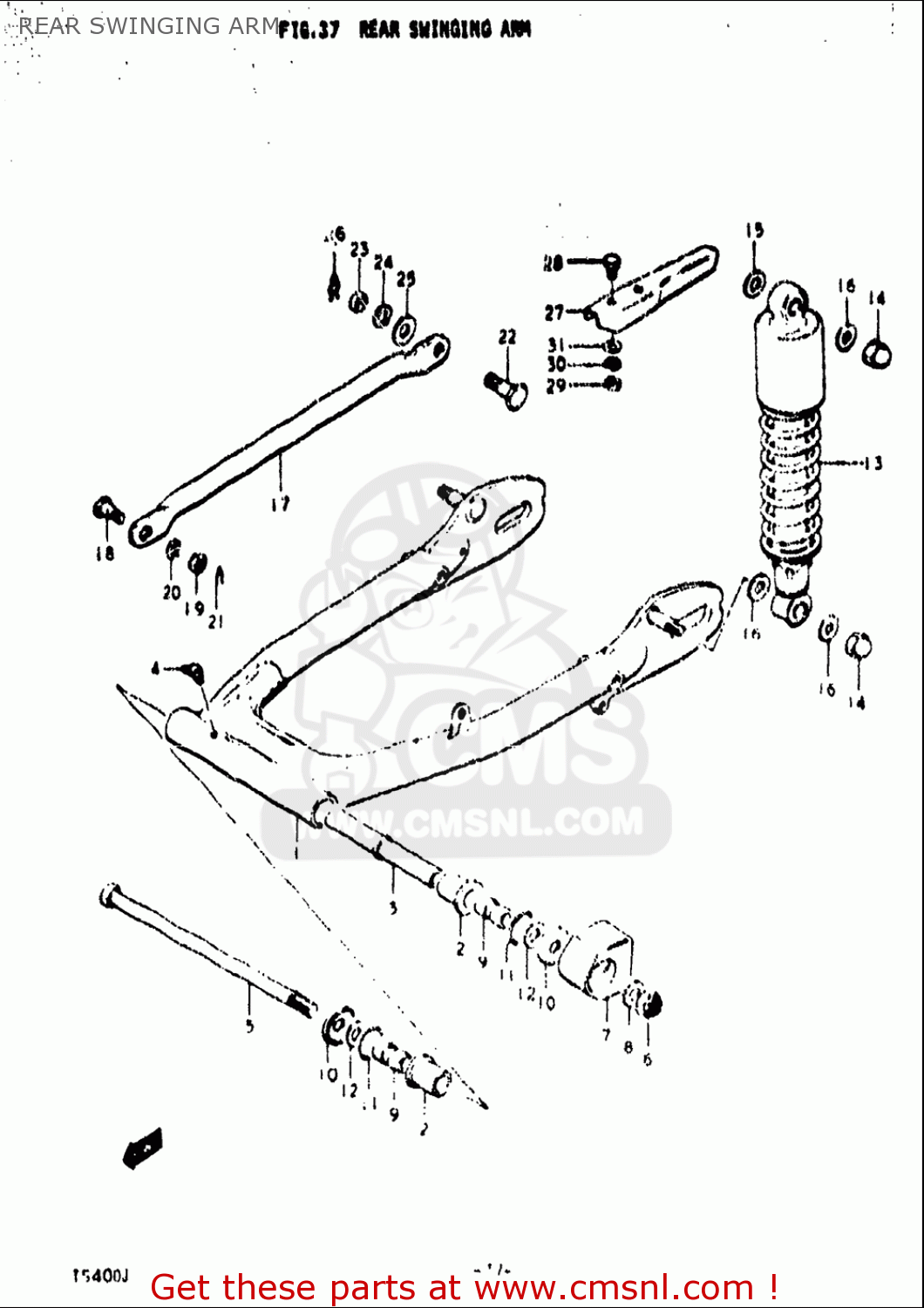

Rear swinging arm diagram TS400 1972 (J) USA (E03)
REAR SWINGING ARM TS400 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0930722003
ref: 2
BUSH
€ 18.00
3
6128032000
ref: 3
SPACER,SWING ARM,CENTER
€ 12.50
4
0835131008
ref: 4
NIPPLE,GREASE
€ 10.50
8
0832201147
ref: 8
WASHER
€ 2.00
9
6125115001
ref: 9
SPACER
€ 21.00
10
6126215000
ref: 10
COVER
€ 84.00
11
0928030001
ref: 11
O RING(D:3,ID:29.5)
€ 2.00
12
0916014009
ref: 12
WASHER(14.5X29X2.3)
€ 3.50
14
0831310107
ref: 14
NUT
€ 2.50
15
0832201127
ref: 15
WASHER
€ 2.00
16
0916010127
ref: 16
WASHER (10.5X24X2.3)
€ 2.00
19
0914008008
ref: 19
NUT
€ 1.50
20
0832101087
ref: 20
WASHER,LOCK
€ 2.00
21
0938406001
ref: 21
RETAINER,SNAP
€ 2.50
23
0831000107
ref: 23
NUT
€ 2.50
24
0832101107
ref: 24
WASHER,LOCK
€ 2.00
25
0916012088
ref: 25
WASHER(12.5X24X1.6)
€ 2.00
26
0938408001
ref: 26
SPRING,RETAINER
€ 3.00
28
0150006107
ref: 28
BOLT
€ 2.00
29
0831000067
ref: 29
NUT
€ 2.50
30
0832101067
ref: 30
WASHER,LOCK
€ 2.50
