KICK STARTER

TS400 1972 (J) USA (E03)

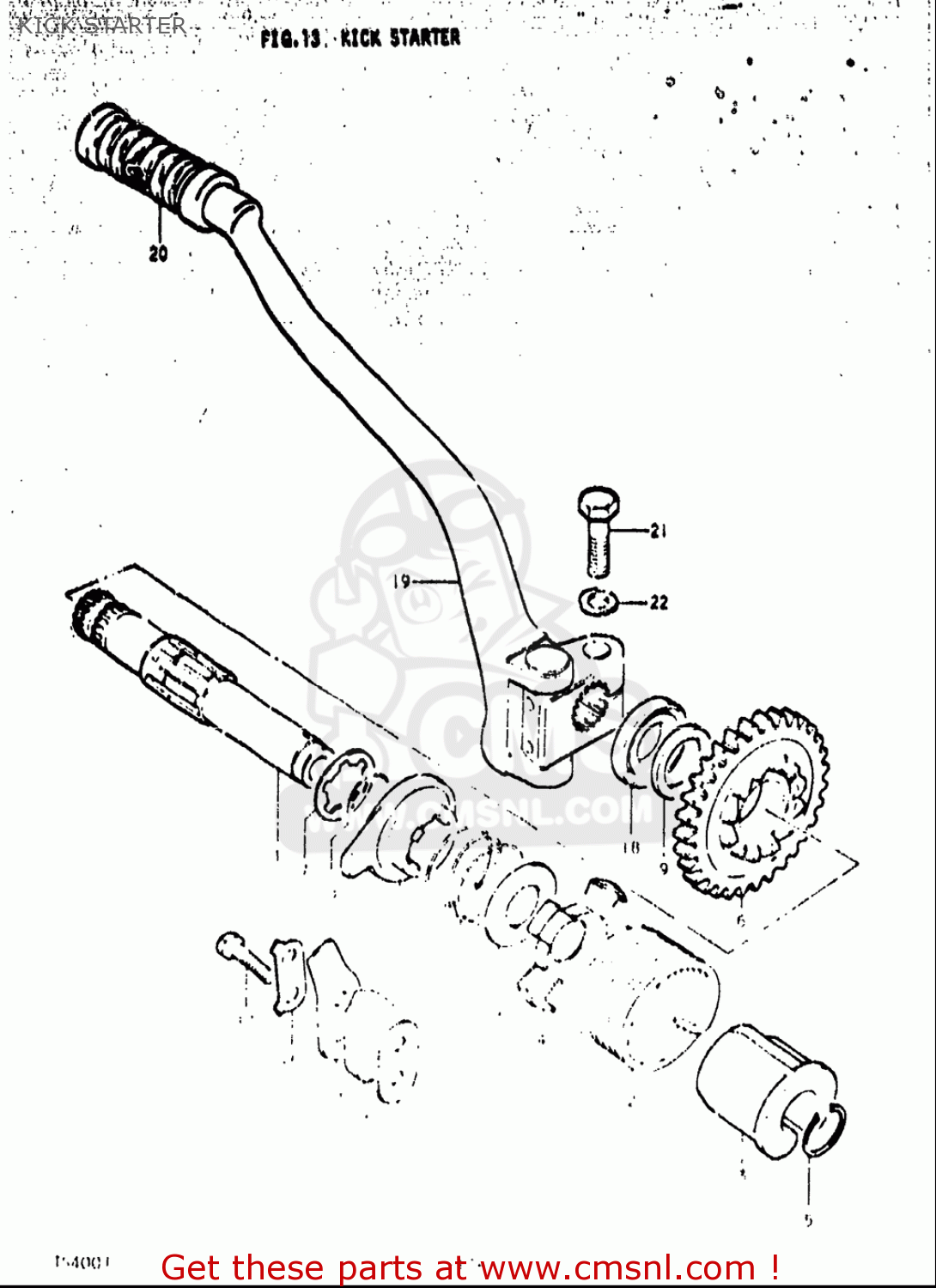

Kick starter diagram TS400 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

0944845003
ref: 2

SPRING

€ 4.50

2622130531
ref: 3

GUIDE,KICK SHAFT SPRING

€ 6.00

2622216500
ref: 4

HOLDER,KICK SHAFT SPRING

€ 0.00

0938017001
ref: 5

CIRCLIP

€ 2.00

0916722007
ref: 7

WASHER,LOCK

€ 3.50

0938022003
ref: 8

CIRCLIP

€ 13.50

2623122A10
ref: 10

STARTER,KICK

€ 47.50

0944032002
ref: 11

SPRING

€ 2.00

0821117342
ref: 12

WASHER

€ 3.00

0150006257
ref: 17

BOLT

€ 2.00

0928320025
ref: 18

SEAL,OIL(20X37X7)

€ 6.50

2635216401
ref: 20

RUBBER,KICK STARTER PEDAL

€ 4.00

0150010303
ref: 21

BOLT

€ 3.00

0832101107
ref: 22

WASHER,LOCK

€ 2.00
