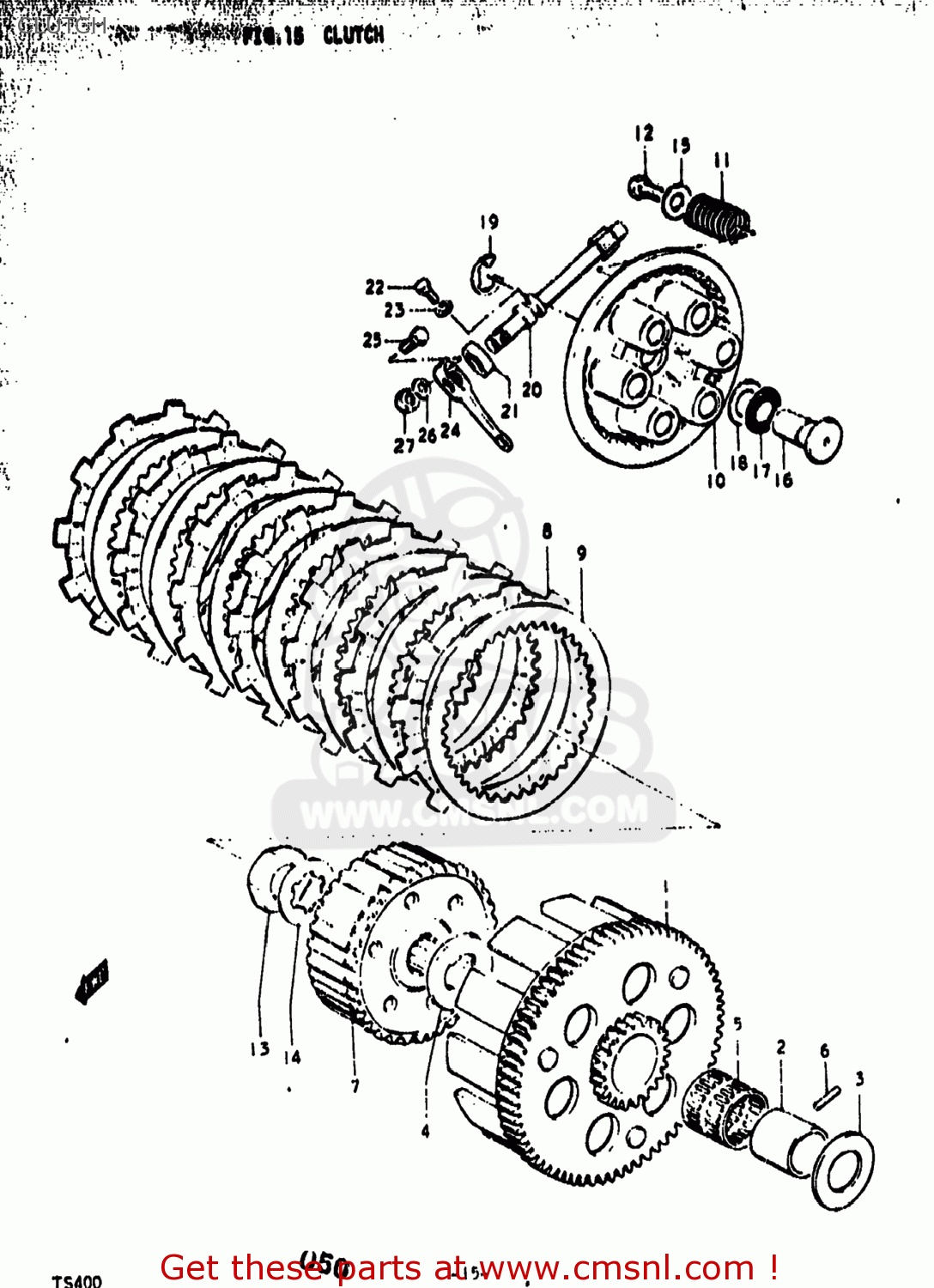

CLUTCH

ref

part #

description

quantity

1-1

2120032000
ref: 1-1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 90.00

1-2

2120032200
ref: 1-2

GEAR ASSEMBLY,PRIMARY DRIVE

€ 128.50

2

0918023001
ref: 2

SPACER

€ 10.50

3

0916023005
ref: 3

WASHER

€ 0.00

4

0916722008
ref: 4

WASHER

€ 2.50

5

0926330003
ref: 5

BEARING

€ 37.50

6

0920203015
ref: 6

PIN

€ 1.00

7

2141116500
ref: 7

HUB,CLUTCH SLEEVE

€ 40.50

8

2144116500
ref: 8
21442-37401

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

9

2145131000
ref: 9

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

10

2146216500
ref: 10
21462-14301

DISC,CLUTCH PRESSURE

€ 51.00

11

0944019003
ref: 11
09440-19027

SPRING

€ 5.50

12

0111206168
ref: 12
01500-06167

BOLT

€ 3.00

13

0914022003
ref: 13

NUT

€ 10.00

14

0916722005
ref: 14

WASHER,LOCK

€ 2.50

15

0916006020
ref: 15
09160-06066

WASHER

€ 2.00

16

2316516500
ref: 16
23165-16502

RACK,CLUTCH RELEASE

€ 23.00

17

0926315003
ref: 17

BEARING(15X28X2)

€ 7.00

18

0916015015
ref: 18
09160-15045

WASHER

€ 4.00

19

0833211128
ref: 19
08332-1112A

E RING 12MM

€ 2.00

20

2326116500
ref: 20
23261-16501

PINION,CLUTCH RELEASE

€ 40.50

21

0928512002
ref: 21
09285-12006

OIL SEAL

€ 7.00

22

0913506009
ref: 22

BOLT(6X12)

€ 2.00

23

0832221068
ref: 23
08322-01067

WASHER

€ 2.00

24

2327116500
ref: 24
23271-45400

ARM,CLUTCH RELEASE

€ 31.50

25

0111206258
ref: 25
01500-06257

BOLT

€ 2.00

26

0832221068
ref: 26
08322-01067

WASHER

€ 2.00

27

0831111068
ref: 27
08310-00067

NUT

€ 2.50

all assemblies
