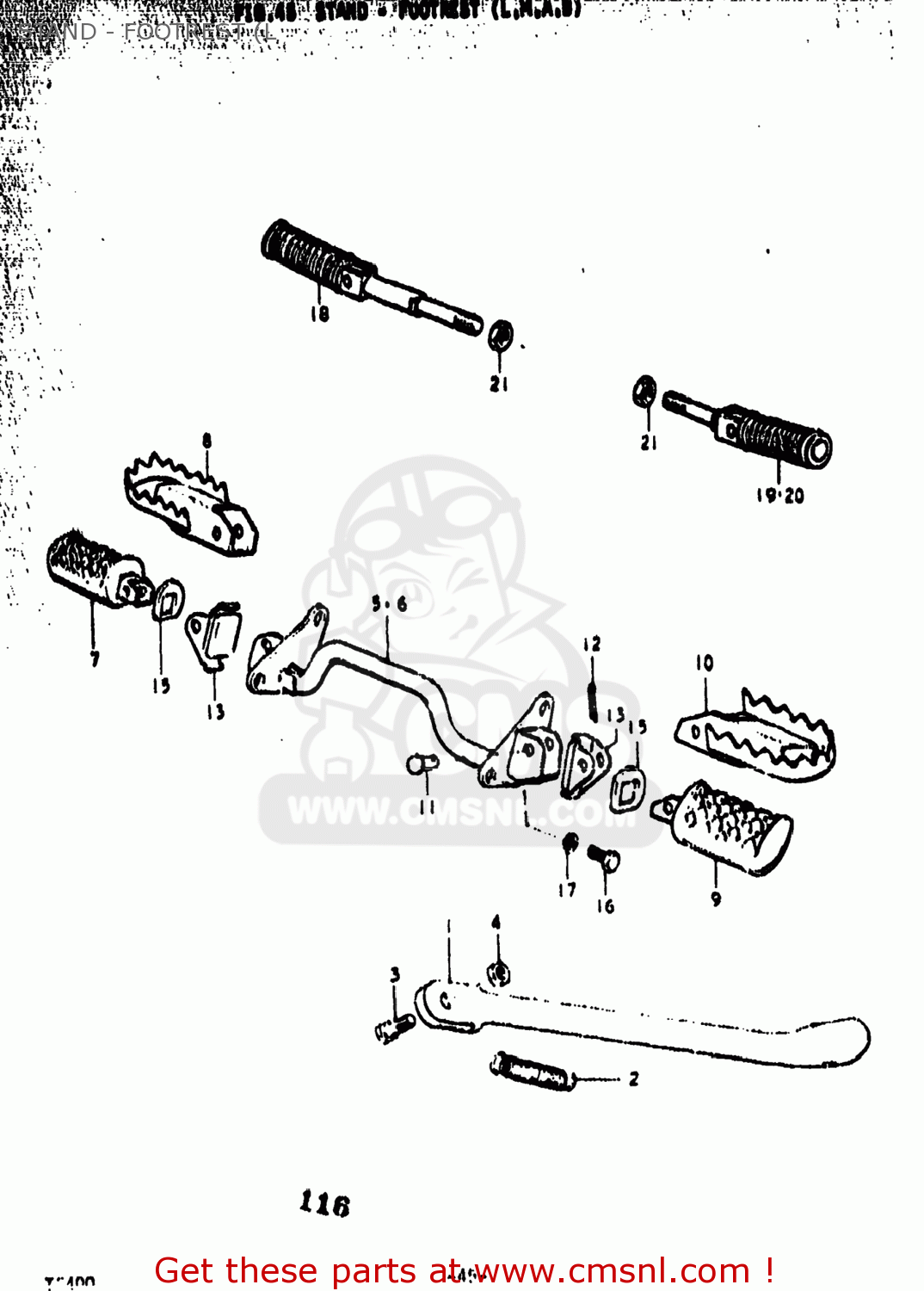

STAND - FOOTREST (L - TS400 1977 (B) USA (E03)

ref

part #

description

quantity

1-1

4231016500
ref: 1-1
42310-41100

STAND,SIDE

€ 33.50

1-2

4231041100
ref: 1-2

STAND,PROP

€ 33.50

2

0944314005
ref: 2
09443-14017

SPRING

€ 6.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831232108
ref: 4
08310-00107

NUT

€ 2.50

5

4351032200
ref: 5

BAR,FRONT FOOTREST

€ 18.50

6-1

4351032201
ref: 6-1

BAR,FRONT FOOTREST

€ 1.50

6-2

4351032202
ref: 6-2
43510-32203

BAR,FRONT FOOTREST

€ 1.50

7

4355025301
ref: 7

RUBBER,FOOTREST,RIGHT

€ 34.50

8

4355025302
ref: 8

RUBBER,FOOTREST,RIGHT

€ 13.00

9

4356025301
ref: 9

RUBBER,FOOTREST,LEFT

€ 34.50

10

4356025302
ref: 10

RUBBER,FOOTREST,LEFT

€ 17.50

11-1

0920008011
ref: 11-1

PIN

€ 1.50

11-2

0920008002
ref: 11-2

PIN

€ 2.00

12

0411120158
ref: 12
04111-2015A

PIN

€ 1.50

13

4357032200
ref: 13

CUSHION,FRONT FOOTREST

€ 8.00

14

0944814012
ref: 14

SPRING

€ 3.00

15

4358125300
ref: 15

WASHER

€ 5.00

16

0112208208
ref: 16
01500-08207

BOLT

€ 3.00

17

0832131088
ref: 17
08321-01087

WASHER,LOCK,8.

€ 2.00

18

4360032200
ref: 18

FOOTREST ASSEMBLY,PILLION

€ 9.00

19

4360036200
ref: 19

FOOTREST ASSY,PILLION

€ 31.00

20

4360028000
ref: 20

FOOTREST ASSEMBLY,REAR

€ 21.00

21

0831231128
ref: 21
09140-12039

NUT

€ 3.00

STAND - FOOTREST (L
