TRANSMISSION
TS400 1977 (B) USA (E03)

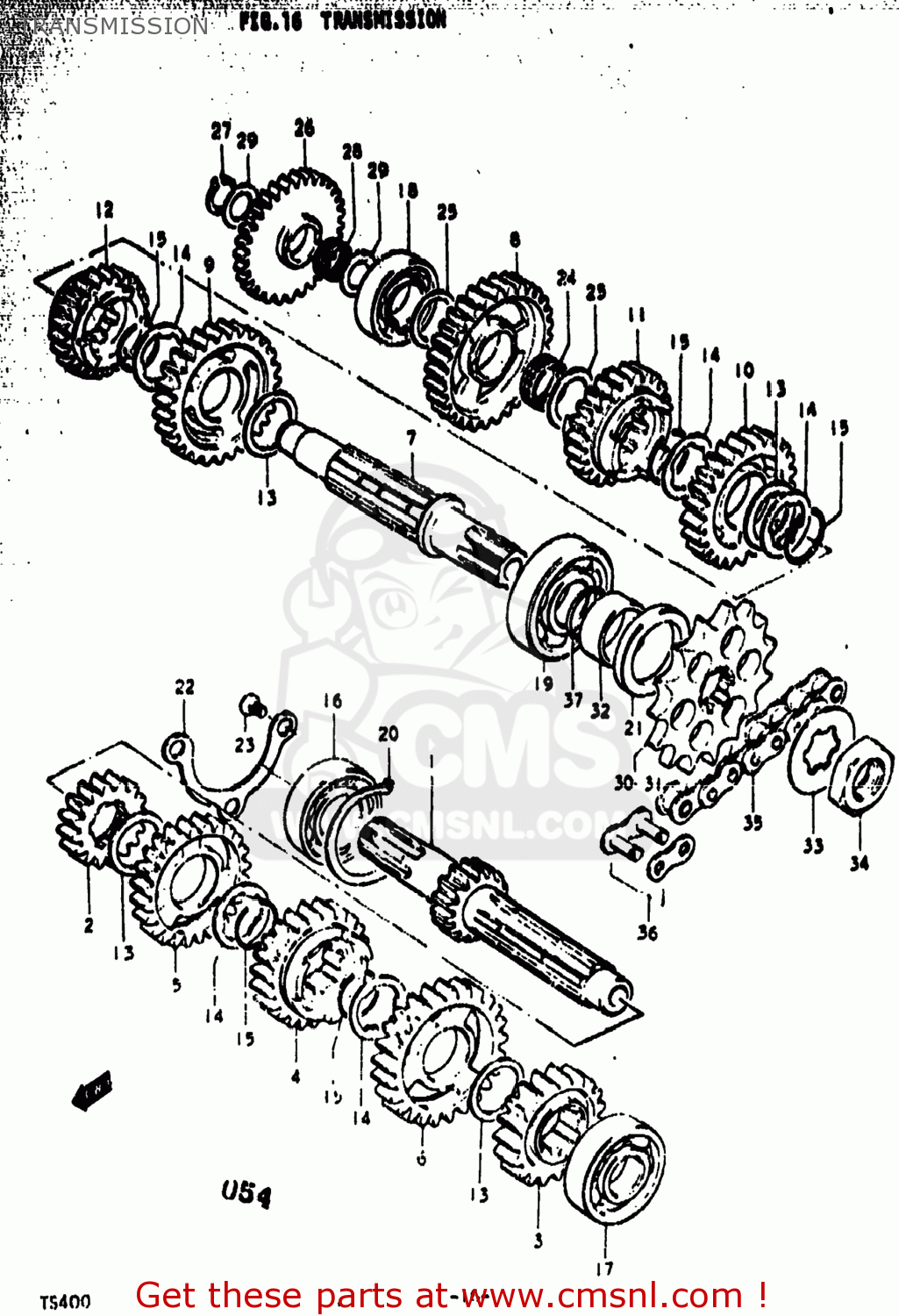

Transmission diagram TS400 1977 (B) USA (E03)
TRANSMISSION TS400 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412132001
ref: 1
SHAFT,COUNTER
€ 68.00
2
2421132000
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 14.00
3
2422116500
ref: 3
GEAR,SECOND DRIVE
€ 21.50
4
2423116500
ref: 4
GEAR,THIRD DRIVE
€ 35.50
5
2424016500
ref: 5
GEAR,FOURTH DRIVE
€ 45.50
6-1
2425016500
ref: 6-1
GEAR,FIFTH DRIVE
€ 39.00
6-2
2425032200
ref: 6-2
GEAR,FIFTH DRIVE
€ 27.00
7-1
2413116501
ref: 7-1
SHAFT,DRIVE
€ 112.00
7-2
2413132000
ref: 7-2
SHAFT,DRIVE
€ 61.00
8
2431132001
ref: 8
GEAR,FIRST DRIVEN
€ 39.00
9
2432016500
ref: 9
GEAR,SECOND DRIVEN
€ 36.00
10
2433116501
ref: 10
GEAR,THIRD DRIVEN
€ 63.00
11
2434116500
ref: 11
GEAR,FOURTH DRIVEN
€ 26.50
12
2435116500
ref: 12
GEAR,FIFTH DRIVEN
€ 27.50
13
0821125321
ref: 13
WASHER
€ 3.00
14
0916725006
ref: 14
09167-25012
WASHER
€ 3.00
15
0938025006
ref: 15
RING,SNAP
€ 2.00
16
0814262050
ref: 16
08142-62057
BEARING
€ 18.00
17
0811362040
ref: 17
09262-20069
Bearing
€ 28.00
18
0811362040
ref: 18
09262-20069
Bearing
€ 28.00
19
0926222006
ref: 19
09262-22025
BEARING
€ 63.50
20
0938152006
ref: 20
CIRCLIP
€ 2.00
21
0928332003
ref: 21
SEAL,OIL(32X42X6)
€ 3.50
22
2474116500
ref: 22
RETAINER,BEARING
€ 0.00
23
0212206128
ref: 23
02122-06127
SCREW
€ 3.00
24
0926320011
ref: 24
BEARING
€ 15.50
25
0916020004
ref: 25
WASHER (20X30X1)
€ 2.50
26
2626116500
ref: 26
GEAR,KICK STARTER IDLE
€ 41.00
27
0938017001
ref: 27
CIRCLIP
€ 2.00
28
0926317004
ref: 28
BEARING(17X21X9.8)
€ 7.00
29
0821117241
ref: 29
WASHER
€ 2.00
30-1
2751118720
ref: 30-1
SPROCKET,ENGINE
€ 18.00
30-2
2751118000
ref: 30-2
SPROCKET,ENGINE
€ 27.50
30-3
2751118710
ref: 30-3
SPROCKET,ENGINE
€ 39.00
30-4
2751132000
ref: 30-4
SPROCKET,ENGINE
€ 51.50
31
2751130710
ref: 31
SPROCKET,ENGINE
€ 22.50
32
0918022005
ref: 32
SPACER (22X32X13.4)
€ 4.50
33-1
0916722005
ref: 33-1
WASHER,LOCK
€ 2.50
33-2
0916722012
ref: 33-2
WASHER,LOCK
€ 1.50
34-1
0914022003
ref: 34-1
NUT
€ 10.00
34-2
0914018006
ref: 34-2
NUT
€ 4.50
35
2760032012
ref: 35
27600-16410
CHAIN ASSEMBLY,DRIVE
€ 55.00
36
2762032011
ref: 36
JOINT ASSEMBLY,CHAIN
€ 0.00
37
0928022003
ref: 37
O RING(D:1.7,ID:22)
€ 2.50
up
all assemblies
