OIL TANK

TS400 1977 (B) USA (E03)

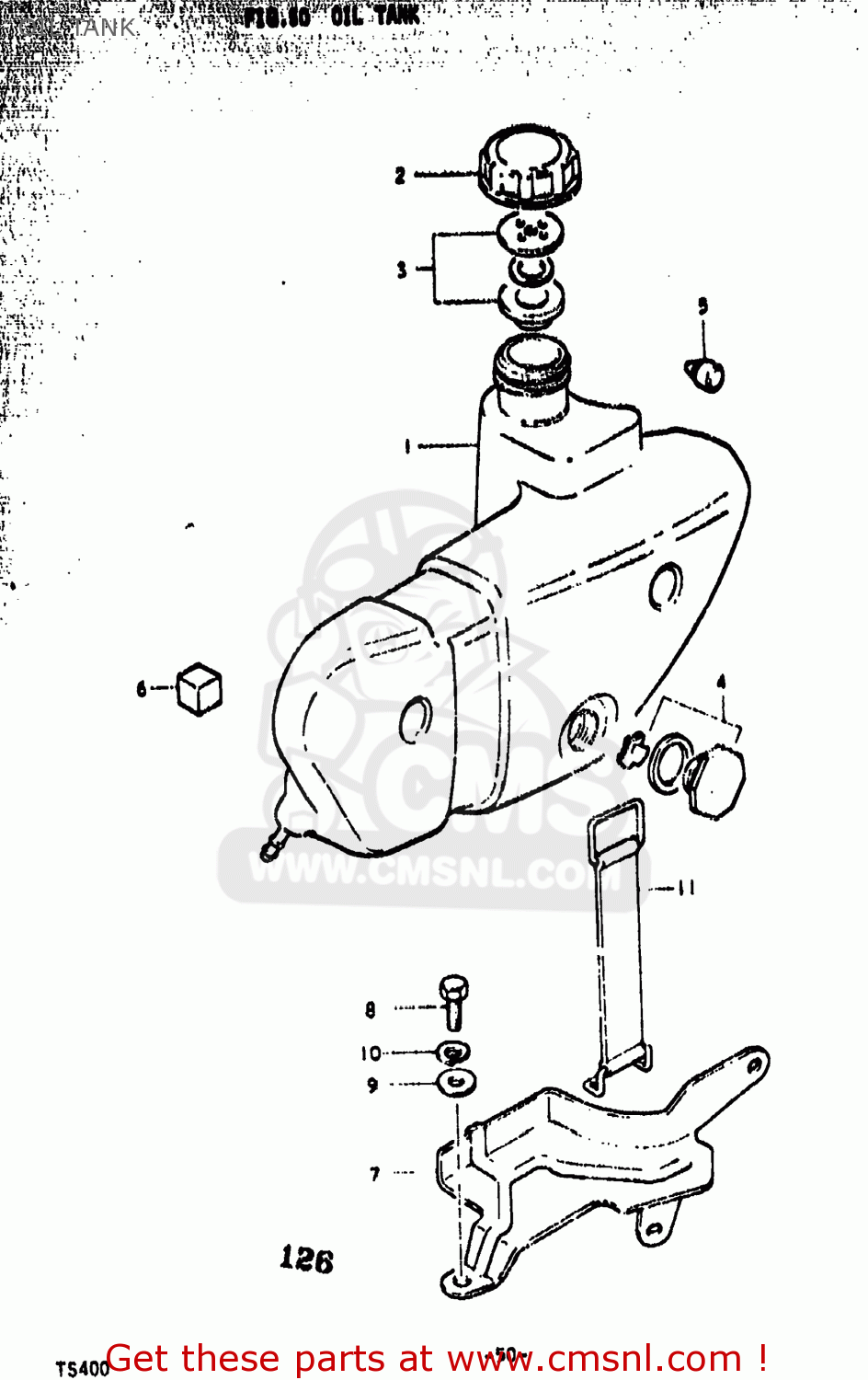

Oil tank diagram TS400 1977 (B) USA (E03)

OIL TANK TS400 1977 (B) USA (E03)

OIL TANK TS400 1977 (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4461132000
ref: 1

TANK,OIL

€ 32.50

2

4465105001
ref: 2
44651-05003

CAP,OIL TANK

€ 4.00

3-1

4466033808
ref: 3-1
44600-30832

GASKET SET,OIL TANK CAP

€ 6.00

3-2

4460035821
ref: 3-2
44600-30832

LENS,OIL LEVEL INSPECTION

€ 6.00

4-1

4464031807
ref: 4-1
44600-31831

LENS SET,OIL LEVEL

€ 18.00

4-2

4460031830
ref: 4-2
44600-31831

LENS,OIL LEVEL INSPECTION

€ 18.00

5

0932108013
ref: 5

CUSHION

€ 0.00

6

4462932200
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.00

7

4482032000
ref: 7

HOLDER, OIL TANK

€ 0.00

8

0111206128
ref: 8
01500-06127

BOLT

€ 2.00

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0832121068
ref: 10
08321-01067

LOCK WASHER

€ 2.50

11

0946200005
ref: 11

BAND

€ 3.00
