BATTERY
VL1500 INTRUDER 2001 (K1) USA (E03)

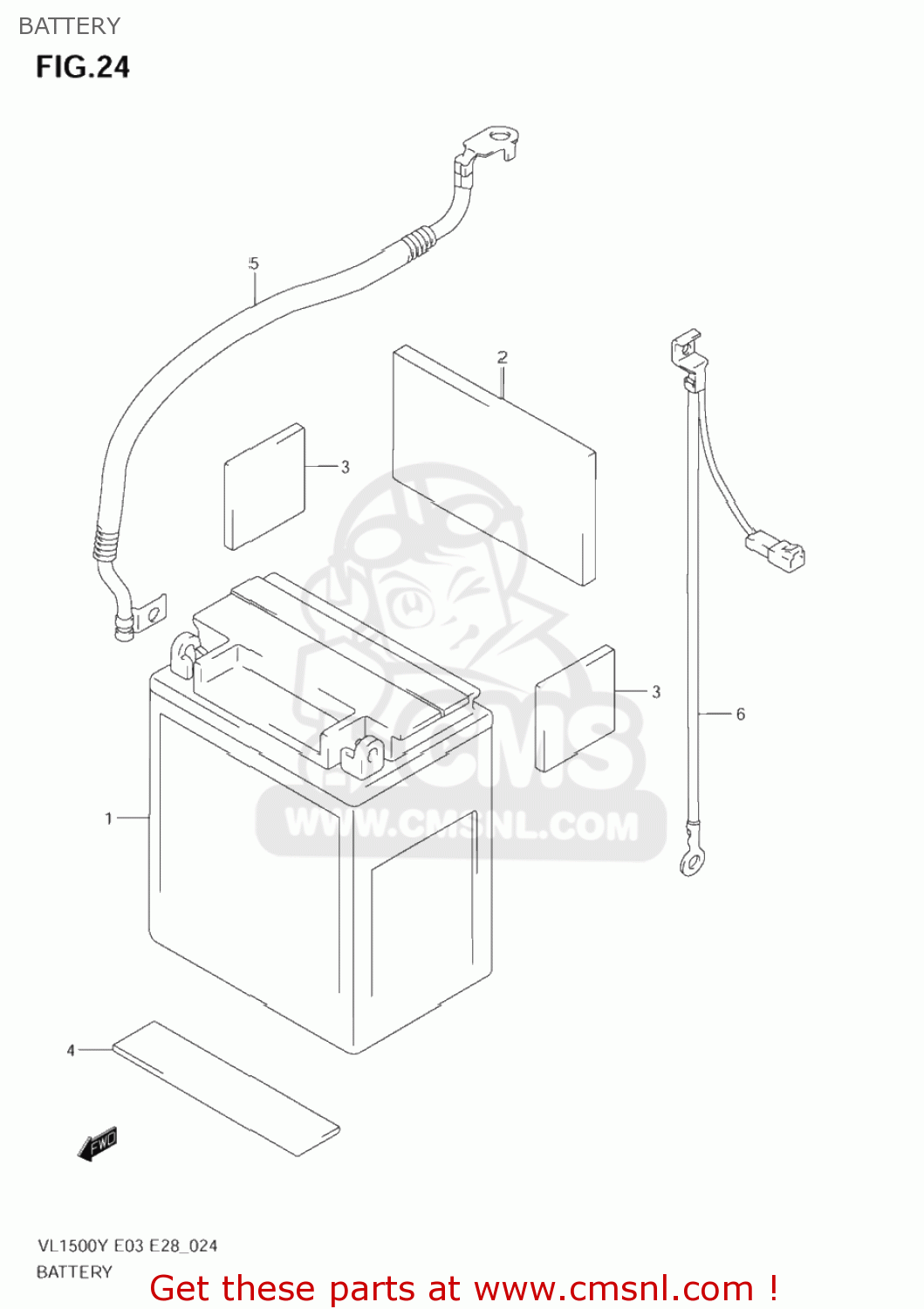

Battery diagram VL1500 INTRUDER 2001 (K1) USA (E03)
BATTERY VL1500 INTRUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361038B50
ref: 1
BATTERY ASSEMBLY 12V14AH,F
€ 74.50
2
3365220C00
ref: 2
PROTECTOR(50X50X5)
€ 2.50
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
4-1
3365219B00
ref: 4-1
CUSHION,BATTERY(80X27X3)
€ 4.50
4-2
3365241B00
ref: 4-2
33652-19B00
PROTECTOR,BATTE
€ 4.50
5
3382010F00
ref: 5
WIRE,BATTERY PLUS LEAD
€ 30.00
6-1
3386010F00
ref: 6-1
WIRE,BATTERY MINUS LEAD
€ 41.50
6-2
3386010F10
ref: 6-2
WIRE,BATTERY MINUS LEAD
€ 35.50
