WIRING HARNESS (MODEL K3/K4)

VL1500 INTRUDER 2001 (K1) USA (E03)

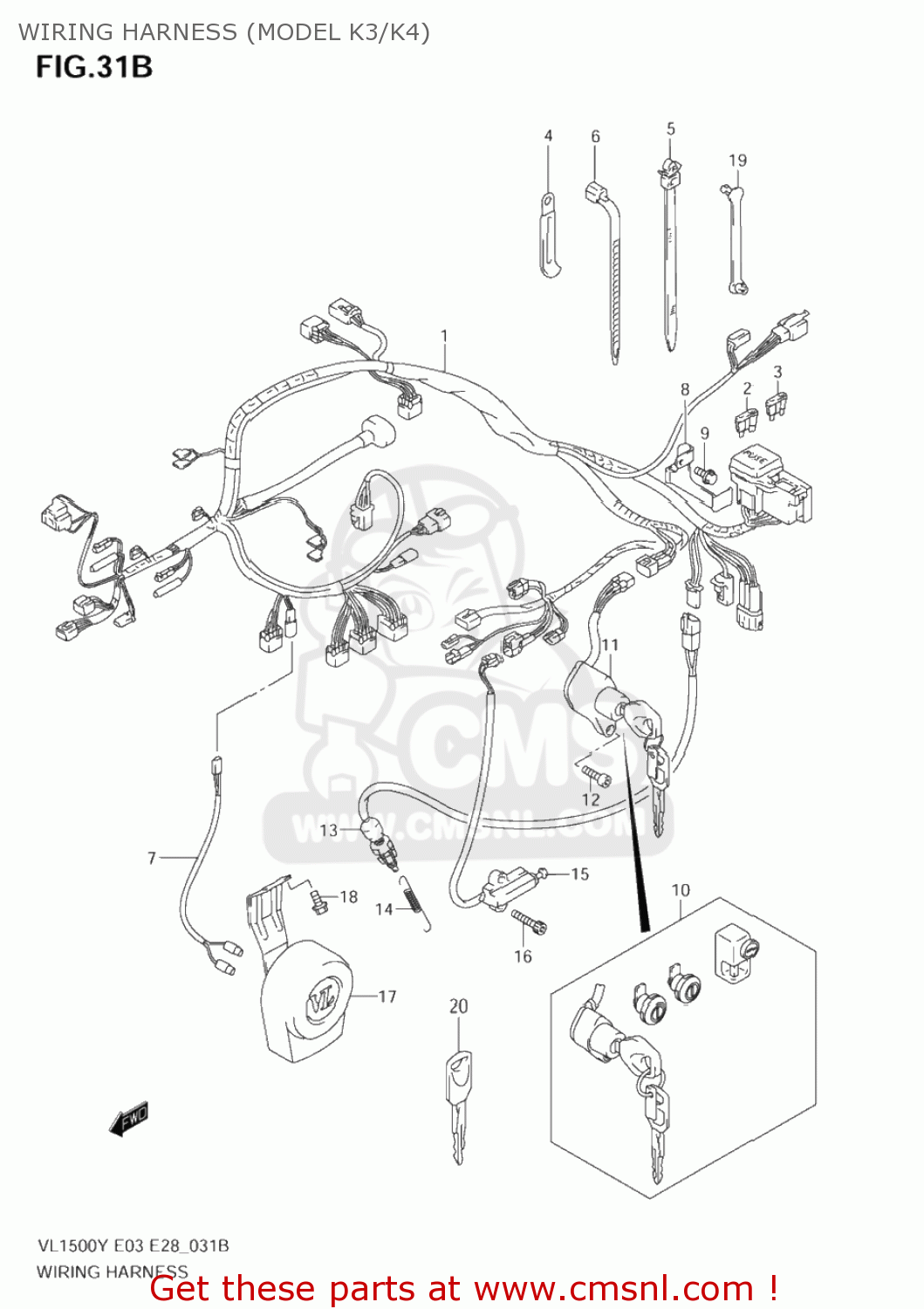

Wiring harness (model k3/k4) diagram VL1500 INTRUDER 2001 (K1) USA (E03)

WIRING HARNESS (MODEL K3/K4) VL1500 INTRUDER 2001 (K1) USA (E03)

WIRING HARNESS (MODEL K3/K4) VL1500 INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3661010F90
ref: 1-1

HARNESS,WIRING

€ 525.00

1-2

3661010FB0
ref: 1-2

HARNESS,WIRING

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3-1

0948115501
ref: 3-1

FUSE(15A)

€ 1.00

3-2

0948115501
ref: 3-2

FUSE(15A)

€ 1.00

4

0940406433
ref: 4

CLAMP(L:80)

€ 3.00

5

0940711402
ref: 5

CLAMP(L:90)

€ 2.50

6-1

0940714403
ref: 6-1

CLAMP(L:125)

€ 2.50

6-2

0940725401
ref: 6-2

CLAMP(L:235)

€ 4.00

6-3

0940718402
ref: 6-3

CLAMP(L:165)

€ 2.50

7

3685221E10
ref: 7

WIRE,HORN LEAD

€ 14.00

8

3674410F00
ref: 8

BRACKET,FUSE

€ 6.00

9

0155006123
ref: 9
01550-0612A

BOLT

€ 2.50

10

3710026880
ref: 10
37000-26832

LOCK SET

€ 285.00

11

3711026F20
ref: 11
37110-26F02

SWITCH ASSY,IG

€ 95.00

12

0713006163
ref: 12
07130-0616B

BOLT,OIL FILLE

€ 3.00

13

3774010F00
ref: 13

SWITCH ASSY,STOP LAMP

€ 33.50

14

4313910F00
ref: 14

SPRING,STOP LAMP SWITCH

€ 7.00

15

3784010F00
ref: 15

SWITCH ASSY,SIDE STAND

€ 101.50

16

0214206203
ref: 16
02142-0620A

SCREW

€ 2.00

17

3850010F00
ref: 17

HORN ASSY

€ 102.50

18

0155006163
ref: 18
01550-0616A

BOLT

€ 2.50

19

0940703401
ref: 19

CLAMP(L:33)

€ 3.50

20

3714648E00
ref: 20
37146-48E10

KEY,BLANK

€ 21.00
