REAR FENDER (MODEL K3/K4)

VL1500 INTRUDER 2001 (K1) USA (E03)

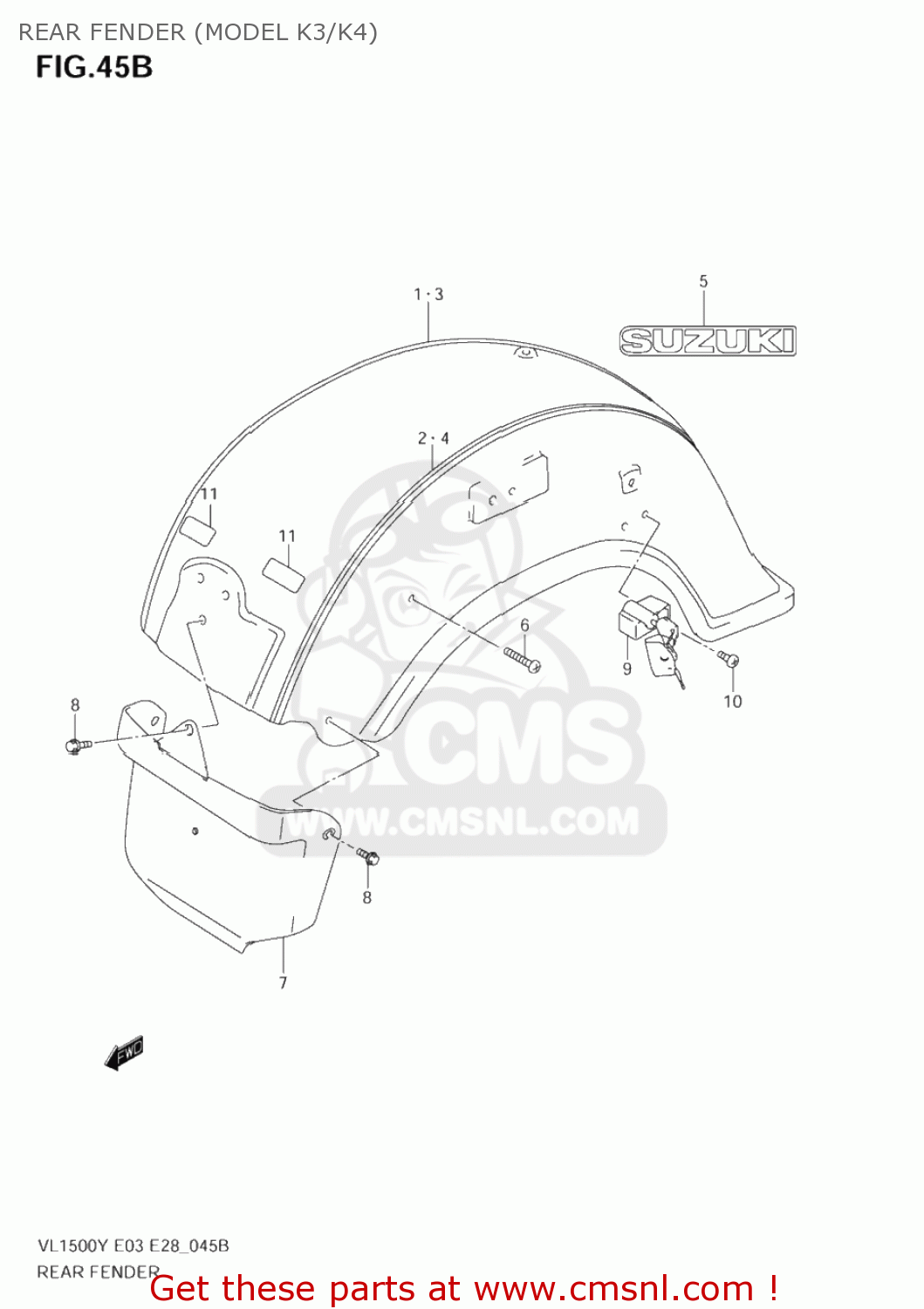

Rear fender (model k3/k4) diagram VL1500 INTRUDER 2001 (K1) USA (E03)

REAR FENDER (MODEL K3/K4) VL1500 INTRUDER 2001 (K1) USA (E03)

REAR FENDER (MODEL K3/K4) VL1500 INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6310010F1033J
ref: 1-1

FENDER ASSY,RR(BLACK)

€ 0.00

1-2

6310010F10LA1
ref: 1-2

FENDER ASSY,RR

€ 0.00

1-3

6310010F10LT9
ref: 1-3

FENDER ASSY,RR

€ 0.00

2-1

6817010F10LW9
ref: 2-1

TAPE SET,RR FENDER

€ 76.50

2-2

6817010F10LA1
ref: 2-2

TAPE SET,RR FENDER

€ 58.50

2-3

6817010F10LT9
ref: 2-3

TAPE SET,RR FENDER

€ 58.50

3-1

6310010F50YAY
ref: 3-1
63100-10F51-YAY

FENDER, REAR (BLACK)

€ 833.50

3-2

6310010F50AAV
ref: 3-2

FENDER ASSY,RR

€ 0.00

3-3

6310010F50AAW
ref: 3-3
63100-10F51-AAW

FENDER, REAR

€ 933.00

4-1

6817010F20ADH
ref: 4-1

TAPE SET,RR FENDER

€ 82.50

4-2

6817010F20ADJ
ref: 4-2

TAPE SET,RR FENDER

€ 82.50

4-3

6817010F20ADC
ref: 4-3

TAPE SET,RR FENDER

€ 82.50

5-1

6817126F00ACV
ref: 5-1

EMBLEM,SUZUKI

€ 5.50

5-2

6817126F00ADF
ref: 5-2

EMBLEM

€ 6.00

5-3

6817126F00ADG
ref: 5-3

EMBLEM

€ 5.50

6

0910608156
ref: 6

BOLT(8X37)

€ 8.50

7

6341110F01
ref: 7

MUDGUARD,RR FENDER FR

€ 24.00

8

0911306001
ref: 8

BOLT(6X16)

€ 3.00

9

9570010840
ref: 9
95700-10841

LOCK SET,HELMET

€ 83.00

10

0913906089
ref: 10

SCREW(6X14)

€ 2.50

11

6313110F00
ref: 11

TAPE,RR FENDER

€ 6.00
