Buy Suzuki VL Parts Online


HANDLE SWITCH (MODEL K4)

VL1500 INTRUDER 2001 (K1) USA (E03)

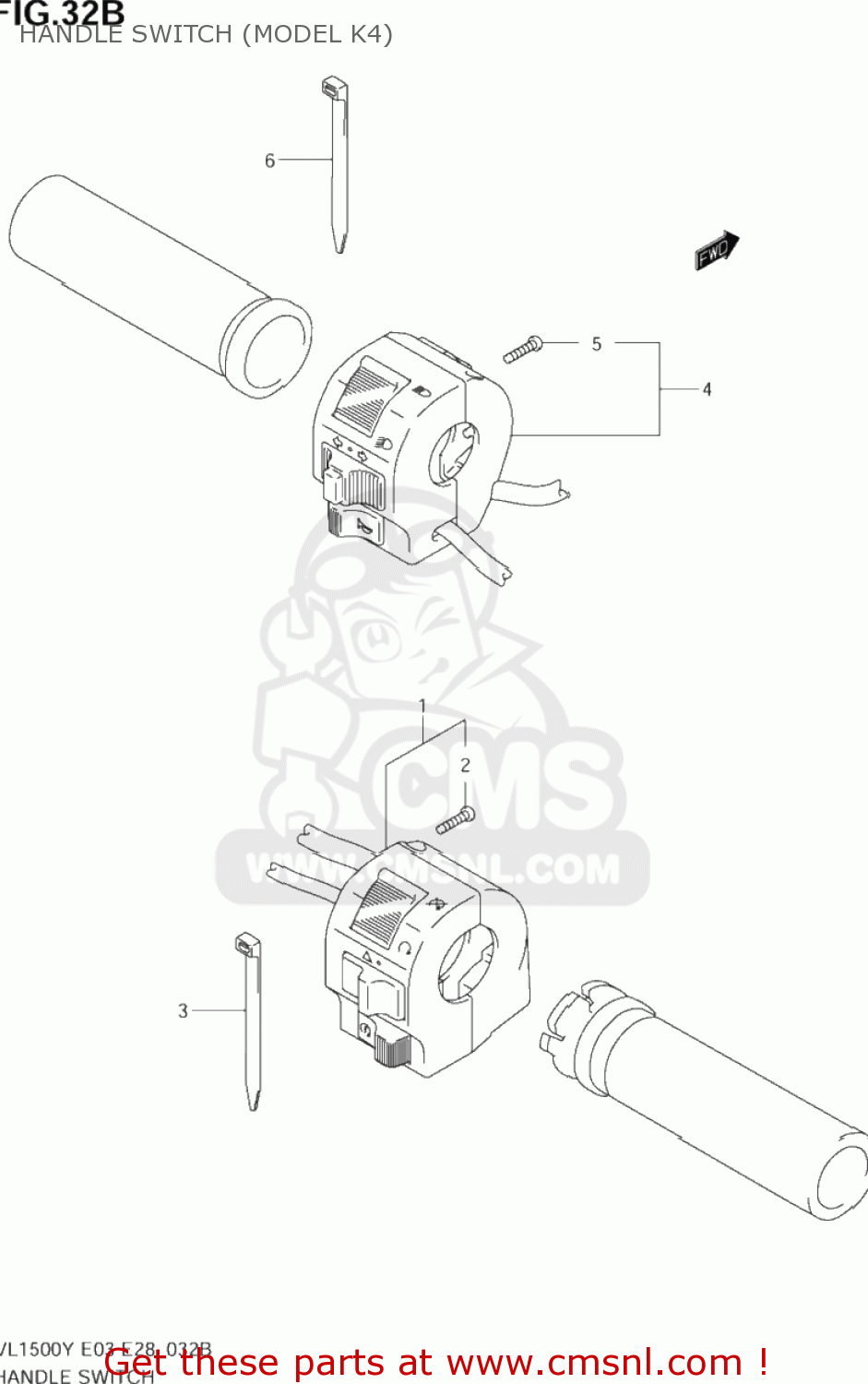

Handle switch (model k4) diagram VL1500 INTRUDER 2001 (K1) USA (E03)

HANDLE SWITCH (MODEL K4) VL1500 INTRUDER 2001 (K1) USA (E03)
HANDLE SWITCH (MODEL K4) VL1500 INTRUDER 2001 (K1) USA (E03)
HANDLE SWITCH (MODEL K4) VL1500 INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3720048E90
ref: 1
SWITCH ASSY,HANDLE,R
3720048E90
€ 232.00
2
0211205167
ref: 2
SCREW
0211205167
€ 2.50
3
0940714407
ref: 3
CLAMP(L:145)
0940714407
€ 4.00
4
3740010F60
ref: 4
SWITCH ASSY,HANDLE,L
€ 220.00
5
0211205167
ref: 5
SCREW
0211205167
€ 2.50
6
0940714407
ref: 6
CLAMP(L:145)
0940714407
€ 4.00
