STARTING MOTOR (MODEL W/X/Y/K1/K2)

VL1500 INTRUDER 2001 (K1) USA (E03)

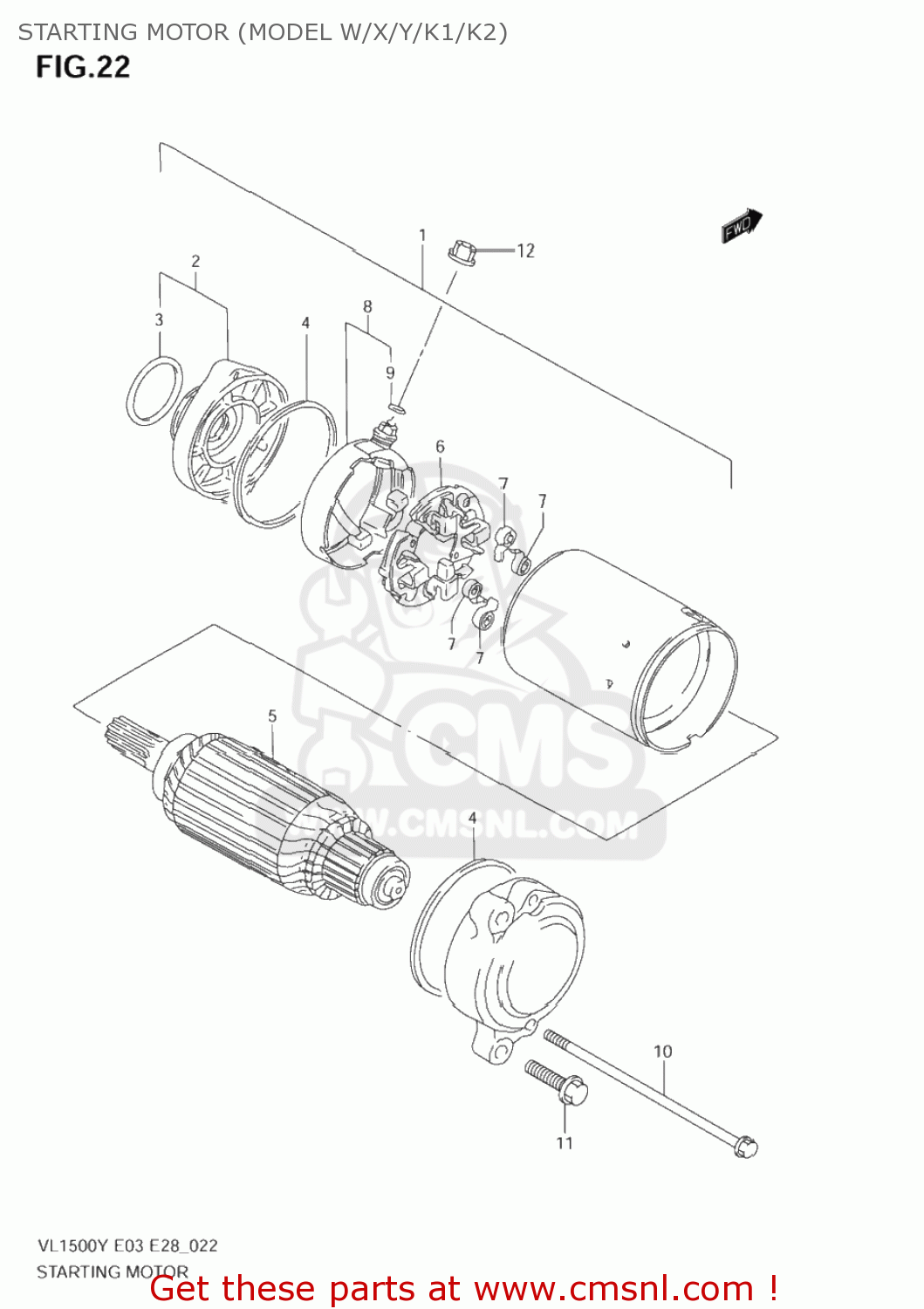

Starting motor (model w/x/y/k1/k2) diagram VL1500 INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110038B02
ref: 1

MOTOR ASSY,STARTING

€ 973.50

3115038B00
ref: 2

BRACKET SET

€ 114.50

3115638B00
ref: 3
09280-35005

O-RING

€ 9.50

3126431300
ref: 4
31264-32E00

O RING

€ 7.50

3131038B01
ref: 5

ARMATURE

€ 278.50

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 9

O RING

€ 3.00

3128124B10
ref: 10

BOLT

€ 5.00

0154706257
ref: 11

BOLT

€ 2.50

0836135068
ref: 12
08361-3506A

NUT

€ 2.00
