REAR MASTER CYLINDER (MODEL K2/K3/K4)

VL1500 INTRUDER 2001 (K1) USA (E03)

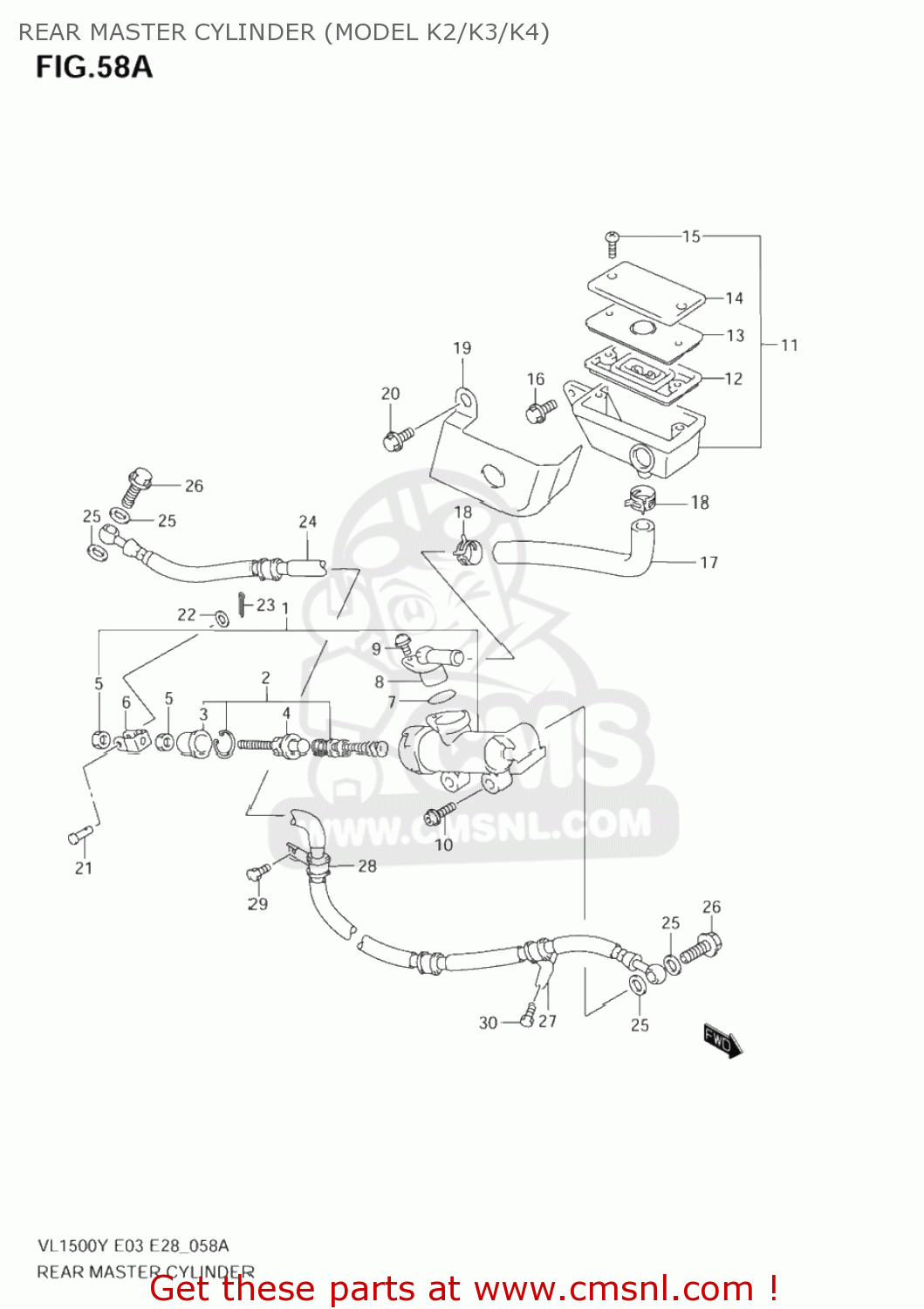

Rear master cylinder (model k2/k3/k4) diagram VL1500 INTRUDER 2001 (K1) USA (E03)

REAR MASTER CYLINDER (MODEL K2/K3/K4) VL1500 INTRUDER 2001 (K1) USA (E03)

REAR MASTER CYLINDER (MODEL K2/K3/K4) VL1500 INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960010F00
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6967000B21
ref: 4

ROD,PUSH

€ 24.00

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969227A30
ref: 6

YOKE

€ 12.50

7

6968634200
ref: 7

O RING

€ 3.50

8

6967205A00
ref: 8

CONNECTOR

€ 4.50

9

0211274123
ref: 9
02112-7412A

SCREW

€ 2.50

10

0712006163
ref: 10
07120-0616B

BOLT MAGNETO S

€ 2.50

11

6974010F00
ref: 11

TANK ASSY,RR RESERVOIR

€ 98.50

12

5966749460
ref: 12

5966749460

13

5966841C00
ref: 13

PLATE,DIAPHRAGM

€ 8.00

14

5966941C00
ref: 14

CAP

€ 30.00

15

6968949300
ref: 15

SCREW

€ 1.50

16

0155006163
ref: 16
01550-0616A

BOLT

€ 2.50

17

6973110F00
ref: 17

HOSE,RESERVOIR TANK

€ 14.50

18

0940113417
ref: 18

CLIP

€ 2.50

19

6979510F00
ref: 19

COVER,RESERVOIR TANK

€ 17.50

20

0155006103
ref: 20
01550-0610A

BOLT

€ 2.50

21

0920006037
ref: 21
09200-06068

PIN

€ 5.00

22

0832201063
ref: 22
08322-0106B

WASHER

€ 2.00

23

0411120158
ref: 23
04111-2015A

PIN

€ 1.50

24

6948010F10
ref: 24

HOSE,RR BRAKE

€ 121.50

25

0916110009
ref: 25

WASHER(10X15X1.5)

€ 2.00

26

0936010042
ref: 26
09360-10062

BOLT UNION

€ 5.00

27

6926810F00
ref: 27

CLAMP,RR BRAKE HOSE NO.1

€ 7.00

28

5926801D10
ref: 28

CLAMP,FRONT BRAKE NO.2

€ 6.00

29

0216206123
ref: 29
02162-0612A

BOLT

€ 1.50

30

0155006163
ref: 30
01550-0616A

BOLT

€ 2.50
