REAR CALIPER (MODEL X/Y/K1)

VL1500 INTRUDER 2001 (K1) USA (E03)

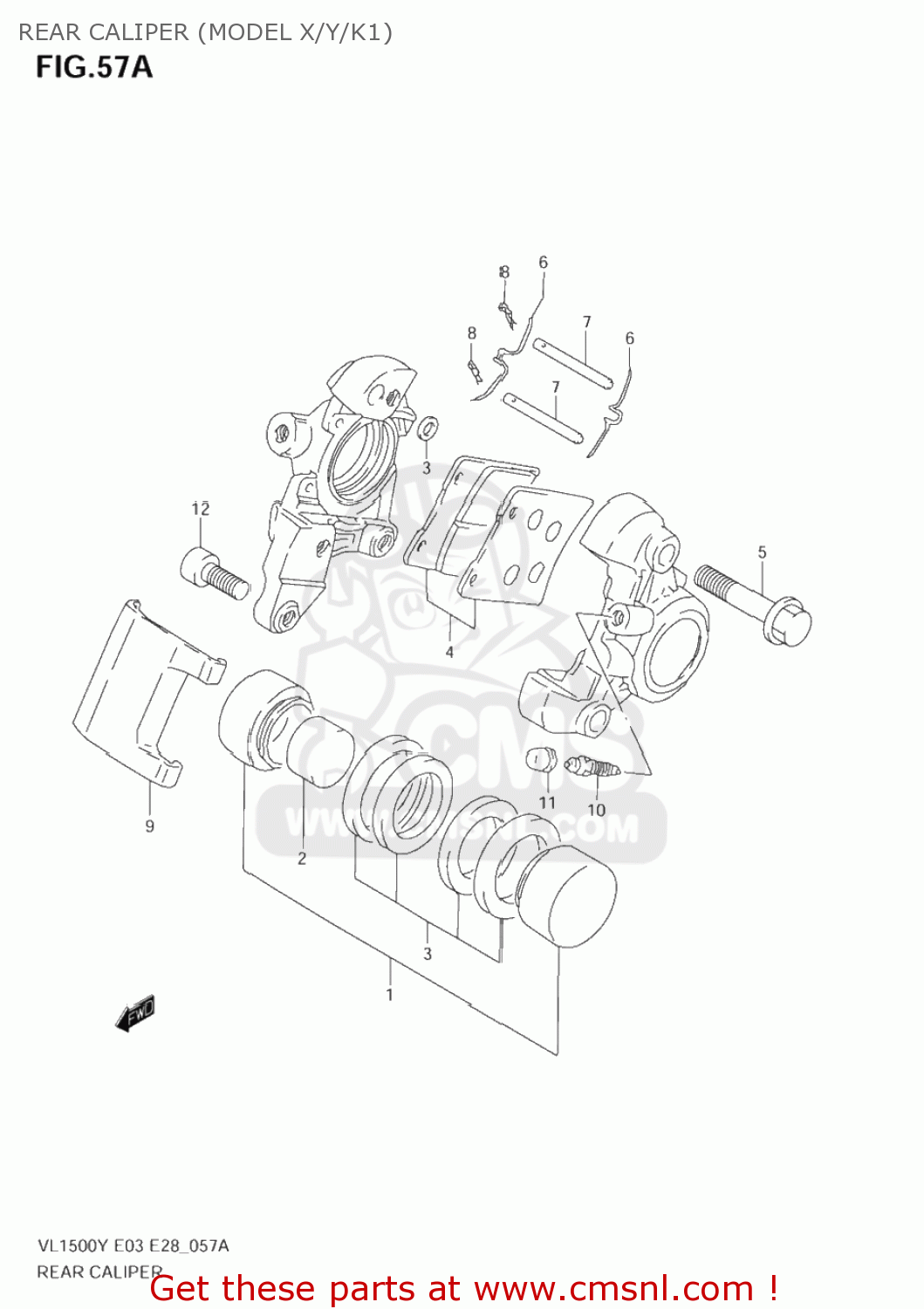

Rear caliper (model x/y/k1) diagram VL1500 INTRUDER 2001 (K1) USA (E03)

REAR CALIPER (MODEL X/Y/K1) VL1500 INTRUDER 2001 (K1) USA (E03)
REAR CALIPER (MODEL X/Y/K1) VL1500 INTRUDER 2001 (K1) USA (E03)
REAR CALIPER (MODEL X/Y/K1) VL1500 INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity

6910038B40
ref:
69100-38B50-999
CALIPER ASSEMBLY,REAR
€ 707.00

6910038B40
ref:
69100-38B50-999
CALIPER ASSEMBLY,REAR
€ 707.00

6910038B50
ref:
69100-38B50-999
CALIPER ASSY,R
€ 707.00

6910038B50
ref:
69100-38B50-999
CALIPER ASSY,R
€ 707.00

6910038B50
ref:
69100-38B50-999
CALIPER ASSY,R
€ 707.00
1
6910038850
ref: 1
69100-38851
PISTON SET
€ 176.00
2
6912610F00
ref: 2
INSULATOR,PISTON
6912610F00
€ 17.50
3
6910038830
ref: 3
69100-38831
SEAL SET,PISTON
6910038830
€ 38.50
4-1
6910038860
ref: 4-1
69100-38870
PAD SET (NAS)
6910038860
€ 57.50
4-2
6910038870
ref: 4-2
PAD SET (NAS)
6910038870
€ 57.50
5
5914516700
ref: 5
BOLT,HOUSING
5914516700
€ 8.00
6
5914316700
ref: 6
SPRING
5914316700
€ 7.50
7
6914145000
ref: 7
PIN,PAD
6914145000
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
6914245000
€ 4.50
9-1
5915124A00
ref: 9-1
COVER
5915124A00
€ 18.00
9-2
5915124A01
ref: 9-2
COVER
5915124A01
€ 18.00
10
5912118410
ref: 10
BLEEDER
5912118410
€ 8.00
11
5515666310
ref: 11
CAP,BLEEDER PLUG
5515666310
€ 6.00
12
0713010203
ref: 12
07130-1020B
BOLT
0713010203
€ 3.50
