VL1500B INTRUDER 1999 (X) USA (E03)

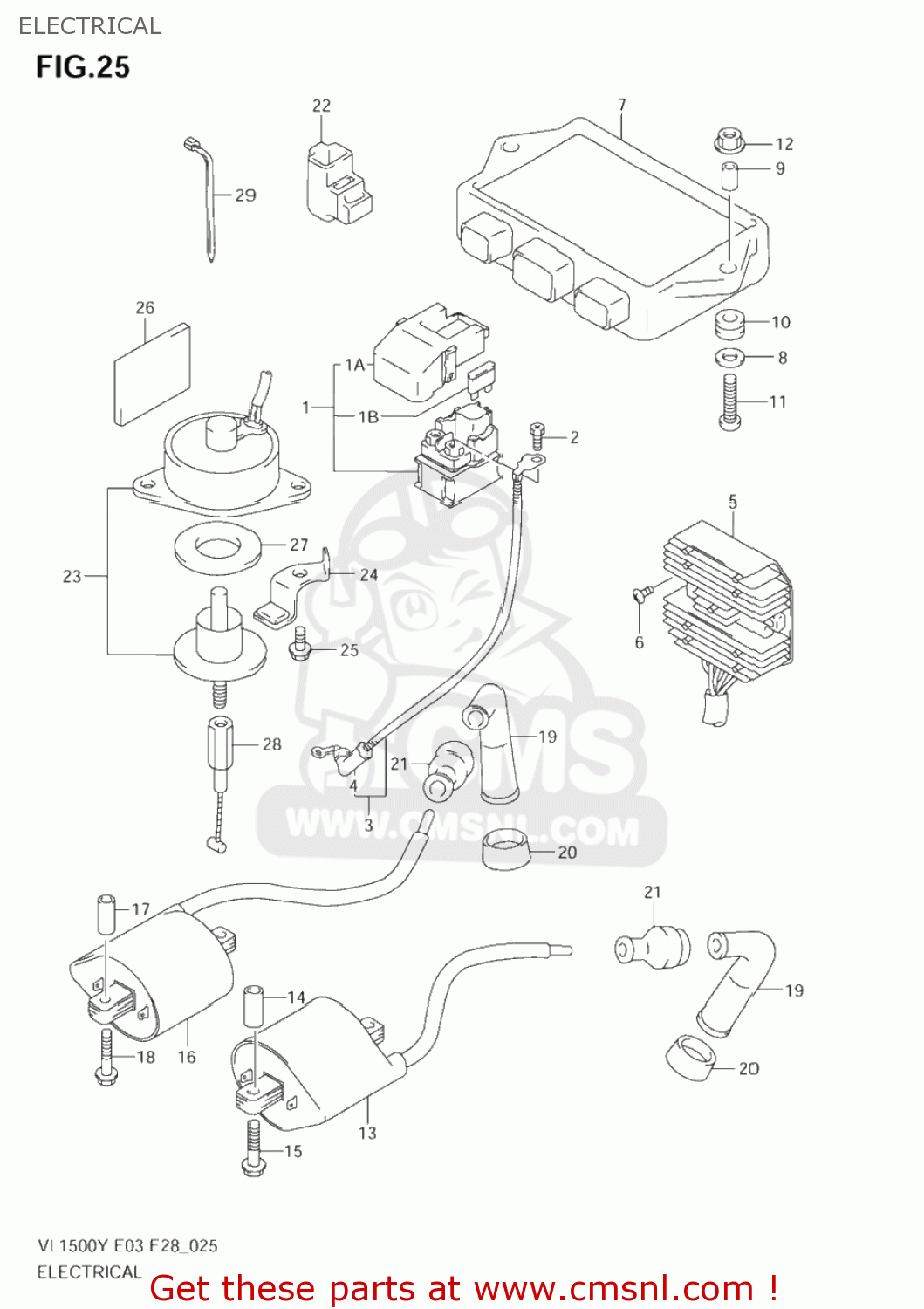

Electrical diagram VL1500B INTRUDER 1999 (X) USA (E03)
ELECTRICAL VL1500B INTRUDER 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
€ 69.00
1A
3186121E20
ref: 1A
31861-47E00
COVER,RELAY ASSEMBLY
€ 10.50
1B
0948130101
ref: 1B
FUSE(30A)
€ 6.00
2
0912806013
ref: 2
SCREW(6X8)
€ 1.50
3
3381010F00
ref: 3
WIRE,STARTER MOTOR LEAD
€ 29.00
4
3186148B10
ref: 4
CAP,STARTER MOTOR LEAD
€ 4.50
5
3280033E00
ref: 5
32800-44D11
RECTIFIER ASSEMBLY
€ 368.00
6
0214206253
ref: 6
02142-0625A
SCREW
€ 1.50
7-1
3290010F10
ref: 7-1
IGNITOR ASSY
€ 0.00
7-2
3290010F60
ref: 7-2
IGNITOR ASSY
€ 0.00
8
0916006066
ref: 8
WASHER(6.5X20X1.6)
€ 2.00
9
0918006248
ref: 9
SPACER(6.1X8X9.5)
€ 2.50
10
0932009009
ref: 10
CUSHION
€ 5.00
11
0214206303
ref: 11
02142-0630B
SCREW
€ 2.00
12
0831610063
ref: 12
08316-1006B
NUT
€ 2.50
13
3342038B00
ref: 13
COIL ASSY,IGNITION
€ 151.00
14
0918006195
ref: 14
SPACER(6.4X10X18)
€ 3.50
15
0154705403
ref: 15
BOLT
€ 2.50
16
3342010F00
ref: 16
33420-10F10
COIL ASSEMBLY,IGNITION,FRONT
€ 151.00
17
0918006195
ref: 17
SPACER(6.4X10X18)
€ 3.50
18
0154705403
ref: 18
BOLT
€ 2.50
19
3351038B00
ref: 19
CAP,SPARK PLUG
€ 21.50
20
3354124510
ref: 20
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
21
3354238B00
ref: 21
SEAL,HIGH TENSION CORD
€ 4.50
22
3874026E00
ref: 22
RELAY ASSY
€ 32.50
23
3397010F00
ref: 23
SOLENOID ASSY,DECOMP
€ 235.50
24
3397110F00
ref: 24
STOPPER,DECOMP SOLENOID
€ 6.00
25
0155008163
ref: 25
01550-0816A
BOLT
€ 3.00
26
3365219B00
ref: 26
CUSHION,BATTERY(80X27X3)
€ 4.50
27
3397231D10
ref: 27
CUSHION,DECOMP
€ 4.50
28
5890010F00
ref: 28
CABLE ASSY,DECOMP FR
€ 20.00
29
0940725401
ref: 29
CLAMP(L:235)
€ 4.00
