FRONT WHEEL (MODEL W/X/Y/K1)

VL1500B INTRUDER 1999 (X) USA (E03)

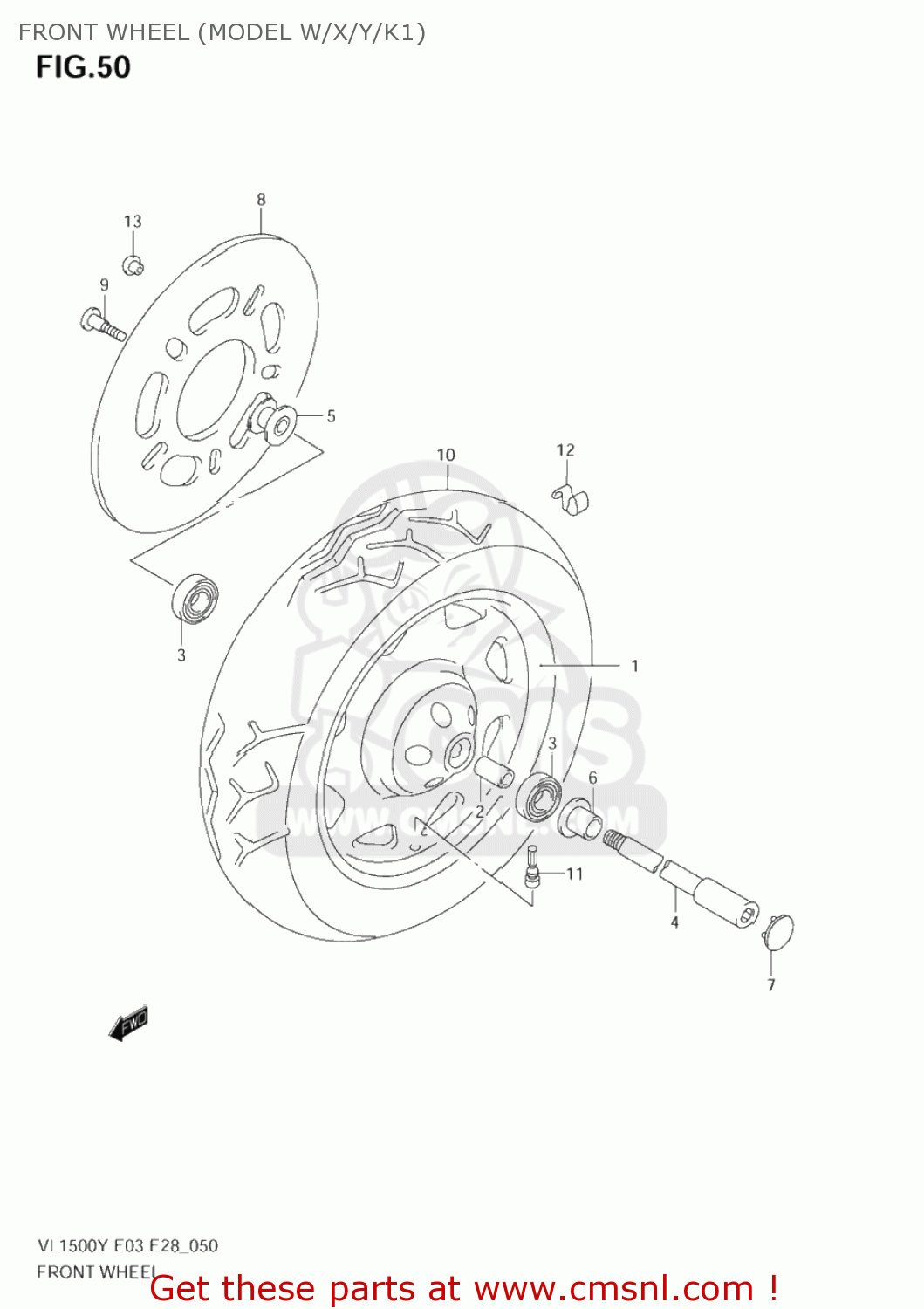

Front wheel (model w/x/y/k1) diagram VL1500B INTRUDER 1999 (X) USA (E03)

FRONT WHEEL (MODEL W/X/Y/K1) VL1500B INTRUDER 1999 (X) USA (E03)
FRONT WHEEL (MODEL W/X/Y/K1) VL1500B INTRUDER 1999 (X) USA (E03)
FRONT WHEEL (MODEL W/X/Y/K1) VL1500B INTRUDER 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5411110F0012R
ref: 1-1
WHEEL,FRONT (16XMT3.50)
€ 1,051.00
1-1
5411110F0012R
ref: 1-1
WHEEL,FRONT (16XMT3.50)
€ 1,051.00
1-2
5411110F1012R
ref: 1-2
WHEEL,FR(16XMT3.50)
€ 931.00
1-2
5411110F1012R
ref: 1-2
WHEEL,FR(16XMT3.50)
€ 931.00
2
5473110F00
ref: 2
SPACER,FR HUB BEARING
5473110F00
€ 12.00
3
0813362037
ref: 3
BEARING
0813362037
€ 24.50
4
5471110F01
ref: 4
AXLE,FR
5471110F01
€ 94.00
5
5474010F00
ref: 5
SPACER,FR AXLE,R
5474010F00
€ 24.50
6
5474032C00
ref: 6
SPACER,FR AXLE,R
5474032C00
€ 12.00
7
5479238B00
ref: 7
CAP,FR AXLE
5479238B00
€ 97.00
8
5921110F00
ref: 8
DISC,FR BRAKE
5921110F00
€ 178.00
9
0910608125
ref: 9
09106-08148
BOLT 8X33
0910608125
€ 6.00
10
5511010F00
ref: 10
55110-10F01
TIRE,FRONT 150/80-16.7
€ 619.50
10
5511010F00
ref: 10
55110-10F01
TIRE,FRONT 150/80-16.7
€ 619.50
11
4313024A00
ref: 11
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
12-1
4323282000
ref: 12-1
43222-73H10
WEIGHT,WHEEL BALANCE 10G
€ 4.00
12-2
4323482000
ref: 12-2
43224-73H10
WEIGHT,WHEEL BALANCE 20G
€ 5.00
12-3
4323682000
ref: 12-3
43226-73H10
WEIGHT,BAL. 30
€ 6.00
13
5479138B01
ref: 13
CAP,FR AXLE
5479138B01
€ 4.50
