FRAME

VL1500B INTRUDER 1999 (X) USA (E03)

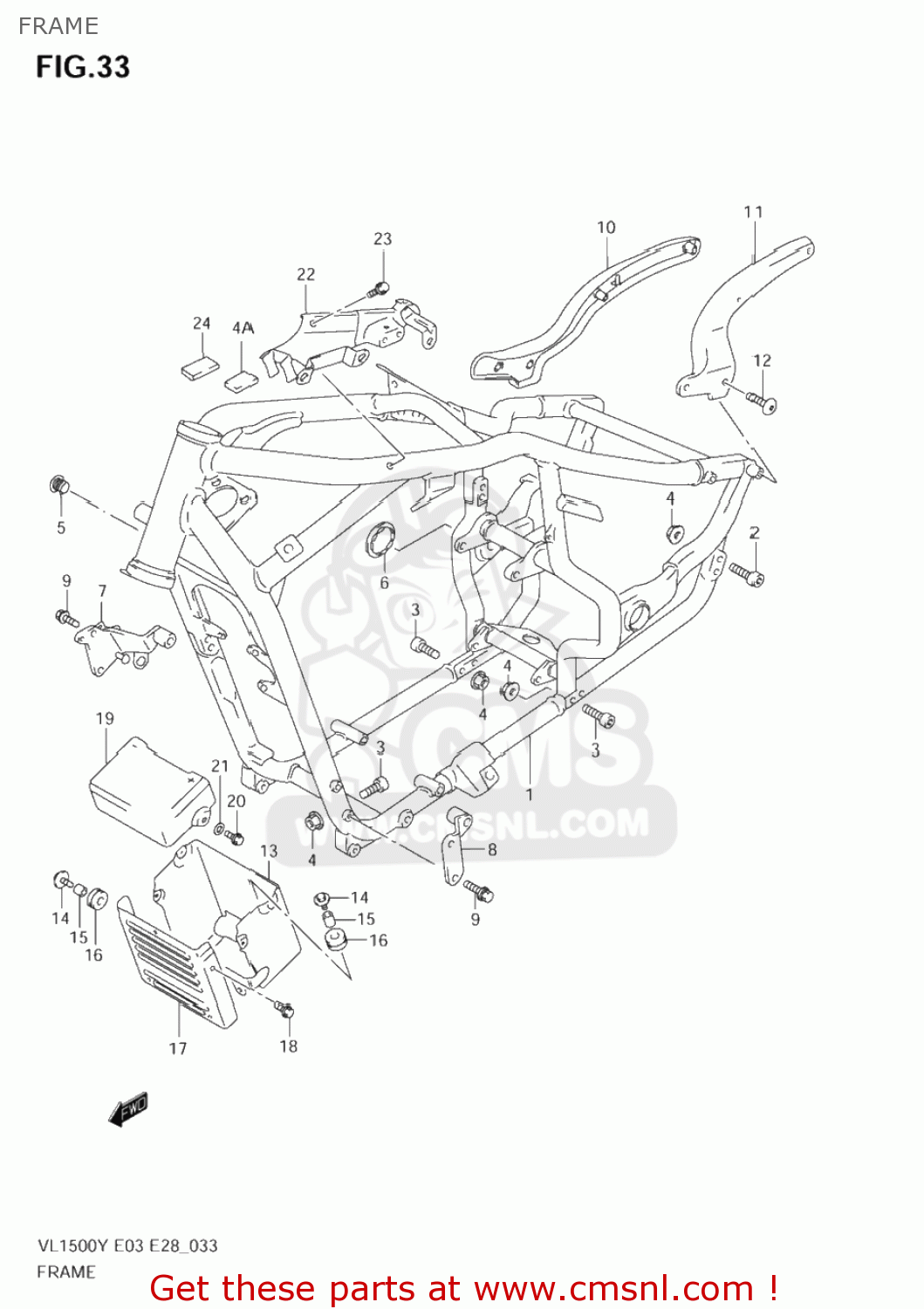

Frame diagram VL1500B INTRUDER 1999 (X) USA (E03)

FRAME VL1500B INTRUDER 1999 (X) USA (E03)
FRAME VL1500B INTRUDER 1999 (X) USA (E03)
FRAME VL1500B INTRUDER 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4110010F01019
ref: 1-1
FRAME COMP (BLACK)
€ 1,761.50
1-2
4110010F20019
ref: 1-2
FRAME(BLACK)
€ 1,761.50
2
0713010253
ref: 2
07130-1025B
BOLT
0713010253
€ 3.50
3
0713010353
ref: 3
07130-1035B
BOLT
0713010353
€ 3.50
4
0831931103
ref: 4
08319-3110A
NUT
0831931103
€ 3.00
4A
6137408010
ref: 4A
CUSHION,CHAIN CASE
€ 4.00
5
4189810F00
ref: 5
CAP,FRAME U-LOCK HOLE
4189810F00
€ 11.00
6
4189910F00
ref: 6
CAP,FRAME PIVOT,R
4189910F00
€ 12.00
7-1
4191010F00
ref: 7-1
41910-10F10
PLATE COMP,ENGINE MOUNTING
€ 53.00
7-2
4191010F10
ref: 7-2
PLATE,ENGINE MOUNT NO.1,R
€ 53.00
8
4192010F00
ref: 8
41920-10F10
PLATE,ENGINE MOUNTING NO.1,LEFT
€ 37.50
9
0158008303
ref: 9
01580-0830A
BOLT
€ 2.50
10-1
4161010F00
ref: 10-1
41610-10F20
GRIP COMP,FRAME HANDLE
€ 277.00
10-2
4161010F01
ref: 10-2
41610-10F20
GRIP,FRAME HANDLE,RIGHT
€ 277.00
10-3
4161010F20
ref: 10-3
GRIP,FRAME HANDLE,R
4161010F20
€ 277.00
11-1
4162010F00
ref: 11-1
41620-10F20
GRIP COMP,FRAME HANDLE
€ 310.50
11-2
4162010F01
ref: 11-2
41620-10F20
GRIP,FRAME HANDLE,LEFT
€ 310.50
11-3
4162010F20
ref: 11-3
GRIP,FRAME HANDLE,L
€ 310.50
12-1
4162910F00
ref: 12-1
BOLT,HANDLE GRIP
4162910F00
€ 6.00
12-2
4162910F10
ref: 12-2
09139-10003
BOLT,HANDLE GRIP
€ 6.00
12-3
4162910F11
ref: 12-3
09139-10003
BOLT,HANDLE GRIP
4162910F11
€ 6.00
12-4
0913910003
ref: 12-4
BOLT(10X25)
0913910003
€ 6.00
13-1
4154010F00
ref: 13-1
41540-10F01
HOLDER COMP,BATTERY
€ 50.00
13-2
4154010F01
ref: 13-2
HOLDER,BATTERY
4154010F01
€ 50.00
14
0911606168
ref: 14
BOLT(6X16)
0911606168
€ 2.50
15
0918006261
ref: 15
SPACER(6.5X9X8)
0918006261
€ 2.00
16
0932008021
ref: 16
CUSHION
0932008021
€ 4.00
17
4154810F00
ref: 17
HOLDER,BATTERY FR
4154810F00
€ 27.50
18
0214206083
ref: 18
02142-0608A
SCREW
0214206083
€ 1.50
19-1
4154910F00
ref: 19-1
41549-10F02
COVER,BATTERY,UPPER
€ 21.50
19-2
4154910F01
ref: 19-2
41549-10F02
COVER,BATTERY,UPPER
4154910F01
€ 21.50
20-1
0155006123
ref: 20-1
01550-0612A
BOLT
0155006123
€ 2.50
20-2
6316143E00
ref: 20-2
BOLT
6316143E00
€ 3.00
21
0916906071
ref: 21
WASHER
0916906071
€ 2.50
22
4741010F00
ref: 22
PLATE COMP,ELECTRIC PARTS
€ 41.00
23
0155006123
ref: 23
01550-0612A
BOLT
0155006123
€ 2.50
24
1117945D00
ref: 24
CUSHION
1117945D00
€ 4.50
