STEERING STEM (MODEL W/X)

VL1500B INTRUDER 1999 (X) USA (E03)

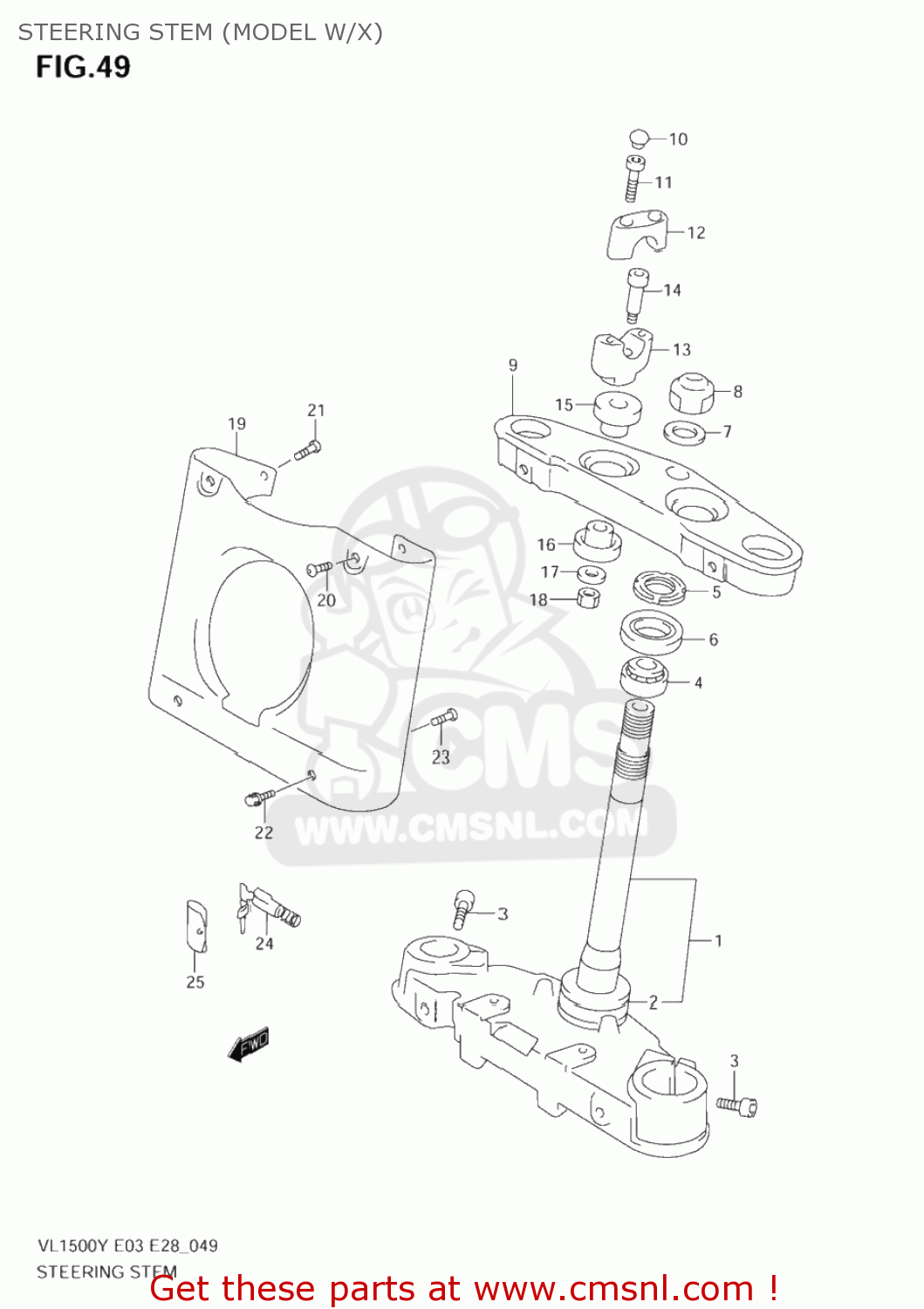

Steering stem (model w/x) diagram VL1500B INTRUDER 1999 (X) USA (E03)

STEERING STEM (MODEL W/X) VL1500B INTRUDER 1999 (X) USA (E03)

STEERING STEM (MODEL W/X) VL1500B INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141010F00
ref: 1

STEM,STEERING

€ 682.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

5114710F00
ref: 3

BOLT,STEM

€ 4.50

4

0926525019
ref: 4

BEARING(25X47X15)

€ 48.50

5

5163128000
ref: 5

NUT,STEERING STEM(25X44X10)

€ 12.50

6

5164340502
ref: 6

DUST SEAL,STEERING UPR

€ 8.00

7

5135624B01
ref: 7

WASHER(22.5X32X1.6)

€ 3.00

8

5135324B00
ref: 8

NUT,CAP

€ 21.50

9

5131110F00
ref: 9

HEAD,STEERING STEM

€ 372.50

10

0925006009
ref: 10

CAP(OD:14.5)

€ 3.50

11

0713008307
ref: 11

BOLT

€ 4.50

12

5621138A01
ref: 12

HOLDER,HANDLE UPR

€ 45.00

13

5622110F00
ref: 13

HOLDER,HANDLE UNDER

€ 57.00

14

5122610F00
ref: 14

BOLT

€ 40.50

15

5624038A42
ref: 15

DAMPER,RUBBER

€ 31.50

16

5624239A12
ref: 16

CUSHION,RUBBER UNDER

€ 42.50

17

5135438A40
ref: 17

WASHER

€ 9.00

18

0915910027
ref: 18

NUT

€ 3.00

19

5151510F00
ref: 19

COVER,FR FORK UPR

€ 422.00

20

0913908007
ref: 20

SCREW(8X16)

€ 4.50

21

0913906027
ref: 21

SCREW(6X12)

€ 3.00

22

0155008163
ref: 22
01550-0816A

BOLT

€ 3.00

23

0913906027
ref: 23

SCREW(6X12)

€ 3.00

24

5190038810
ref: 24

LOCK SET,STEERING

€ 168.50

25

5192048E00
ref: 25

CASE,STEERING KEY

€ 13.00
