WIRING HARNESS (MODEL Y/K1/K2)

VL1500B INTRUDER 1999 (X) USA (E03)

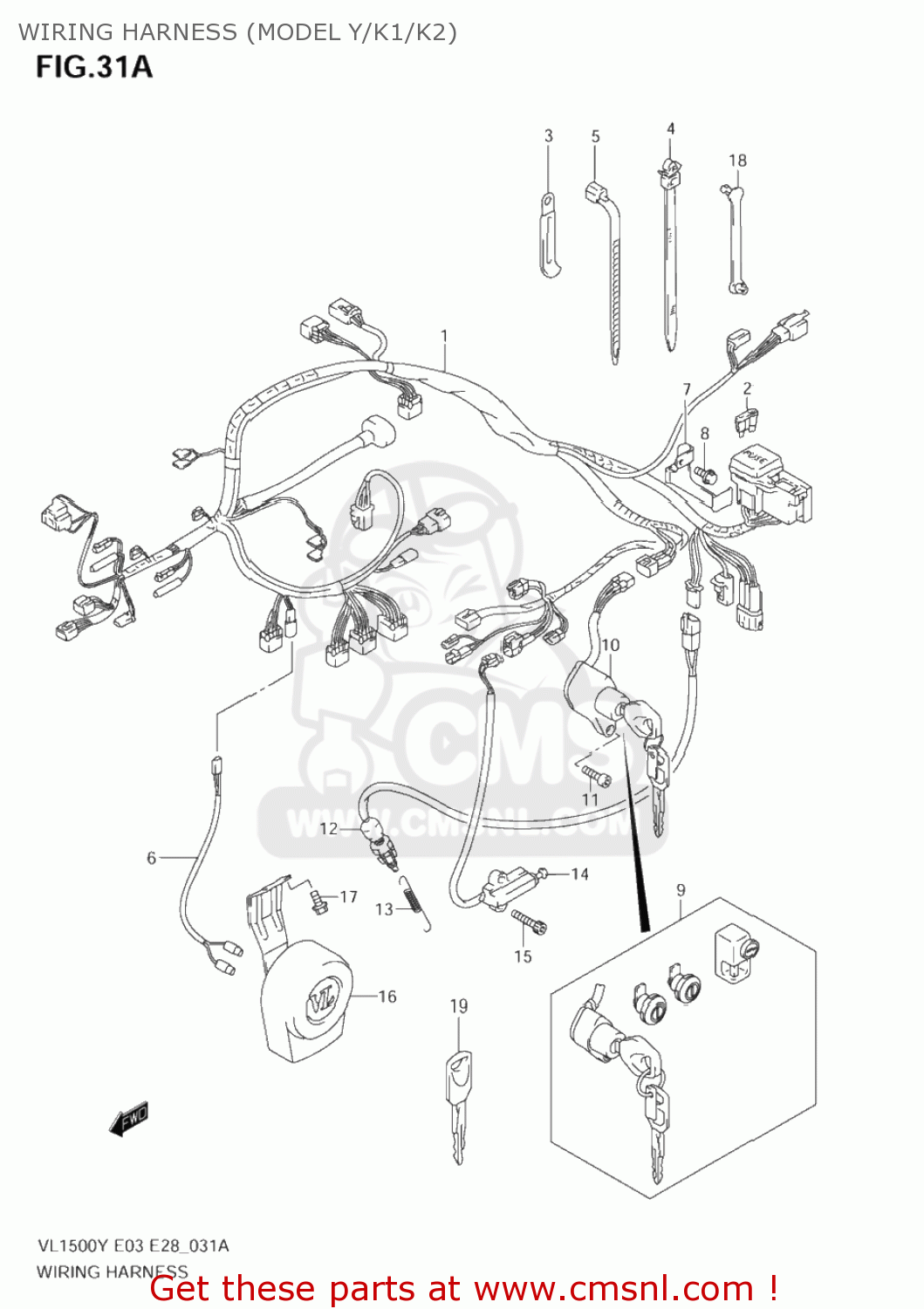

Wiring harness (model y/k1/k2) diagram VL1500B INTRUDER 1999 (X) USA (E03)

WIRING HARNESS (MODEL Y/K1/K2) VL1500B INTRUDER 1999 (X) USA (E03)

WIRING HARNESS (MODEL Y/K1/K2) VL1500B INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3661010F60
ref: 1-1
36610-10F90

HARNESS,WIRING

€ 525.00

1-2

3661010F61
ref: 1-2
36610-10F90

HARNESS,WIRING

€ 525.00

1-3

3661010F90
ref: 1-3

HARNESS,WIRING

€ 525.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3-1

0940406432
ref: 3-1

CLAMP(L:65)

€ 2.50

3-2

0940406434
ref: 3-2

CLAMP(L:80 T:1.0)

€ 3.00

4

0940711402
ref: 4

CLAMP(L:90)

€ 2.50

5-1

0940714403
ref: 5-1

CLAMP(L:125)

€ 2.50

5-2

0940725401
ref: 5-2

CLAMP(L:235)

€ 4.00

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

6

3685221E10
ref: 6

WIRE,HORN LEAD

€ 14.00

7

3674410F00
ref: 7

BRACKET,FUSE

€ 6.00

8

0155006123
ref: 8
01550-0612A

BOLT

€ 2.50

9-1

3700026830
ref: 9-1
37000-26832

LOCK SET

€ 285.00

9-2

3700026832
ref: 9-2

LOCK SET

€ 285.00

9-3

3710026880
ref: 9-3
37000-26832

LOCK SET

€ 285.00

10-1

3711026F00
ref: 10-1
37110-26F02

SWITCH ASSEMBLY,IGNITION

€ 95.00

10-2

3711026F02
ref: 10-2

SWITCH ASSY,IGNITION

€ 95.00

10-3

3711026F20
ref: 10-3
37110-26F02

SWITCH ASSY,IG

€ 95.00

11

0713006163
ref: 11
07130-0616B

BOLT,OIL FILLE

€ 3.00

12

3774010F00
ref: 12

SWITCH ASSY,STOP LAMP

€ 33.50

13

4313910F00
ref: 13

SPRING,STOP LAMP SWITCH

€ 7.00

14

3784010F00
ref: 14

SWITCH ASSY,SIDE STAND

€ 101.50

15

0214206203
ref: 15
02142-0620A

SCREW

€ 2.00

16

3850010F00
ref: 16

HORN ASSY

€ 102.50

17

0155006163
ref: 17
01550-0616A

BOLT

€ 2.50

18

0940703401
ref: 18

CLAMP(L:33)

€ 3.50

19

3714648E00
ref: 19
37146-48E10

KEY,BLANK

€ 21.00
