FUEL CATCH TANK (MODEL W)

VL1500B INTRUDER 1999 (X) USA (E03)

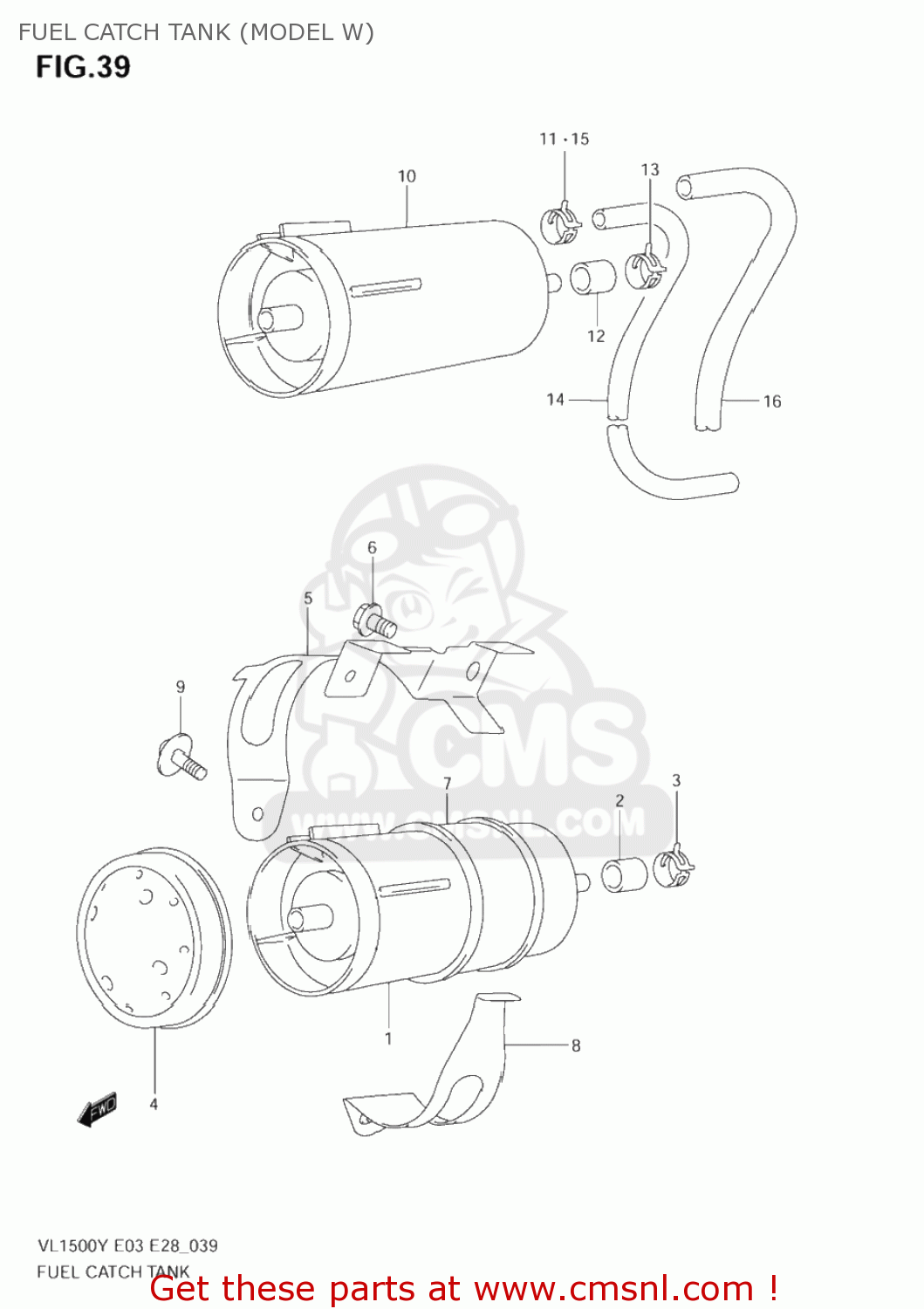

Fuel catch tank (model w) diagram VL1500B INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

4439010F00
ref: 1

TANK,FUEL CATCH

€ 70.00

0925107003
ref: 2

CAP,OD:11.5

€ 2.00

0940111407
ref: 3
09401-11415

CLIP

€ 2.50

1721148E00
ref: 4

CAP,CANISTER

€ 14.50

4488110F00
ref: 5

BRACKET,CATCH TANK

€ 13.50

0911606168
ref: 6

BOLT(6X16)

€ 2.50

4488326E00
ref: 7

CUSHION,CANISTER

€ 9.00

4488210F00
ref: 8

HOLDER,CATCH TANK

€ 7.00

0214206123
ref: 9
02142-0612A

SCREW 6X12

€ 2.00

1721026E00
ref: 10

CANISTER ASSY,CHARCOAL

€ 261.50

0940111413
ref: 11

CLIP

€ 2.50

0925107003
ref: 12

CAP,OD:11.5

€ 2.00

0940111407
ref: 13
09401-11415

CLIP

€ 2.50

4443310F00
ref: 14

HOSE,CANISTER & CARB PURGE

€ 0.00

0940110402
ref: 15

CLIP

€ 7.00

0935114152600
ref: 16

PROTECTOR(14.5X15.5X600)

€ 9.00
