AIR CLEANER (MODEL K1/K2/K3/K4)

VL800 VOLUSIA 2003 (K3) USA (E03)

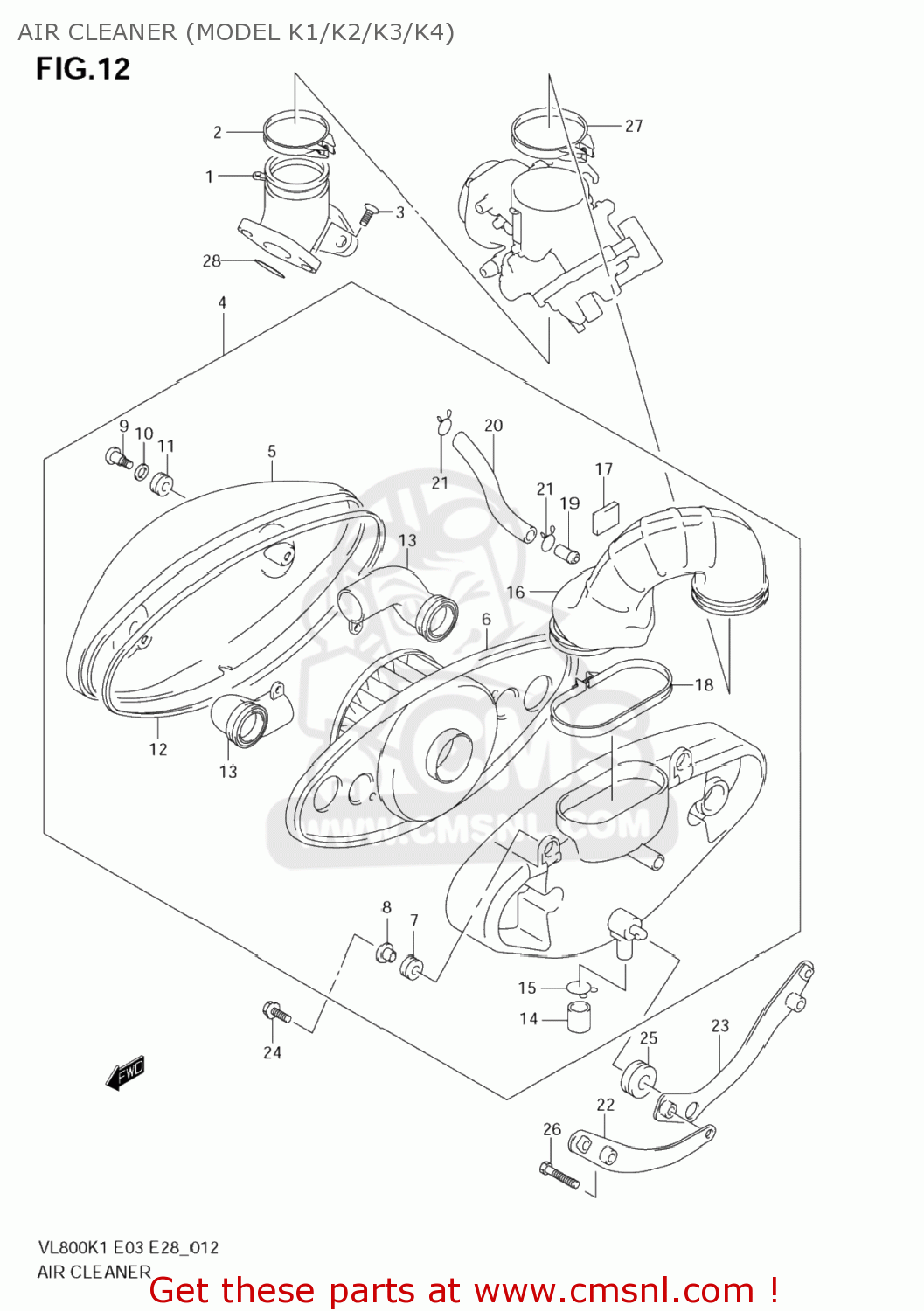

Air cleaner (model k1/k2/k3/k4) diagram VL800 VOLUSIA 2003 (K3) USA (E03)

AIR CLEANER (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2003 (K3) USA (E03)

AIR CLEANER (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1310141F00
ref: 1

PIPE ASSY,INTAKE

€ 168.00

2

0940252208
ref: 2

CLAMP

€ 5.50

3

0912006008
ref: 3

BOLT(6X20.5)

€ 2.50

4

1370041F00
ref: 4

CLEANER ASSY,AIR

€ 349.50

5

1374141F00
ref: 5

CAP,AIR CLEANER

€ 186.50

6

1378041F00
ref: 6

FILTER ASSY

€ 56.50

7

0932009016
ref: 7

CUSHION

€ 2.50

8

1381229C50
ref: 8

COLLAR,CLEANER CASE

€ 1.50

9

0913906087
ref: 9
09139-06126

SCREW(6X20)

€ 4.00

10

1383341F00
ref: 10

WASHER

€ 3.50

11

1374741F00
ref: 11

CUSHION

€ 2.50

12

1374641F00
ref: 12

GASKET (NAS)

€ 13.50

13

1389141F00
ref: 13

TUBE,INLET

€ 18.50

14

1385941B10
ref: 14

PLUG

€ 5.50

15

0940114301
ref: 15

CLIP

€ 2.00

16

1388141F00
ref: 16

TUBE,OUTLET

€ 66.50

17

1384241F00
ref: 17

CUSHION

€ 4.50

18

1382641F00
ref: 18

CLAMP

€ 18.00

19

1385841F00
ref: 19

PIPE A,TUBE OUTLET

€ 5.00

20

1385341F00
ref: 20

TUBE,BREATHER

€ 14.50

21

0940114301
ref: 21

CLIP

€ 2.00

22

1376041F00
ref: 22

BRACKET,AIR CLEANER FR

€ 15.50

23

1377041F00
ref: 23

BRACKET,AIR CLEANER RR

€ 22.50

24

0913906063
ref: 24

SCREW(6X20)

€ 4.00

25

0932008018
ref: 25

CUSHION

€ 4.00

26

0150006253
ref: 26
01500-0625A

BOLT

€ 2.50

27

0940266208
ref: 27

CLAMP

€ 6.50

28

0928041007
ref: 28

O RING(D:1.9,ID:40.7)

€ 10.50
