WIRING HARNESS (VL800K4/ZK4)

VL800 VOLUSIA 2003 (K3) USA (E03)

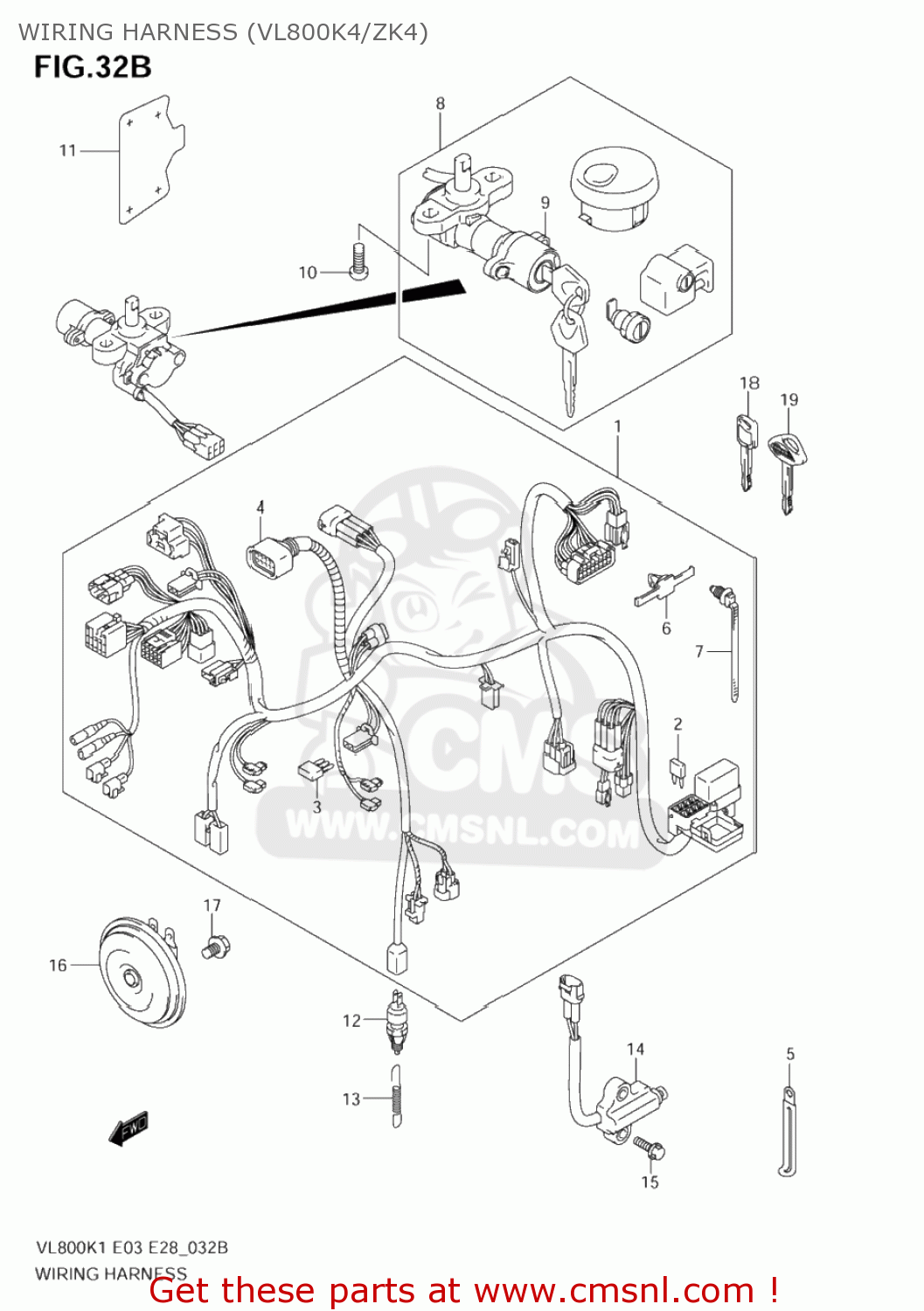

Wiring harness (vl800k4/zk4) diagram VL800 VOLUSIA 2003 (K3) USA (E03)

WIRING HARNESS (VL800K4/ZK4) VL800 VOLUSIA 2003 (K3) USA (E03)
WIRING HARNESS (VL800K4/ZK4) VL800 VOLUSIA 2003 (K3) USA (E03)
WIRING HARNESS (VL800K4/ZK4) VL800 VOLUSIA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661041FA0
ref: 1
HARNESS,WIRING
€ 0.00
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
3661138A00
ref: 3
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
4
3661833E00
ref: 4
COVER,SPEEDOMETER COUPLER
€ 5.50
5
0940406433
ref: 5
CLAMP(L:80)
0940406433
€ 3.00
6
0940705410
ref: 6
CLAMP
€ 4.00
7
0940717403
ref: 7
CLAMP(L:154)
0940717403
€ 5.50
8-1
3700041820
ref: 8-1
LOCK SET
3700041820
€ 544.50
8-2
3700041880
ref: 8-2
LOCK SET
€ 317.00
8-3
3700041830
ref: 8-3
LOCK SET
€ 0.00
8-4
3700041890
ref: 8-4
LOCK SET
€ 0.00
9-1
3710041F10
ref: 9-1
LOCK ASSY,STEERING
3710041F10
€ 171.00
9-2
3710041F30
ref: 9-2
LOCK ASSY,STEERING
€ 171.50
10
0913908016
ref: 10
BOLT(8X20)
0913908016
€ 3.50
11
3718741F00
ref: 11
PROTECTOR,IGNITION SWITCH
€ 12.00
12
3774024A00
ref: 12
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
13
0944306073
ref: 13
SPRING
0944306073
€ 3.00
14
3784041F00
ref: 14
SWITCH ASSY,SIDE STAND
3784041F00
€ 65.00
15
0155006203
ref: 15
01550-0620A
BOLT
0155006203
€ 2.50
16
3850041F00
ref: 16
HORN ASSY
€ 83.50
17
0155008123
ref: 17
01550-0812A
BOLT
0155008123
€ 3.50
18
3714641F10
ref: 18
KEY,BLANK
3714641F10
€ 26.00
19
3714641F30
ref: 19
KEY,BLANK(VOLUSIA)
€ 57.00
