MUFFLER

VL800 VOLUSIA 2003 (K3) USA (E03)

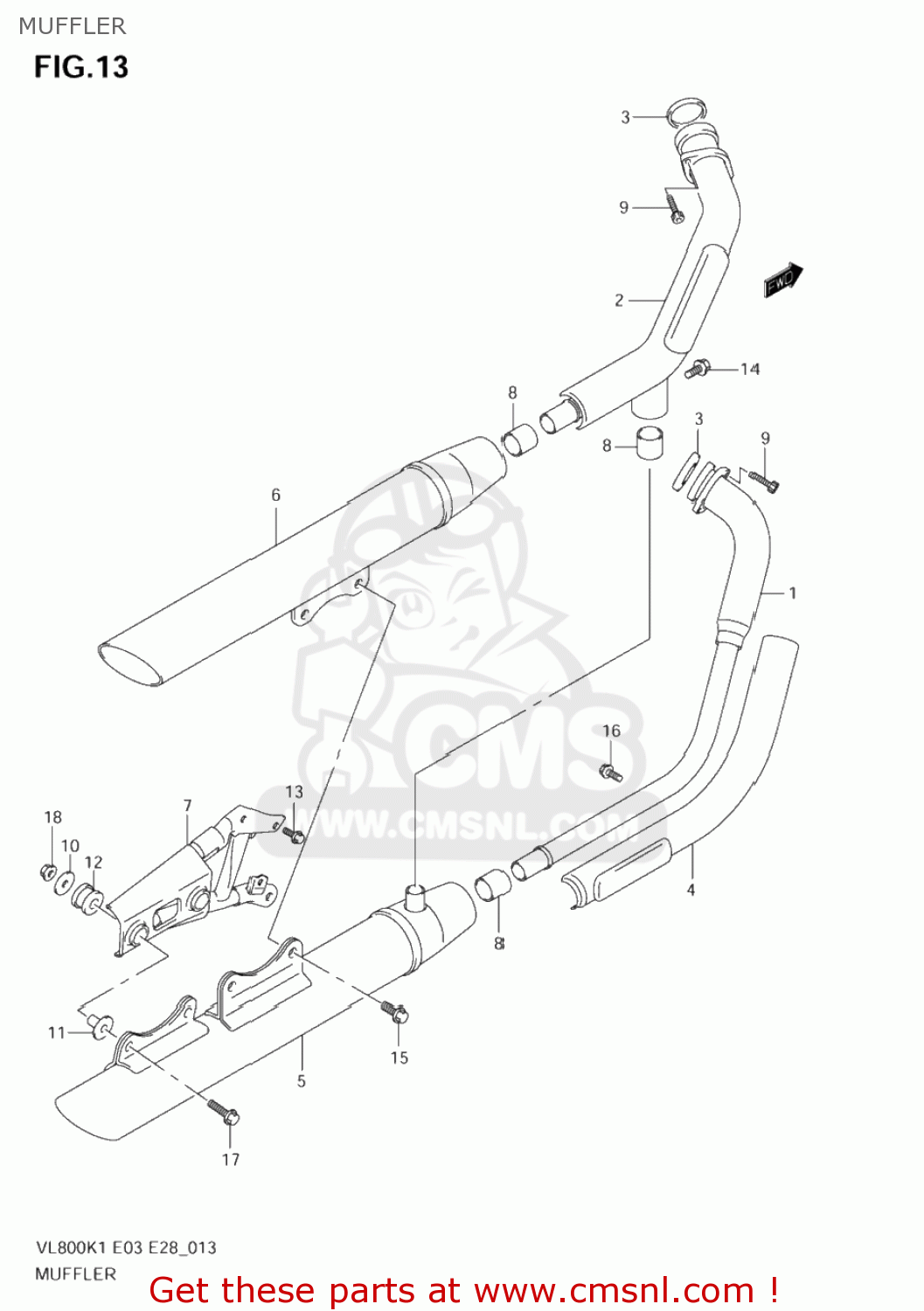

Muffler diagram VL800 VOLUSIA 2003 (K3) USA (E03)

MUFFLER VL800 VOLUSIA 2003 (K3) USA (E03)

MUFFLER VL800 VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1415041F01
ref: 1-1
14150-41F02

PIPE,EXHAUST,F

€ 226.00

1-2

1415041F02
ref: 1-2

PIPE,EXHAUST FR

€ 226.00

2-1

1416041F01
ref: 2-1
14160-41F02

PIPE,EXHAUST,R

€ 739.50

2-2

1416041F02
ref: 2-2

PIPE,EXHAUST RR

€ 739.50

3

1418110F00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 11.50

4-1

1418041F01
ref: 4-1
14180-41F02

COVER,EXHAUST,

€ 299.00

4-2

1418041F02
ref: 4-2

COVER,EXHAUST FRONT

€ 299.00

5-1

1431041F11H01
ref: 5-1
14310-41F12-H01

BODY,MUFFLER

€ 300.50

5-2

1431041F12H01
ref: 5-2

BODY,MUFFLER

€ 300.50

5-3

1431041F60H01
ref: 5-3

BODY,MUFFLER FR

€ 713.50

6-1

1434041F11H01
ref: 6-1
14340-41F12-H01

BODY,MUFFLER

€ 268.00

6-2

1434041F12H01
ref: 6-2

BODY,MUFFLER

€ 268.00

6-3

1434041F60H01
ref: 6-3

BODY,MUFFLER RR

€ 1,421.50

7

1441041F01
ref: 7

BRACKET,MUFFLER SUPPORT

€ 124.00

8

1477129E00
ref: 8

CONNECTOR,MUFFLER

€ 16.00

9

0910608165
ref: 9

BOLT(8X25)

€ 5.00

10

0916008140
ref: 10
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

11

0918008156
ref: 11

SPACER(8.6X12X27.1)

€ 6.50

12

0932012049
ref: 12

CUSHION

€ 9.00

13

0155008163
ref: 13
01550-0816A

BOLT

€ 3.00

14

0155008353
ref: 14
01550-0835A

BOLT

€ 3.50

15

0155008453
ref: 15
01550-0845A

BOLT

€ 3.00

16

0712006163
ref: 16
07120-0616B

BOLT MAGNETO S

€ 2.50

17

0910608174
ref: 17

BOLT(8X16)

€ 3.50

18

0836125088
ref: 18
08361-2508A

NUT

€ 2.50
