FOOTREST (MODEL K1/K2/K3/K4)

VL800 VOLUSIA 2003 (K3) USA (E03)

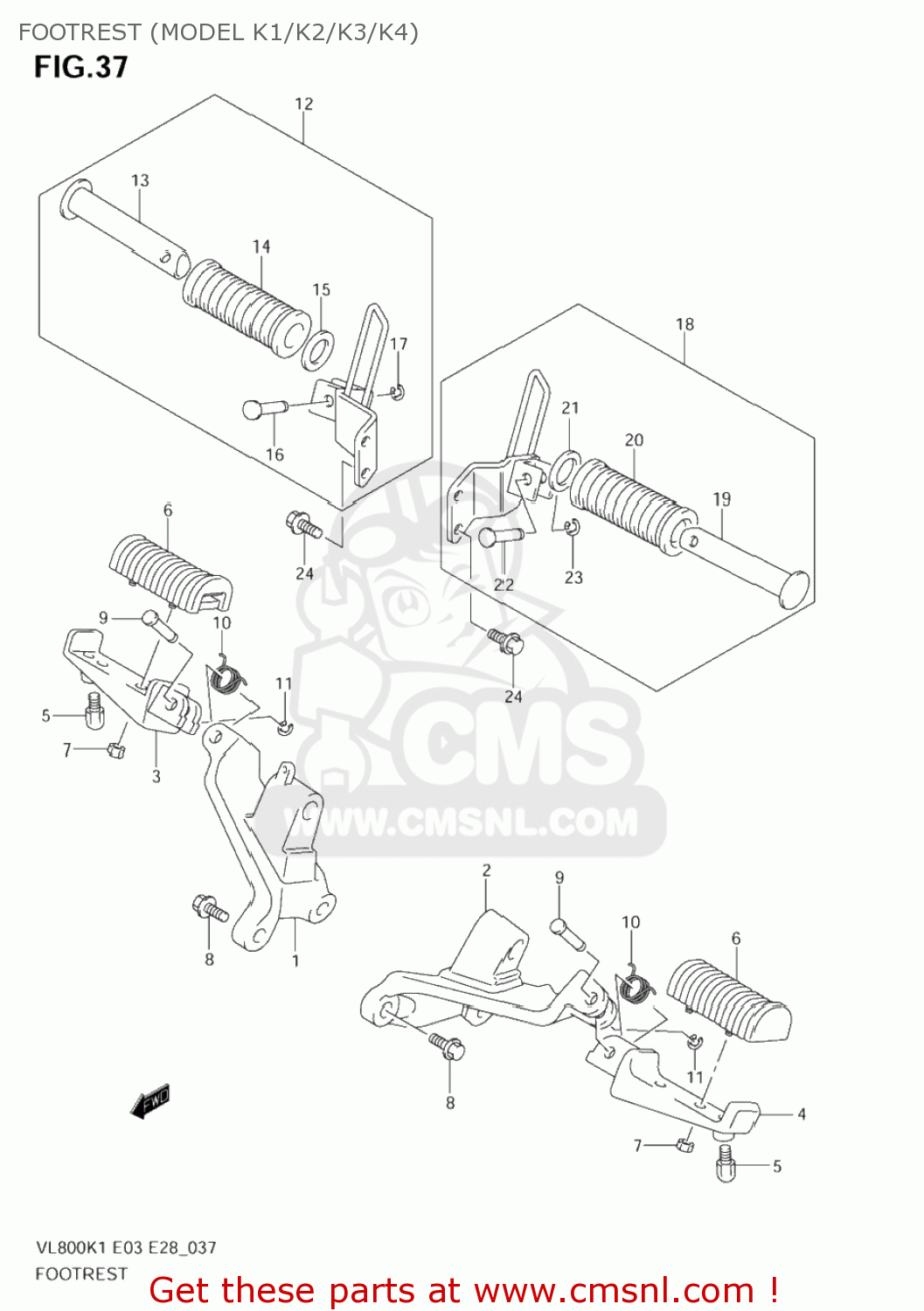

Footrest (model k1/k2/k3/k4) diagram VL800 VOLUSIA 2003 (K3) USA (E03)

FOOTREST (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2003 (K3) USA (E03)

FOOTREST (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4351141F00
ref: 1

BRACKET,FR FOOTREST,R

€ 100.50

2

4352141F00
ref: 2
43521-41F01

BRACKET,FRONT

€ 110.50

3

4353141F00
ref: 3
43531-41F01

BAR,FRONT FOOT

€ 35.50

4

4354141F00
ref: 4
43541-41F01

BAR,FRONT FOOT

€ 35.50

5

4357607D01
ref: 5

BOLT,BANK SENSOR

€ 8.00

6

4355041F00
ref: 6

RUBBER,FR FOOTREST

€ 14.50

7

0831921063
ref: 7
08319-2106B

NUT

€ 2.50

8

0155010253
ref: 8
01550-1025A

BOLT

€ 3.00

9

0920808010
ref: 9

PIN(8X33.2)

€ 3.00

10

0944818022
ref: 10

SPRING

€ 3.50

11

0833211063
ref: 11
08332-1106A

E.RING

€ 2.00

12

4360041F00
ref: 12

FOOTREST ASSY,PILLION,R

€ 63.00

13

4361003001
ref: 13

BAR,FOOTREST RUBBER

€ 5.50

14

4361233200
ref: 14

RUBBER,PILLION FOOTREST

€ 4.50

15

0916019024
ref: 15

WASHER(19.5X32X2)

€ 2.00

16

4363625D00
ref: 16

PIN,PILLION FOOTREST

€ 5.50

17

0833211043
ref: 17
08332-1104A

E-RING

€ 2.00

18

4370041F00
ref: 18

FOOTREST ASSY,PILLION,L

€ 40.50

19

4361003001
ref: 19

BAR,FOOTREST RUBBER

€ 5.50

20

4361233200
ref: 20

RUBBER,PILLION FOOTREST

€ 4.50

21

0916019024
ref: 21

WASHER(19.5X32X2)

€ 2.00

22

4363625D00
ref: 22

PIN,PILLION FOOTREST

€ 5.50

23

0833211043
ref: 23
08332-1104A

E-RING

€ 2.00

24

0155008163
ref: 24
01550-0816A

BOLT

€ 3.00
