CRANKCASE
VL800 VOLUSIA 2003 (K3) USA (E03)

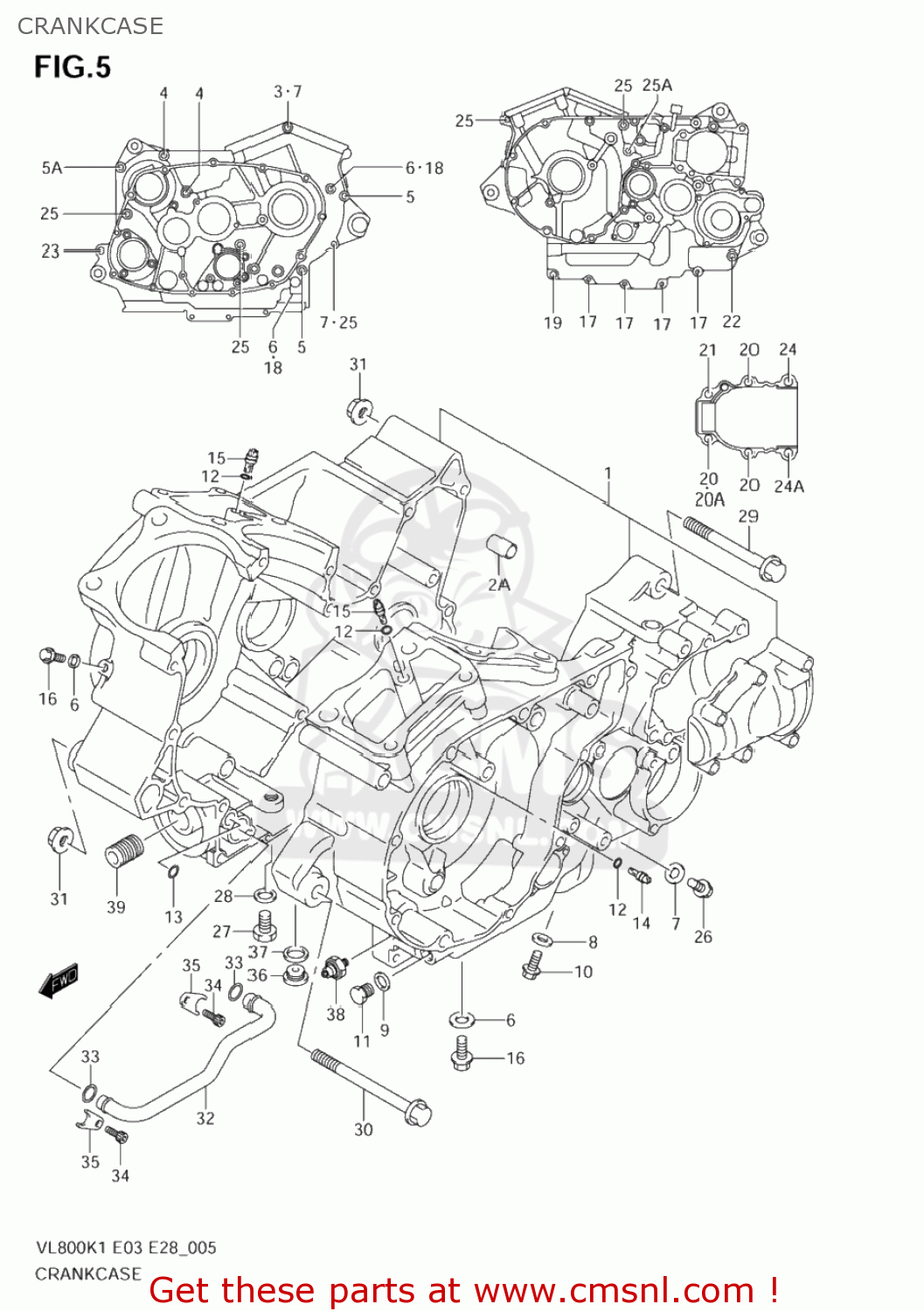

Crankcase diagram VL800 VOLUSIA 2003 (K3) USA (E03)
CRANKCASE VL800 VOLUSIA 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130141811
ref: 1-1
11301-41813
CRANKCASE SET
€ 1,574.50
1-1
1130141811
ref: 1-1
11301-41813
CRANKCASE SET
€ 1,574.50
1-2
1130141820
ref: 1-2
CRANKCASE SET
€ 1,205.50
1-3
1130141812
ref: 1-3
11301-41813
CRANKCASE SET
€ 1,574.50
2A
0920611007
ref: 2A
PIN(8.4X11X20)
€ 1.50
2-1
0916048001
ref: 2-1
WASHER(48.1X64X1.94)
€ 18.50
2-10
0916048010
ref: 2-10
WASHER(48.1X64X2.16)
€ 17.00
2-2
0916048002
ref: 2-2
WASHER(48.1X64X1.96)
€ 17.00
2-3
0916048003
ref: 2-3
WASHER(48.1X64X1.99)
€ 17.00
2-4
0916048004
ref: 2-4
WASHER(48.1X64X2.01)
€ 17.00
2-5
0916048005
ref: 2-5
WASHER(48.1X64X2.04)
€ 17.00
2-6
0916048006
ref: 2-6
WASHER(48.1X64X2.06)
€ 17.00
2-7
0916048007
ref: 2-7
WASHER(48.1X64X2.09)
€ 17.00
2-8
0916048008
ref: 2-8
WASHER(48.1X64X2.11)
€ 17.00
2-9
0916048009
ref: 2-9
WASHER(48.1X64X2.14)
€ 17.00
3-1
0910308110
ref: 3-1
BOLT(8X160)
€ 10.00
3-2
0910308405
ref: 3-2
BOLT(8X160)
€ 6.50
4-1
0910308131
ref: 4-1
BOLT(8X120)
€ 3.00
4-2
0910308406
ref: 4-2
BOLT(8X120)
€ 2.50
5A
0910308164
ref: 5A
BOLT(8X95)
€ 3.50
5-1
0910308133
ref: 5-1
BOLT(8X105)
€ 4.50
5-2
0910308179
ref: 5-2
BOLT(8X105)
€ 4.00
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
€ 2.00
7
0916808029
ref: 7
GASKET(8.2X16X1) (NAS)
€ 2.50
8
0916810002
ref: 8
GASKET(10X14X3.6) (NAS)
€ 2.00
9
0916814002
ref: 9
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
10
0924710008
ref: 10
PLUG(10X12)
€ 3.00
11
0924714026
ref: 11
PLUG(14X12)
€ 3.50
12
0928004004
ref: 12
O RING(D:1.2,ID:4)
€ 2.00
13
0928012009
ref: 13
O RING(D:1.9,ID:12.6)
€ 2.50
14
0949320014
ref: 14
JET,OIL GALLERY
€ 8.00
15
0949328010
ref: 15
JET,AIR(14)
€ 10.50
16
0155006103
ref: 16
01550-0610A
BOLT
€ 2.50
17
0155006403
ref: 17
01550-0640A
BOLT
€ 2.00
18-1
0155008123
ref: 18-1
01550-0812A
BOLT
€ 3.50
18-2
0910308407
ref: 18-2
BOLT(8X12)
€ 2.00
19
0155008353
ref: 19
01550-0835A
BOLT
€ 3.50
20
0155008403
ref: 20
01550-0840A
BOLT
€ 3.50
20A
0916808029
ref: 20A
GASKET(8.2X16X1) (NAS)
€ 2.50
21
0155008503
ref: 21
01550-0850B
BOLT
€ 2.50
22
0155008553
ref: 22
01550-0855A
BOLT
€ 3.00
23
0155008603
ref: 23
01550-0860A
BOLT
€ 3.50
24
0155008553
ref: 24
01550-0855A
BOLT
€ 3.00
24A
0155008653
ref: 24A
01550-0865A
BOLT
€ 3.00
25A
0155008753
ref: 25A
01550-0875A
BOLT
€ 3.50
25-1
0155008953
ref: 25-1
01550-0895A
BOLT
€ 3.50
25-2
0910308105
ref: 25-2
BOLT(8X95)
€ 3.00
26-1
0712008123
ref: 26-1
PLUG
€ 2.50
26-2
0910308407
ref: 26-2
BOLT(8X12)
€ 2.00
27
0924712106
ref: 27
PLUG,12X20
€ 2.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
29
0910310142
ref: 29
BOLT(10X135)
€ 4.00
30
0910310278
ref: 30
BOLT(10X160)
€ 9.50
31-1
0915910058
ref: 31-1
09159-10115
NUT
€ 4.00
31-2
0915910113
ref: 31-2
NUT
€ 3.00
32
1145138A00
ref: 32
PIPE,OIL GALLERY
€ 13.50
33
0928015008
ref: 33
O RING(D:3.1,ID:14.8)
€ 1.50
34
0910606075
ref: 34
BOLT(6X12)
€ 2.50
35
1146138A00
ref: 35
CLAMP,OIL PIPE
€ 1.50
36
0924816012
ref: 36
PLUG,16X8
€ 4.50
37
0916816002
ref: 37
GASKET(16X22X2) (NAS)
€ 2.00
38
3782033D10
ref: 38
SWITCH ASSY,OIL PRESSURE
€ 29.00
39
1659106B00
ref: 39
16591-06B01
UNION,OIL STAND
€ 6.00
