CLUTCH
VL800 VOLUSIA 2003 (K3) USA (E03)

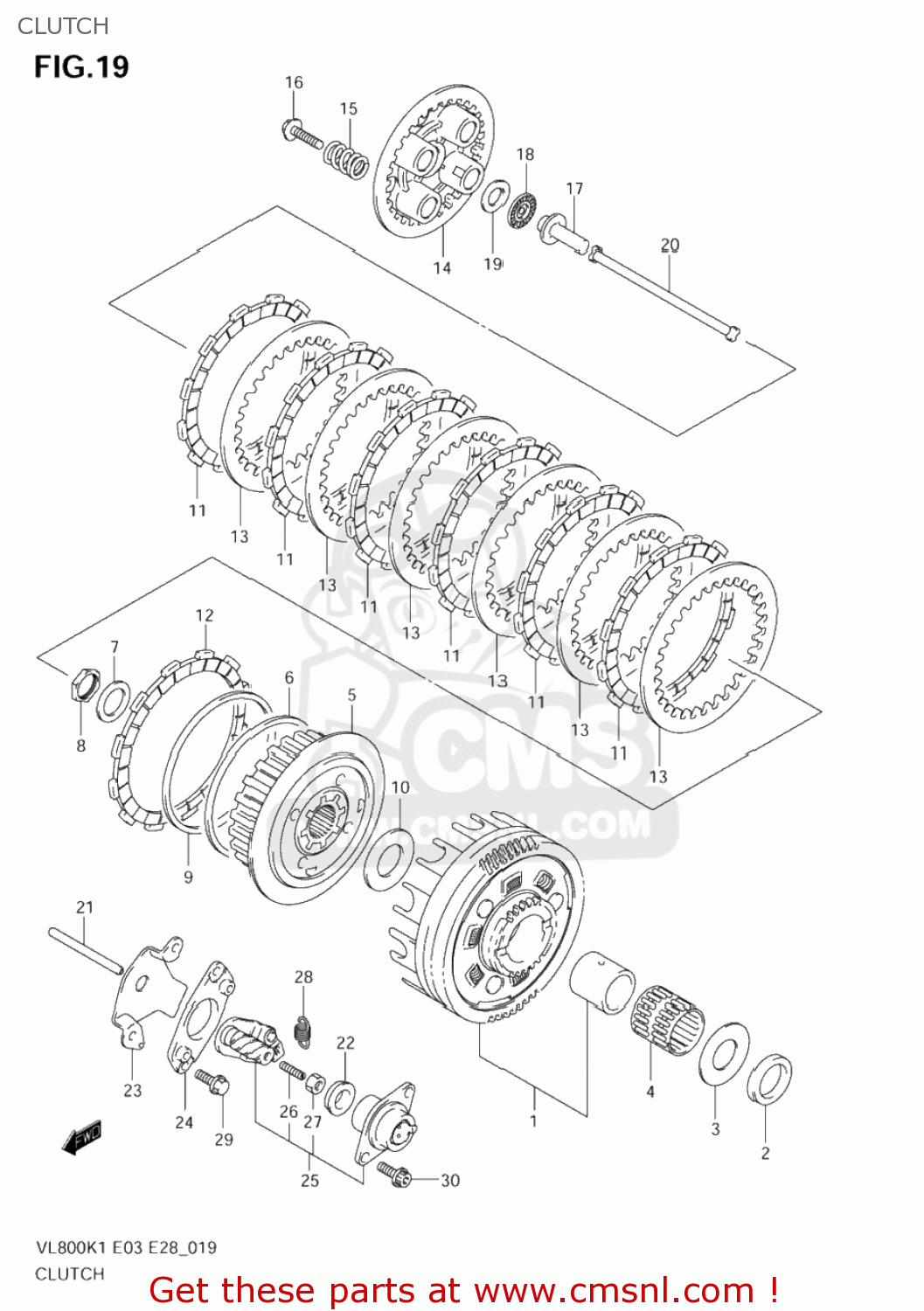

Clutch diagram VL800 VOLUSIA 2003 (K3) USA (E03)
CLUTCH VL800 VOLUSIA 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120038840
ref: 1
GEAR ASSY,PRIMARY(NT:71)
€ 321.00
2
0918025077
ref: 2
SPACER(25X38X6.5)
€ 7.50
3
0916025055
ref: 3
WASHER(25X50X2.5)
€ 9.50
4
0926335017
ref: 4
BEARING(35X40X35.8)
€ 36.50
5
2141041F00
ref: 5
HUB,CLUTCH SLEEVE
€ 95.50
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
€ 8.00
7
0916422007
ref: 7
WASHER
€ 5.00
8
0914022008
ref: 8
NUT
€ 4.50
9
0916400004
ref: 9
WASHER
€ 9.00
10
0916025055
ref: 10
WASHER(25X50X2.5)
€ 9.50
11
2144137400
ref: 11
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
13
2145114A00
ref: 13
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
14
2146227A00
ref: 14
DISC,CLUTCH PRESSURE
€ 37.00
15
2141341F00
ref: 15
SPRING,CLUTCH
€ 5.50
16
0911606185
ref: 16
BOLT(6X30)
€ 2.50
17
2312131E00
ref: 17
PIECE,CLUTCH PUSH
€ 18.50
18
0926315003
ref: 18
BEARING(15X28X2)
€ 7.00
19
0916015045
ref: 19
WASHER(15.5X28X1)
€ 4.00
20
2311027A00
ref: 20
ROD,CLUTCH
€ 17.00
21
2311145C00
ref: 21
ROD,CLUTCH PUSH,L
€ 11.00
22
0928506017
ref: 22
SEAL,OIL(6X34X11)
€ 11.00
23
2311745C00
ref: 23
RETAINER,CL PUSH ROD OIL SEAL
€ 4.50
24
2313045C00
ref: 24
PLATE,CLUTCH RELEASE SCREW
€ 16.50
25
2320041F00
ref: 25
SCREW ASSY,CLUTCH RELEASE
€ 62.00
26
0913406010
ref: 26
SCREW(6X25)
€ 3.00
27
0831000067
ref: 27
NUT
€ 2.50
28
0944309050
ref: 28
SPRING
€ 3.00
29
0712006203
ref: 29
07120-0620B
BOLT
€ 3.50
30
0712006163
ref: 30
07120-0616B
BOLT MAGNETO S
€ 2.50
