FRAME COVER (MODEL K3)

VL800 VOLUSIA 2003 (K3) USA (E03)

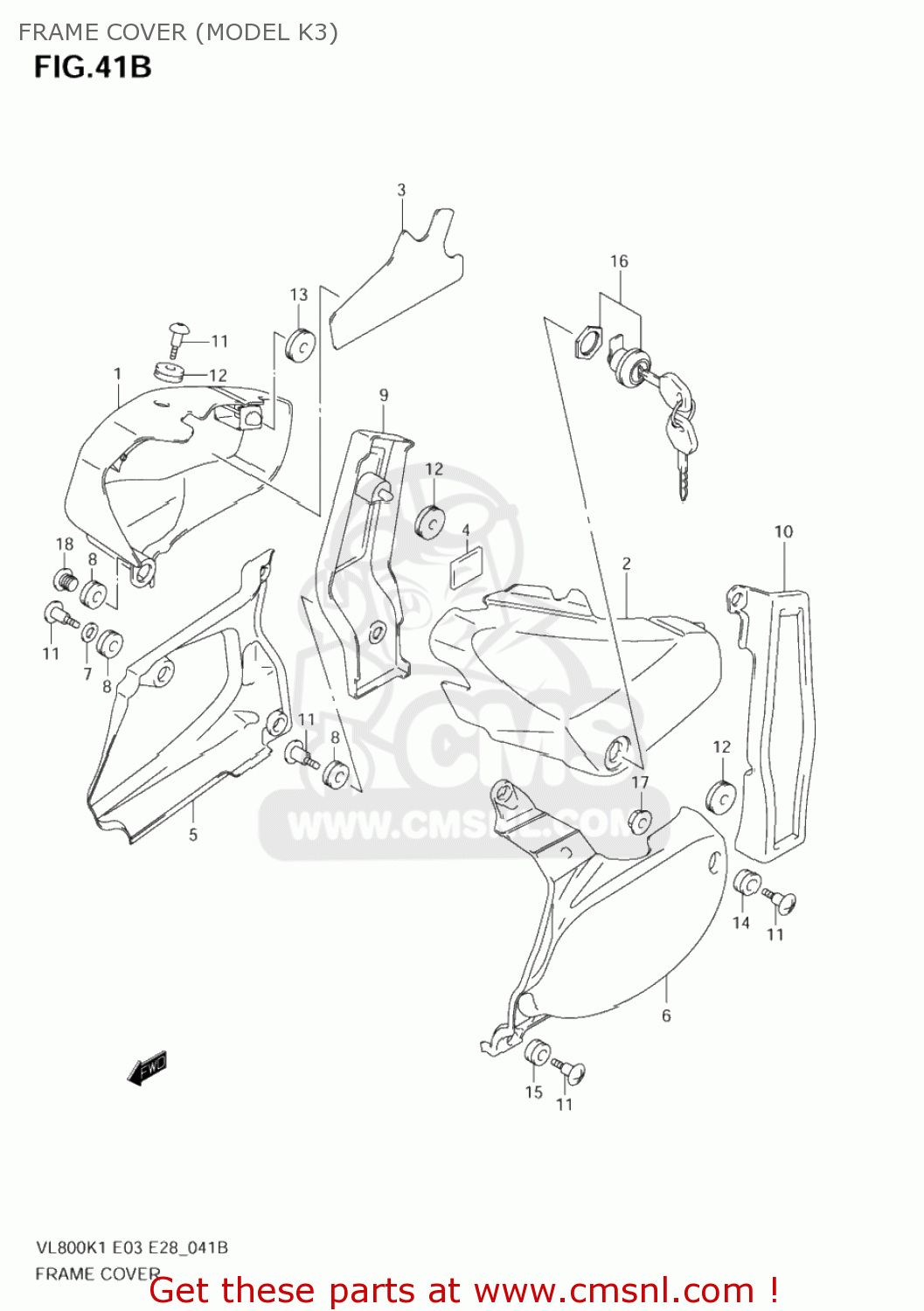

Frame cover (model k3) diagram VL800 VOLUSIA 2003 (K3) USA (E03)

FRAME COVER (MODEL K3) VL800 VOLUSIA 2003 (K3) USA (E03)
FRAME COVER (MODEL K3) VL800 VOLUSIA 2003 (K3) USA (E03)
FRAME COVER (MODEL K3) VL800 VOLUSIA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711041F3033J
ref: 1-1
47110-41F31-33J
COVER COMP,SID
€ 108.00
1-2
4711041F30YM6
ref: 1-2
COVER, FRAME RH (SILVER)
€ 181.50
1-3
4711041F30YV4
ref: 1-3
COVER,SIDE,R(GREEN)
€ 110.50
1-4
4711041F30YC3
ref: 1-4
COVER,SIDE,R(WHITE)
€ 0.00
1-5
4711041F4033J
ref: 1-5
COVER,SIDE,R(BLACK)
€ 0.00
1-6
4711041F40YM6
ref: 1-6
COVER,SIDE,R(SILVER)
€ 0.00
1-7
4711041F40YV4
ref: 1-7
COVER,SIDE,R(GREEN)
€ 0.00
1-8
4711041F40YC3
ref: 1-8
COVER, FRAME RH (WHITE)
€ 0.00
2-1
4721141F0033J
ref: 2-1
47211-41F01-33J
COVER, FRAME LH (BLACK)
4721141F0033J
€ 130.50
2-2
4721141F00YM6
ref: 2-2
47211-41F01-YM6
COVER,SIDE,L(S
€ 109.50
2-3
4721141F00YV4
ref: 2-3
47211-41F01-YV4
COVER,SIDE,L(G
€ 33.00
2-4
4721141F00YC3
ref: 2-4
COVER, FRAME LH (WHITE)
€ 124.00
3
4716641F00
ref: 3
SHIELD,FRAME COVER
4716641F00
€ 7.50
4
9367680020
ref: 4
PAD,BALANCER UPPER,R
9367680020
€ 4.50
5
4713041F00
ref: 5
COVER,SIDE LWR,R
4713041F00
€ 115.00
6
4723141F00
ref: 6
COVER,SIDE LWR,L
4723141F00
€ 184.00
7
0916010123
ref: 7
WASHER(10.5X20X2.3)
0916010123
€ 2.00
8
0932008021
ref: 8
CUSHION
0932008021
€ 4.00
9
4714141F00019
ref: 9
47141-41F01-019
COVER SIDE,REA
€ 55.50
10
4724141F00019
ref: 10
COVER,SIDE RR,L
4724141F00019
€ 55.50
11
0913906126
ref: 11
SCREW(6X20)
0913906126
€ 4.00
12
0932008018
ref: 12
CUSHION
0932008018
€ 4.00
13
0932008028
ref: 13
CUSHION
0932008028
€ 2.50
14
0932009501
ref: 14
CUSHION
0932009501
€ 2.00
15
0932009026
ref: 15
09320-09045
CUSHION
0932009026
€ 4.00
16
9570007860
ref: 16
LOCK SET,COVER
9570007860
€ 76.00
17
0831610063
ref: 17
08316-1006B
NUT
0831610063
€ 2.50
18
0925009001
ref: 18
CAP(OD:14)
0925009001
€ 1.00
