CRANKCASE COVER
VL800Z VOLUSIA 2004 (K4) USA (E03)

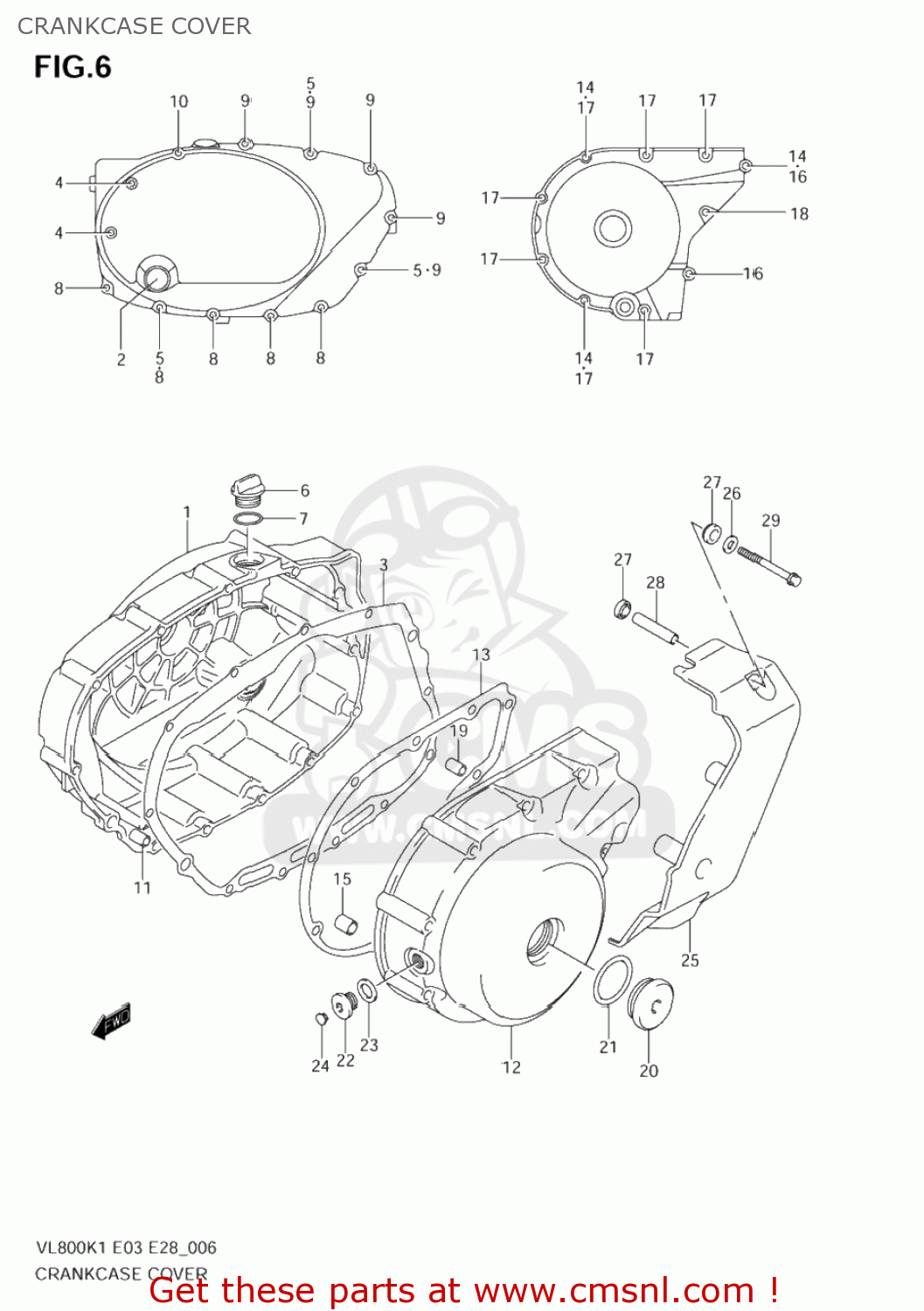

Crankcase cover diagram VL800Z VOLUSIA 2004 (K4) USA (E03)
CRANKCASE COVER VL800Z VOLUSIA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134041F00
ref: 1
COVER,CLUTCH
€ 281.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148241F00
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 15.50
4-1
0910306228
ref: 4-1
BOLT(6X105)
€ 4.00
4-2
0910306270
ref: 4-2
BOLT(6X105)
€ 2.50
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
€ 2.00
6-1
0925920007
ref: 6-1
PLUG(20X10)
€ 6.50
6-2
1197125D00
ref: 6-2
PLUG,ENGINE OIL FILLER
€ 5.50
7
0928017003
ref: 7
O RING(D:3.1,ID:16.8)
€ 2.00
8-1
0154706307
ref: 8-1
BOLT
€ 2.50
8-2
0910306213
ref: 8-2
BOLT(6X30)
€ 2.50
9-1
0154706507
ref: 9-1
BOLT
€ 2.50
9-2
0910306238
ref: 9-2
BOLT(6X50)
€ 2.50
10-1
0154706857
ref: 10-1
BOLT
€ 2.50
10-2
0910306226
ref: 10-2
BOLT(6X85)
€ 2.50
11
0421109189
ref: 11
PIN
€ 2.00
12
1135141F00
ref: 12
11351-41F10
COVER GENERATO
€ 315.50
13
1148341F00
ref: 13
GASKET,GENERATOR COVER (NAS)
€ 11.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
€ 2.00
15
0920611007
ref: 15
PIN(8.4X11X20)
€ 1.50
16-1
0154706407
ref: 16-1
BOLT
€ 2.50
16-2
0910306215
ref: 16-2
BOLT(6X40)
€ 2.00
17-1
0154706557
ref: 17-1
BOLT
€ 2.50
17-2
0910306216
ref: 17-2
BOLT(6X55)
€ 2.50
18-1
0154706857
ref: 18-1
BOLT
€ 2.50
18-2
0910306226
ref: 18-2
BOLT(6X85)
€ 2.50
19
0421109189
ref: 19
PIN
€ 2.00
20
0925936008
ref: 20
Chrome Crankshaft Plug
€ 8.50
21
0928033004
ref: 21
O RING(D:3.1,ID:32.7)
€ 2.50
22
0924814005
ref: 22
PLUG,14X12
€ 5.00
23
0916814002
ref: 23
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
24-1
0925008014
ref: 24-1
CAP(OD:12)
€ 3.50
24-2
0925008012
ref: 24-2
CAP(OD:12)
€ 2.00
25
1136141F00
ref: 25
COVER,SECONDARY DRIVE UNIT
€ 163.50
26
0916006125
ref: 26
WASHER(6.5X14X1.6)
€ 2.00
27
0916109005
ref: 27
WASHER(8.7X16X5)
€ 2.50
28
0918006280
ref: 28
SPACER(6.5X9X41.3)
€ 4.00
29-1
0154706557
ref: 29-1
BOLT
€ 2.50
29-2
0910306216
ref: 29-2
BOLT(6X55)
€ 2.50
