FRONT DAMPER (MODEL K1/K2/K3/K4)

VL800Z VOLUSIA 2004 (K4) USA (E03)

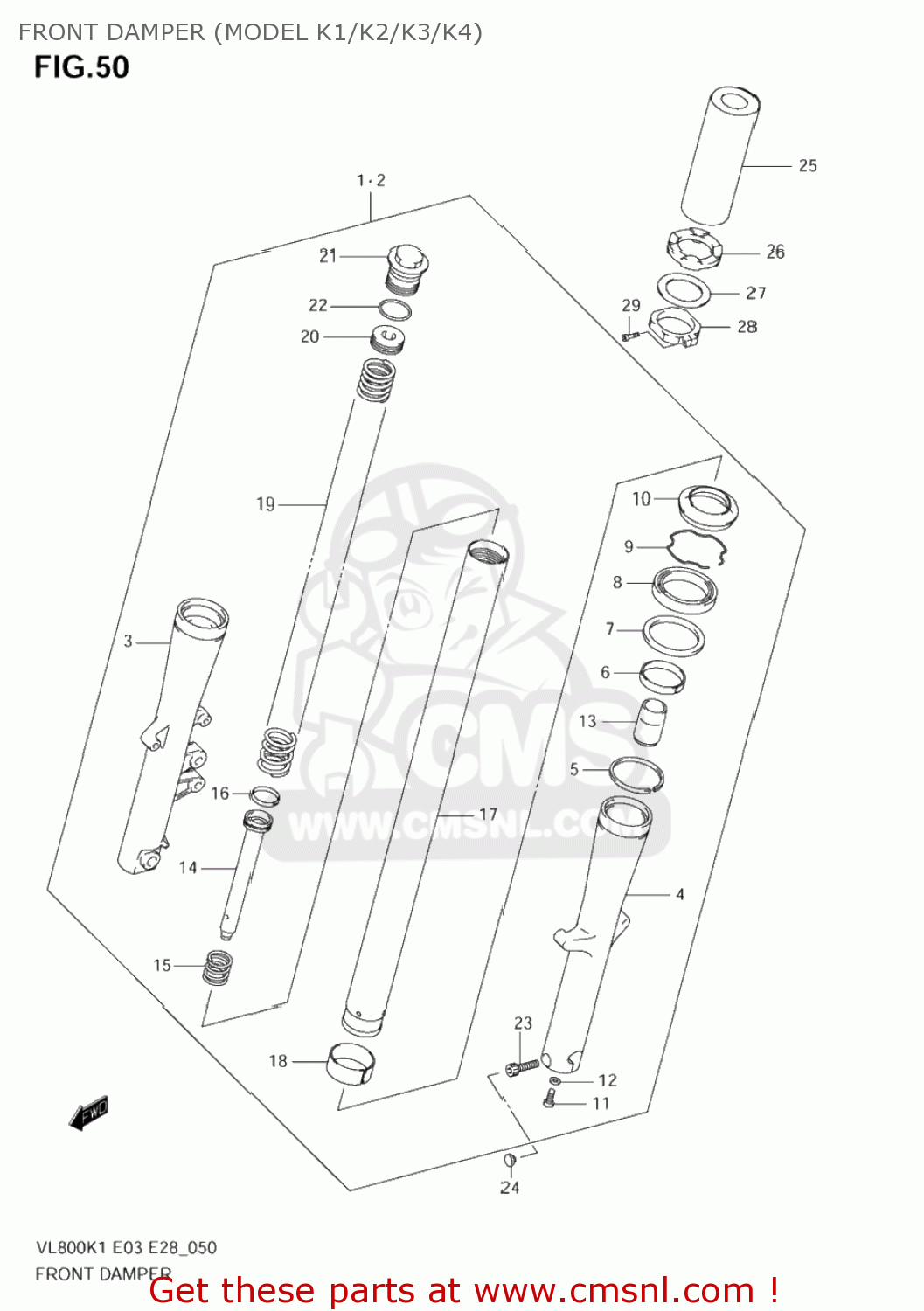

Front damper (model k1/k2/k3/k4) diagram VL800Z VOLUSIA 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110341F20
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,067.50

2

5110441F20
ref: 2

DAMPER ASSY,FR FORK,L

€ 807.00

3

5113141F20
ref: 3

TUBE,OUTER,R

€ 312.50

4

5114141F20
ref: 4

TUBE,OUTER,L

€ 312.50

5

5146941F21
ref: 5

GUIDE,CASE

€ 11.00

6

5115211D60
ref: 6

BUSH,GUIDE

€ 12.00

7

5116838B00
ref: 7

SPACER,SEAL

€ 5.00

8

5115308D00
ref: 8

SEAL,OIL

€ 15.50

9

5155638B00
ref: 9

CIRCLIP,FORK OIL SEAL

€ 4.50

10

5157147D50
ref: 10

SEAL,DUST

€ 18.00

11

5114742AA0
ref: 11
51147-06F10

BOLT,CENTER (8X18)

€ 3.00

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

5119510F00
ref: 13

PIECE,OIL LOCK

€ 18.50

14

5114610F00
ref: 14

SEAT,PIPE

€ 71.50

15

5117710F00
ref: 15

SPRING,REBOUND

€ 7.00

16

5119647D00
ref: 16

RING,PISTON

€ 6.00

17

5111041F20
ref: 17

TUBE,INNER

€ 434.00

18

5112110F00
ref: 18
51121-42E00

BUSHING,SLIDE

€ 15.50

19

5117141F20
ref: 19

SPRING,FR

€ 81.00

20

5135310F00
ref: 20

BOLT,FORK INNER

€ 17.50

21

5135141F20
ref: 21

BOLT,FORK

€ 66.50

22

5111738B00
ref: 22

O RING

€ 4.00

23

0713010357
ref: 23

BOLT

€ 3.50

24

0925008014
ref: 24

CAP(OD:12)

€ 3.50

25

5146441F20
ref: 25
51464-41F21

CASE,UNDER

€ 84.00

26

5146810F00
ref: 26

SEAT,RUBBER

€ 13.50

27

5146710F00
ref: 27

WASHER

€ 8.00

28

5146541F20
ref: 28

SPACER

€ 34.00

29

5146610F00
ref: 29

BOLT

€ 4.50
