FUEL TANK (MODEL K1)

VL800Z VOLUSIA 2004 (K4) USA (E03)

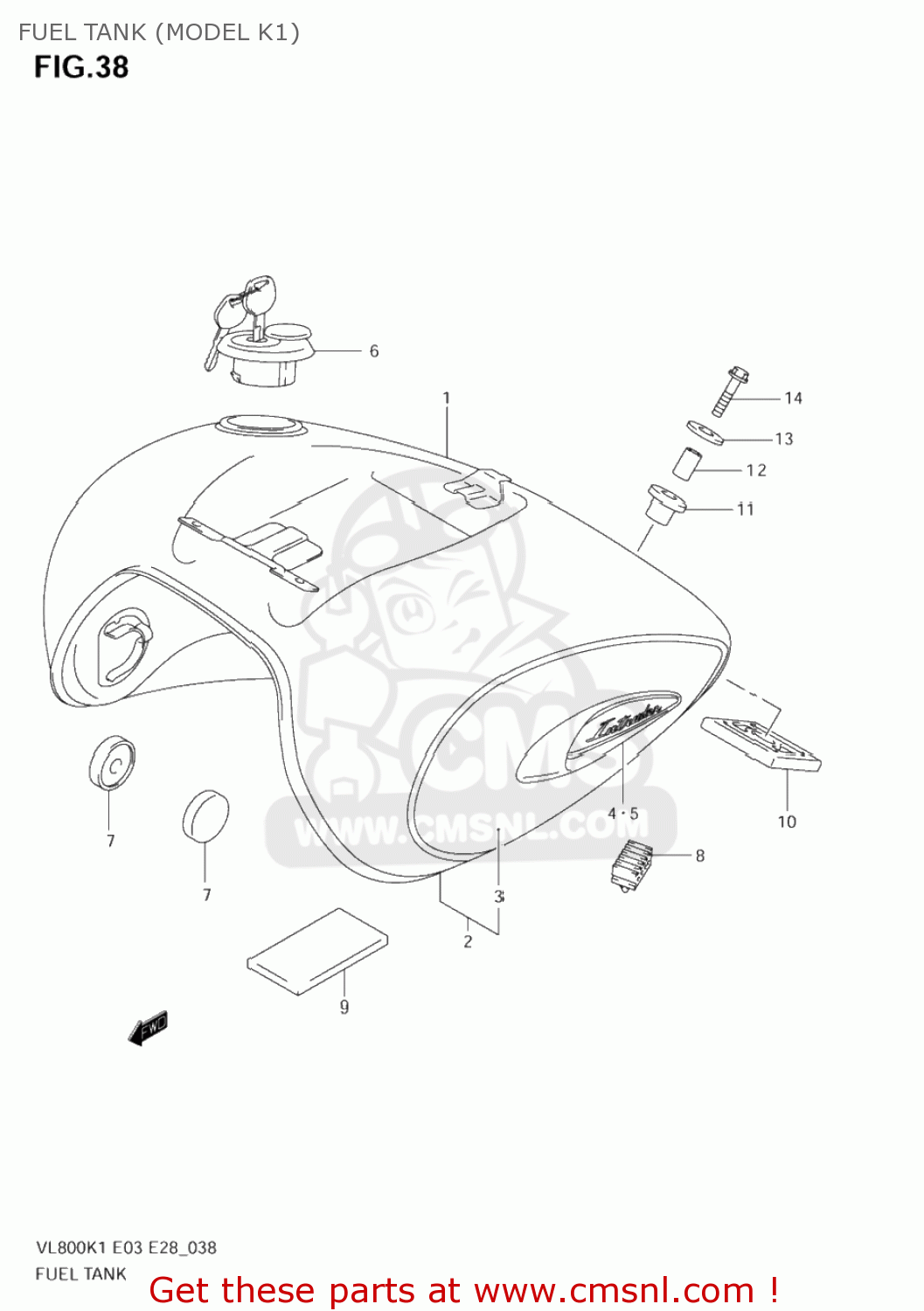

Fuel tank (model k1) diagram VL800Z VOLUSIA 2004 (K4) USA (E03)

FUEL TANK (MODEL K1) VL800Z VOLUSIA 2004 (K4) USA (E03)

FUEL TANK (MODEL K1) VL800Z VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410041F0033J
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410041F1033J
ref: 1-2

TANK ASSY, FUEL (BLACK) E33

€ 0.00

2-1

4410041F30FP3
ref: 2-1

TANK ASSY,FUEL

€ 488.00

2-2

4410041F30FP4
ref: 2-2

TANK ASSY,FUEL

€ 0.00

2-3

4410041F30FP5
ref: 2-3

TANK ASSY,FUEL

€ 0.00

2-4

4410041F40FP3
ref: 2-4

TANK ASSY,FUEL

€ 0.00

2-5

4410041F40FP4
ref: 2-5

TANK ASSY, FUEL

€ 0.00

2-6

4410041F40FP5
ref: 2-6

TANK ASSY,FUEL

€ 0.00

3-1

6811041F00GC1
ref: 3-1
68110-41F01-GC1

STRIPINGSET

€ 179.50

3-2

6811041F00GC2
ref: 3-2
68110-41F01-GC2

TAPE SET, FUEL TANK

€ 183.50

3-3

6811041F00GC3
ref: 3-3

STRIPINGSET

€ 197.00

4

6811141F00
ref: 4

EMBLEM,FUEL TANK,R

€ 50.00

5

6812141F00
ref: 5

EMBLEM,FUEL TANK,L

€ 50.00

6-1

4420041810
ref: 6-1

CAP SET,FUEL TANK

€ 153.00

6-2

4420041820
ref: 6-2

CAP SET,FUEL TANK

€ 131.50

7

0932910007
ref: 7

CUSHION

€ 3.00

8

4514931300
ref: 8

CUSHION,SEAT(40X20X15)

€ 2.00

9

4454541F00
ref: 9

CUSHION,FUEL TANK

€ 7.00

10

4454241F00
ref: 10

CUSHION,FUEL TANK RR LWR

€ 8.00

11

4454141F00
ref: 11
44541-41F01

CUSHION,FUEL T

€ 6.50

12

0918008057
ref: 12

SPACER (8.2X12.5X23.5)

€ 2.00

13

0916008140
ref: 13
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

14

0155008353
ref: 14
01550-0835A

BOLT

€ 3.50
