WIRING HARNESS (VL800K5)

VL800Z VOLUSIA 2004 (K4) USA (E03)

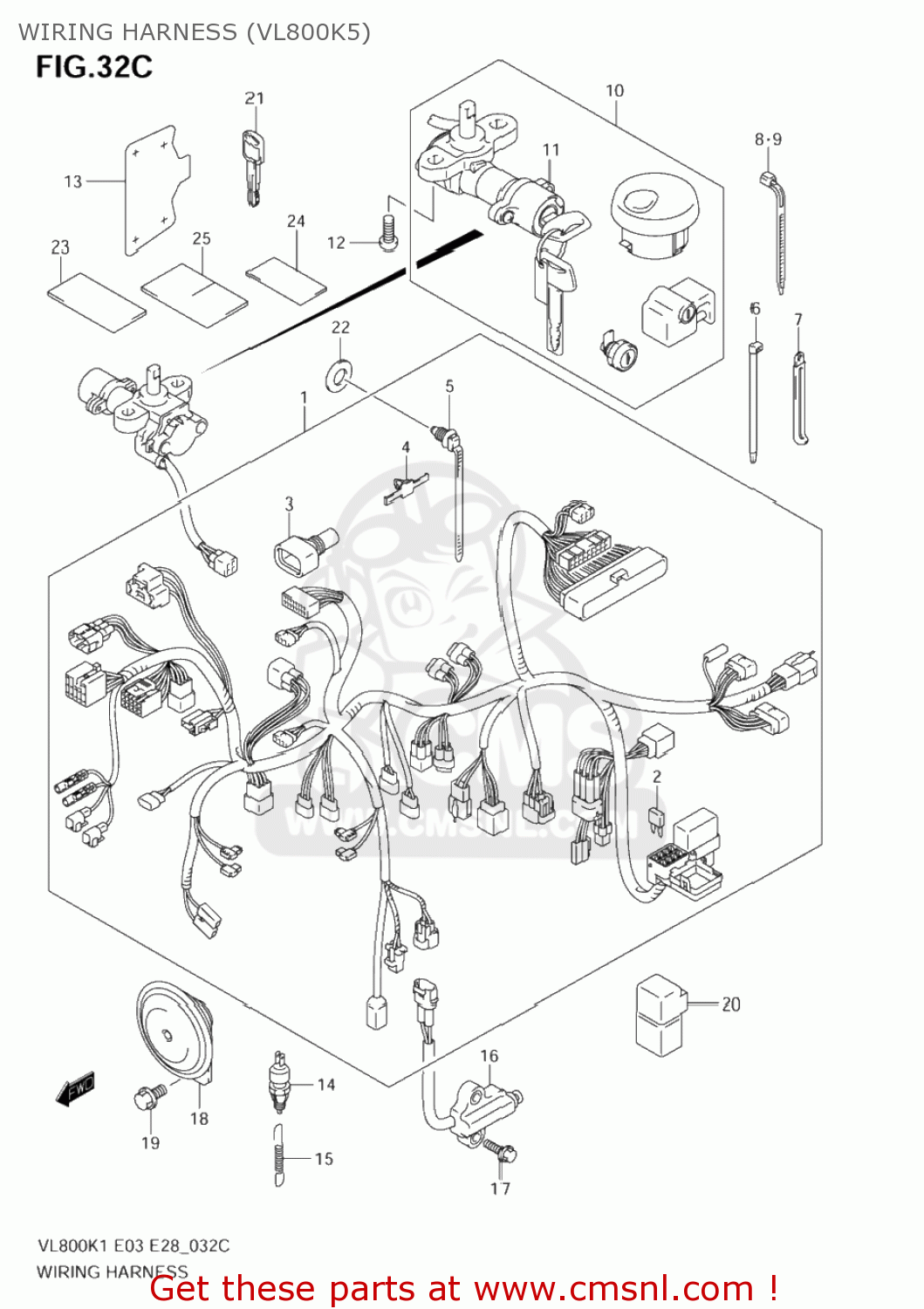

Wiring harness (vl800k5) diagram VL800Z VOLUSIA 2004 (K4) USA (E03)

WIRING HARNESS (VL800K5) VL800Z VOLUSIA 2004 (K4) USA (E03)

WIRING HARNESS (VL800K5) VL800Z VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661041FE0
ref: 1

HARNESS,WIRING

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661833E00
ref: 3

COVER,SPEEDOMETER COUPLER

€ 5.50

4

0940705410
ref: 4

CLAMP

€ 4.00

5

0940717403
ref: 5

CLAMP(L:154)

€ 5.50

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

7-1

0940406433
ref: 7-1

CLAMP(L:80)

€ 3.00

7-2

0940406435
ref: 7-2

CLAMP(L:135)

€ 2.50

8

0940718402
ref: 8

CLAMP(L:165)

€ 2.50

9

0940719401
ref: 9

CLAMP(L:190)

€ 2.00

10-1

3710041850
ref: 10-1

LOCK SET

€ 300.00

10-2

3710041860
ref: 10-2

LOCK SET

€ 0.00

11

3710041F50
ref: 11

LOCK ASSY,STEERING

€ 185.00

12

0913908016
ref: 12

BOLT(8X20)

€ 3.50

13

3718741F10
ref: 13

PROTECTOR,IGNITION SWITCH

€ 12.00

14

3774024A00
ref: 14

SWITCH ASSY,STOP LAMP

€ 20.50

15

0944306073
ref: 15

SPRING

€ 3.00

16

3784041F00
ref: 16

SWITCH ASSY,SIDE STAND

€ 65.00

17

0155006203
ref: 17
01550-0620A

BOLT

€ 2.50

18

3850041F10
ref: 18

HORN ASSY

€ 80.00

19

0155008123
ref: 19
01550-0812A

BOLT

€ 3.50

20

3874024X50
ref: 20

RELAY ASSY

€ 37.50

21

3714641F10
ref: 21

KEY,BLANK

€ 26.00

22

0916006079
ref: 22
09160-06052

WASHER(6.5X16X1.2)

€ 2.00

23

3661116G00
ref: 23

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

24

3692008D10
ref: 24

PROTECTOR(30X30X3)

€ 2.00

25

3692033C00
ref: 25

PROTECTOR,HARNESS(30X50X3)

€ 2.00
