HEADLAMP HOUSING (MODEL K1/K2/K3/K4)

VL800Z VOLUSIA 2004 (K4) USA (E03)

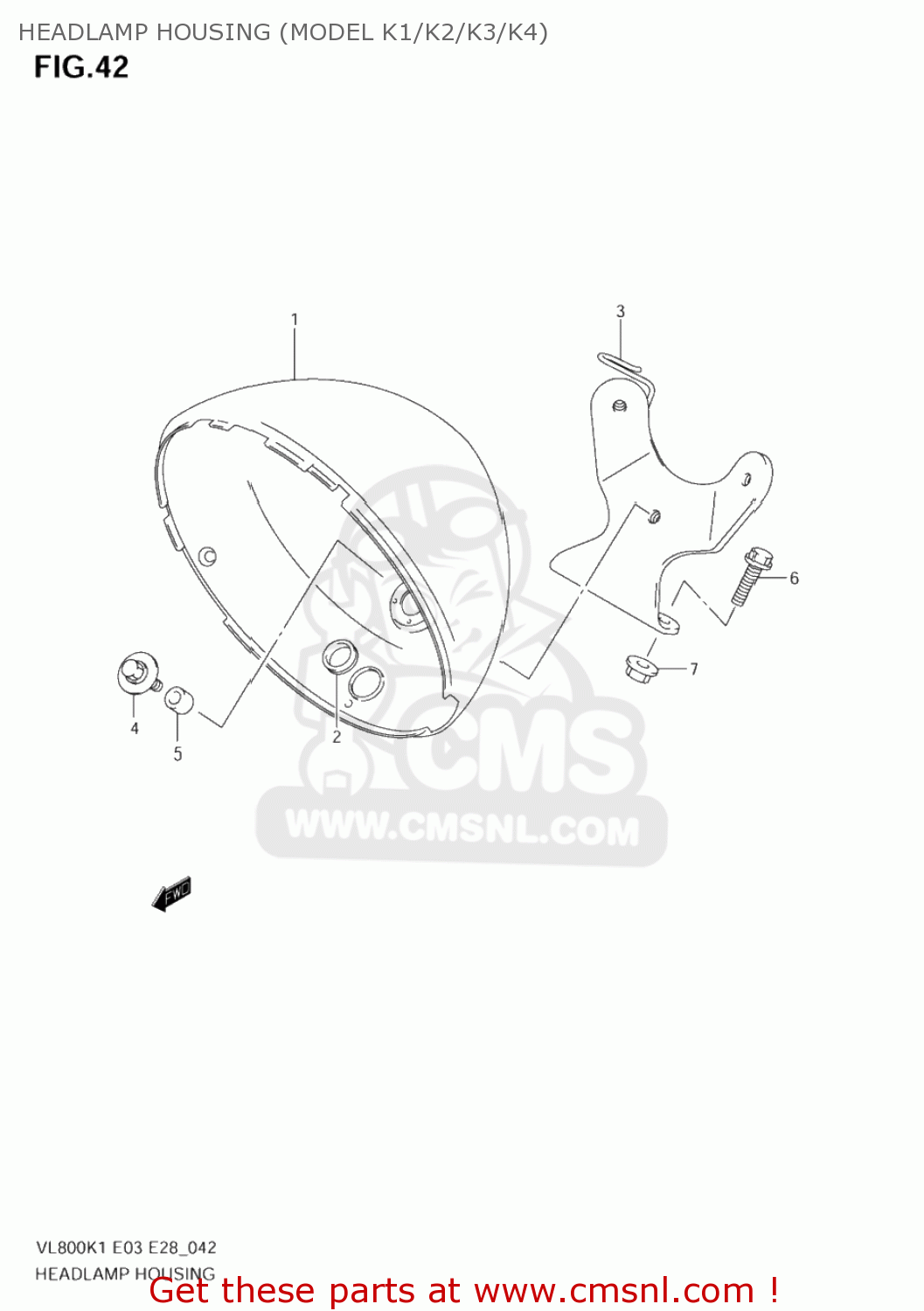

Headlamp housing (model k1/k2/k3/k4) diagram VL800Z VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181010F00
ref: 1

HOUSING,HEADLAMP

€ 205.00

5181741F00
ref: 2

MOLDING,HOUSING

€ 7.50

3-1

5185041F00
ref: 3-1
51850-41F01

BRACKET COMP,H

€ 38.00

3-2

5185041F01
ref: 3-2

BRACKET,HEADLAMP HOUSING

€ 38.00

0911606147
ref: 4

BOLT(6X25)

€ 4.00

0918006076
ref: 5

SPACER(6.8X12X11)

€ 3.00

0155008253
ref: 6
01550-0825A

BOLT

€ 2.50

0831931083
ref: 7
08319-3108A

NUT

€ 2.50
