TURNSIGNAL FRONT LAMP (MODEL K1/K2/K3)

VL800Z VOLUSIA 2004 (K4) USA (E03)

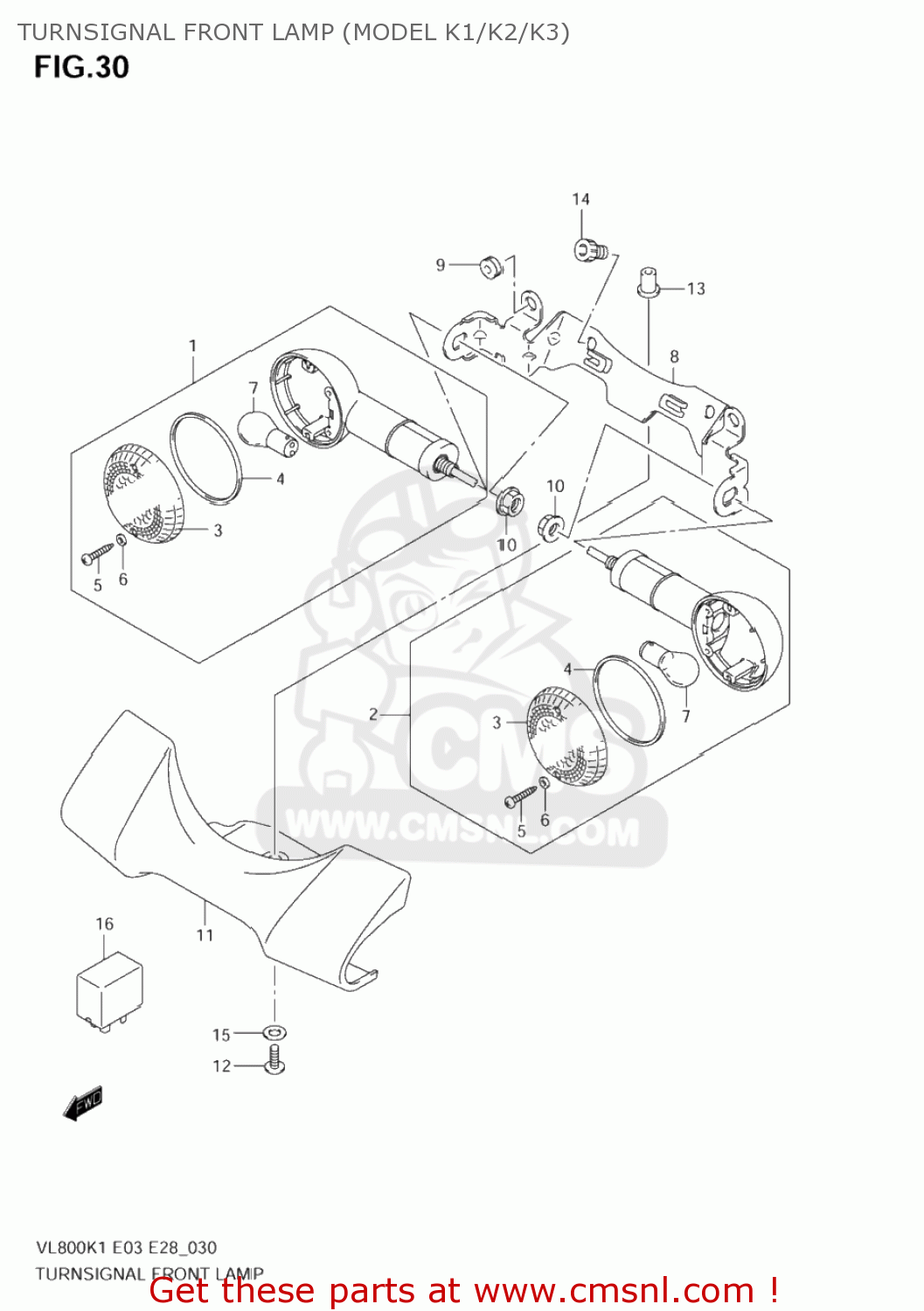

Turnsignal front lamp (model k1/k2/k3) diagram VL800Z VOLUSIA 2004 (K4) USA (E03)

TURNSIGNAL FRONT LAMP (MODEL K1/K2/K3) VL800Z VOLUSIA 2004 (K4) USA (E03)

TURNSIGNAL FRONT LAMP (MODEL K1/K2/K3) VL800Z VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560141F30
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 0.00

2

3560241F30
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 0.00

3

3561238A30
ref: 3

LENS

€ 16.50

4

3561338A00
ref: 4

GASKET (NAS)

€ 11.50

5

0321104253
ref: 5
03211-0425B

SCREW

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112083
ref: 7
09471-12128

BULB(12V21/5W)

€ 6.00

8

3561641F00
ref: 8

BRACKET

€ 79.50

9

0932006016
ref: 9

CUSHION

€ 4.50

10

0831620103
ref: 10
08316-2010B

NUT

€ 3.50

11

3564141F00
ref: 11
35641-41F02

COVER,FRONT TU

€ 52.50

12

0913905042
ref: 12

SCREW(5X16)

€ 2.50

13

0915905019
ref: 13

NUT

€ 5.50

14

0713008123
ref: 14
07130-0812A

PLUG

€ 2.50

15

0916005048
ref: 15

WASHER(5.5X14X1.2)

€ 2.00

16

3861003F00
ref: 16

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
