WIRING HARNESS (VL800K3/ZK3)

VL800Z VOLUSIA 2004 (K4) USA (E03)

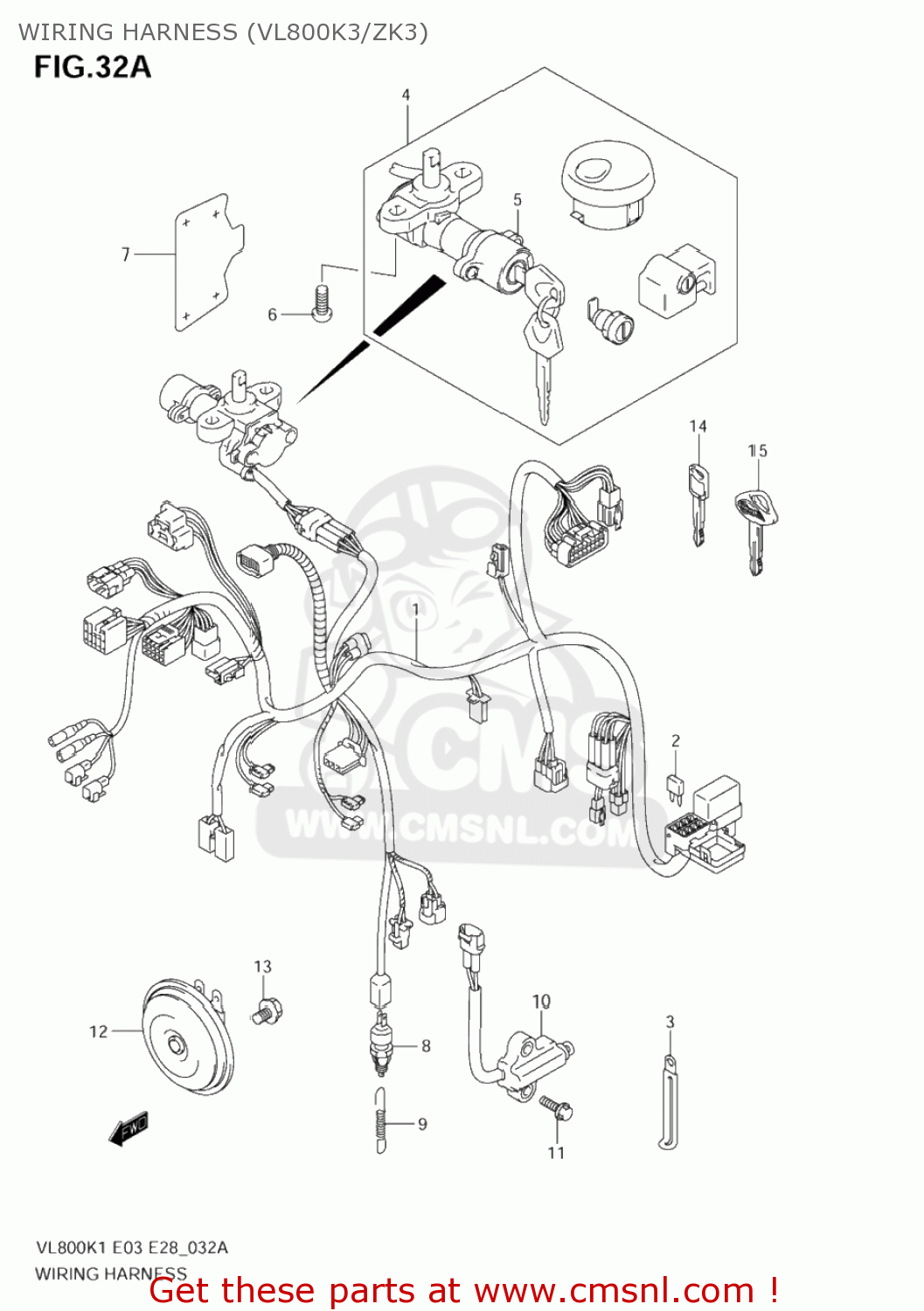

Wiring harness (vl800k3/zk3) diagram VL800Z VOLUSIA 2004 (K4) USA (E03)

WIRING HARNESS (VL800K3/ZK3) VL800Z VOLUSIA 2004 (K4) USA (E03)
WIRING HARNESS (VL800K3/ZK3) VL800Z VOLUSIA 2004 (K4) USA (E03)
WIRING HARNESS (VL800K3/ZK3) VL800Z VOLUSIA 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661041F80
ref: 1
HARNESS,WIRING
€ 0.00
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
0940406433
ref: 3
CLAMP(L:80)
0940406433
€ 3.00
4-1
3700041820
ref: 4-1
LOCK SET
3700041820
€ 544.50
4-2
3700041880
ref: 4-2
LOCK SET
€ 317.00
4-3
3700041830
ref: 4-3
LOCK SET
€ 0.00
4-4
3700041890
ref: 4-4
LOCK SET
€ 0.00
5-1
3710041F10
ref: 5-1
LOCK ASSY,STEERING
3710041F10
€ 171.00
5-2
3710041F30
ref: 5-2
LOCK ASSY,STEERING
€ 171.50
6
0913908016
ref: 6
BOLT(8X20)
0913908016
€ 3.50
7
3718741F00
ref: 7
PROTECTOR,IGNITION SWITCH
€ 12.00
8
3774024A00
ref: 8
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
9
0944306073
ref: 9
SPRING
0944306073
€ 3.00
10
3784041F00
ref: 10
SWITCH ASSY,SIDE STAND
3784041F00
€ 65.00
11
0155006203
ref: 11
01550-0620A
BOLT
0155006203
€ 2.50
12
3850041F00
ref: 12
HORN ASSY
€ 83.50
13
0155008123
ref: 13
01550-0812A
BOLT
0155008123
€ 3.50
14
3714641F10
ref: 14
KEY,BLANK
3714641F10
€ 26.00
15
3714641F30
ref: 15
KEY,BLANK(VOLUSIA)
€ 57.00
