Buy Suzuki VS Parts Online


CLUTCH CYLINDER (SEE NOTE)

VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

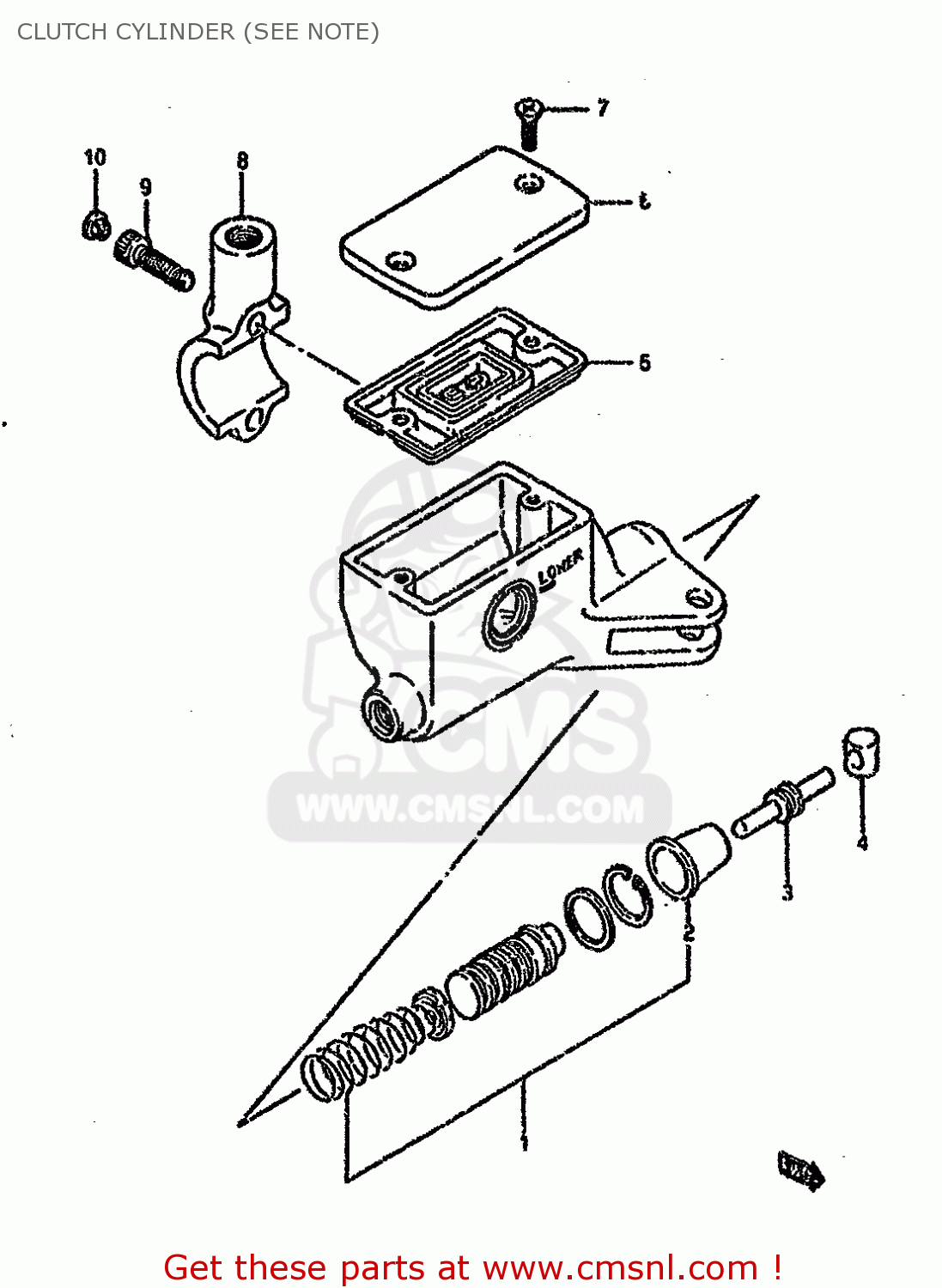

Clutch cylinder (see note) diagram VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

CLUTCH CYLINDER (SEE NOTE) VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)
CLUTCH CYLINDER (SEE NOTE) VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)
CLUTCH CYLINDER (SEE NOTE) VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)
prices are in EUR
ref
part #
description
quantity
0
5980038B10
ref: 0
VS1400GLPH/GLPJ
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 428.00
0
5980038B30
ref: 0
MODEL K, VS1400GLPL/
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 428.00
1
5980008810
ref: 1
PISTON & CUP SET
5980008810
€ 36.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5987138A00
ref: 3
PUSH ROD
5987138A00
€ 6.50
4
5989208A00
ref: 4
BUSH
5989208A00
€ 5.50
5
5966749460
ref: 5
5966749460
6-1
5966938B00
ref: 6-1
VS1400GLPH/GLPJ
CAP
5966938B00
€ 67.50
6-2
5966938B10
ref: 6-2
MODEL K, VS1400GLPL/
CAP
5966938B10
€ 67.50
7
0212204123
ref: 7
SCREW
0212204123
€ 2.00
8
5967138A00
ref: 8
HOLDER
5967138A00
€ 37.50
9
0713006207
ref: 9
BOLT
0713006207
€ 3.50
10
0925005008
ref: 10
CAP(OD:10)
0925005008
€ 5.00
