CYLINDER HEAD (REAR)

VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

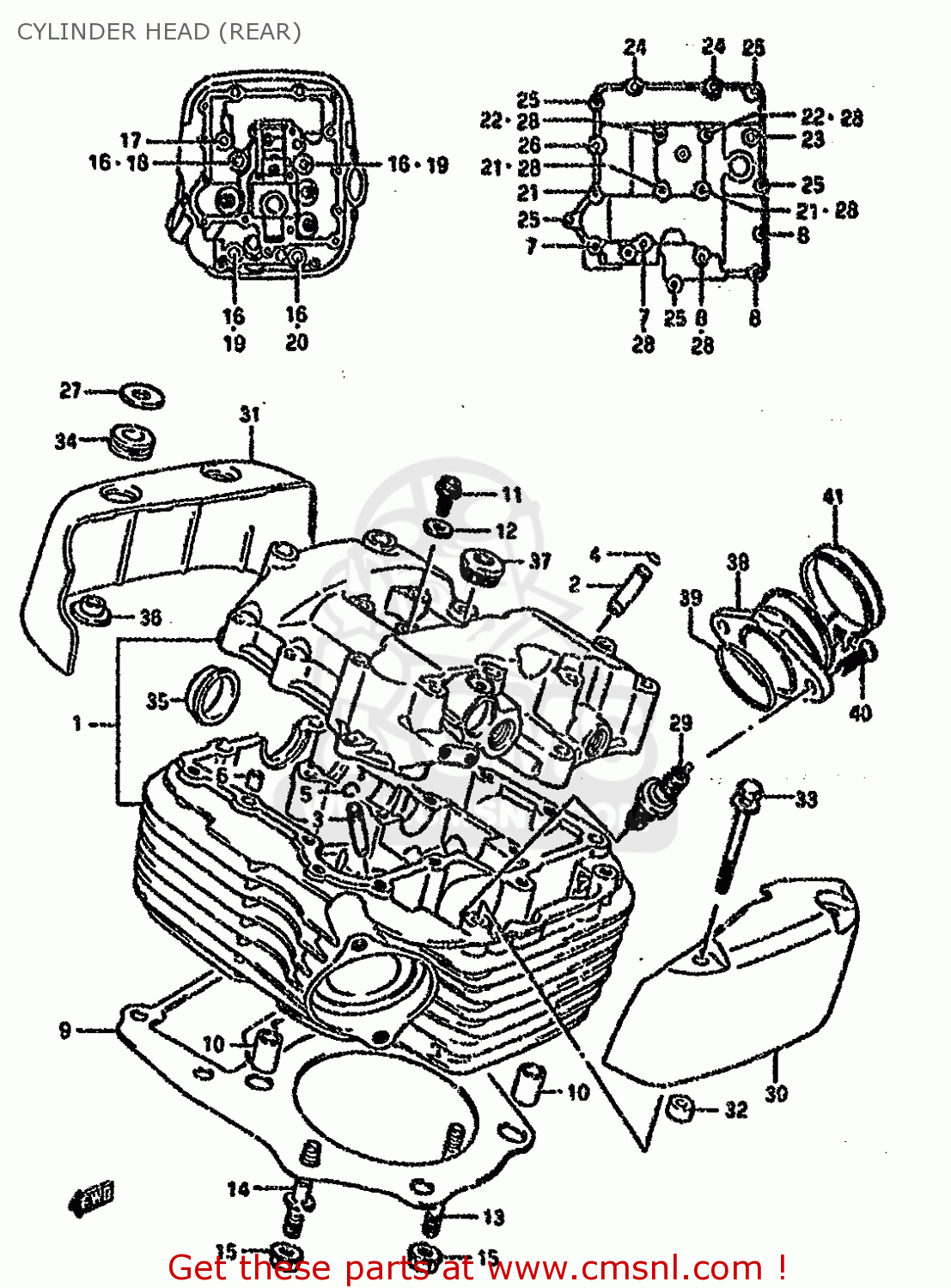

Cylinder head (rear) diagram VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

CYLINDER HEAD (REAR) VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)
CYLINDER HEAD (REAR) VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)
CYLINDER HEAD (REAR) VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
1110338B00
ref: 1-1
.MODEL J/J/K/L/M/N
HEAD ASSEMBLY,CYLINDER,REAR
€ 834.50
1-2
1110338B20
ref: 1-2
MODEL P/R/S -11103-3
HEAD ASSEMBLY,CYLINDER,REAR
€ 834.50
2
1111538B70
ref: 2
GUIDE,INTAKE VALVE
1111538B70
€ 18.50
3
1111545740
ref: 3
GUIDE,INTAKE VALVE
1111545740
€ 25.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0938110003
ref: 5
RING,SNAP
0938110003
€ 2.50
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7-1
0910306111
ref: 7-1
MODEL H/J/K/L/M/N/P
BOLT
€ 1.50
7-2
0910306064
ref: 7-2
MODEL R/S
BOLT(6X60)
0910306064
€ 2.50
8
0910306102
ref: 8
BOLT(6X55)
0910306102
€ 2.50
9
1114238B00
ref: 9
GASKET,CYLINDER HEAD RR (NAS)
1114238B00
€ 54.50
10-1
0920613001
ref: 10-1
PIN
0920613001
€ 2.50
10-2
0421113189
ref: 10-2
PIN
0421113189
€ 2.50
11-1
0712006125
ref: 11-1
MODEL H/J/K/L/M/N/P
BOLT
€ 3.50
11-2
0712006127
ref: 11-2
MODEL R/S
BOLT
0712006127
€ 3.00
12
0916806018
ref: 12
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
13
0910808142
ref: 13
BOLT,STUD
0910808142
€ 3.00
14
0910808205
ref: 14
BOLT,STUD
0910808205
€ 10.50
15
0831616087
ref: 15
NUT
€ 0.00
16
0916010039
ref: 16
WASHER(10.5X22X2.3)
0916010039
€ 2.50
17
0910308181
ref: 17
BOLT(8X57)
0910308181
€ 5.00
18
0910310178
ref: 18
BOLT(10X180)
0910310178
€ 12.50
19
0910310179
ref: 19
BOLT(10X190)
0910310179
€ 12.50
20
0910310181
ref: 20
BOLT(10X215)
0910310181
€ 17.50
21
0910306101
ref: 21
BOLT(6X50)
0910306101
€ 2.00
22
0910306112
ref: 22
BOLT(6X45)
0910306112
€ 2.00
23
0910308086
ref: 23
BOLT(8X130)
€ 4.50
24
0910308213
ref: 24
BOLT(8X268)
0910308213
€ 22.50
25
0155006307
ref: 25
BOLT
0155006307
€ 2.00
26
0155006357
ref: 26
BOLT
0155006357
€ 2.50
27
0916008098
ref: 27
WASHER (8.2X24X1.6)
€ 2.00
28
0916806023
ref: 28
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
29-1
0948200334
ref: 29-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
29-2
0948200335111
ref: 29-2
SPARK PLUG X24EPR-U9
€ 4.00
29-3
0948200352
ref: 29-3
OPT
SPARK PLUG DP7EA-9
€ 4.00
29-4
0948200353111
ref: 29-4
OPT
SPARK PLUG X22EP-U9
€ 0.00
29-5
0948200328
ref: 29-5
OPT
SPARK PLUG DP9EA-9
0948200328
€ 4.00
29-6
0948200329111
ref: 29-6
OPT
SPARK PLUG X27EP-U9
€ 4.00
29-7
0948200354
ref: 29-7
OPT
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
29-8
0948200355111
ref: 29-8
OPT
SPARK PLUG X22EPR-U9
€ 4.00
29-9
0948200330
ref: 29-9
OPT
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
29-10
0948200331111
ref: 29-10
OPT
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
30
1117338B00
ref: 30
CAP,CYLINDER HEAD COVER RL
1117338B00
€ 118.00
31
1117438B00
ref: 31
CAP,CYLINDER HEAD COVER RR
1117438B00
€ 146.50
32
1127324B00
ref: 32
CUSHION,R CAP
1127324B00
€ 4.00
33
0121406607
ref: 33
BOLT
€ 3.50
34
0932013015
ref: 34
CUSHION
0932013015
€ 3.00
35
0924130008
ref: 35
PLUG(OD:30)
0924130008
€ 7.00
36
0930108007
ref: 36
BUSH
0930108007
€ 4.00
37-1
0924822002
ref: 37-1
MODEL H/J/K/L/M/N/P
PLUG(22X11)
0924822002
€ 9.00
37-2
0924822004
ref: 37-2
MODEL R/S
PLUG,22X11
0924822004
€ 9.50
38
1310238B00
ref: 38
-13120-38800
PIPE ASSEMBLY,INTAKE,REAR
€ 40.00
39
0928040012
ref: 39
O-RING (D:1.9 ID:40.7)
0928040012
€ 10.50
40-1
0212206205
ref: 40-1
MODEL H/J/K/L/M/N/P
SCREW
€ 2.00
40-2
0212206203
ref: 40-2
MODEL R/S
SCREW
0212206203
€ 2.00
41-1
1317005A00
ref: 41-1
MODEL H/J/K/L/M/N/P
CLAMP,PIPE
€ 9.00
41-2
0940252501
ref: 41-2
MODEL R/S
CLAMP
0940252501
€ 9.00
